Materials and Special Tools

REQUIRED

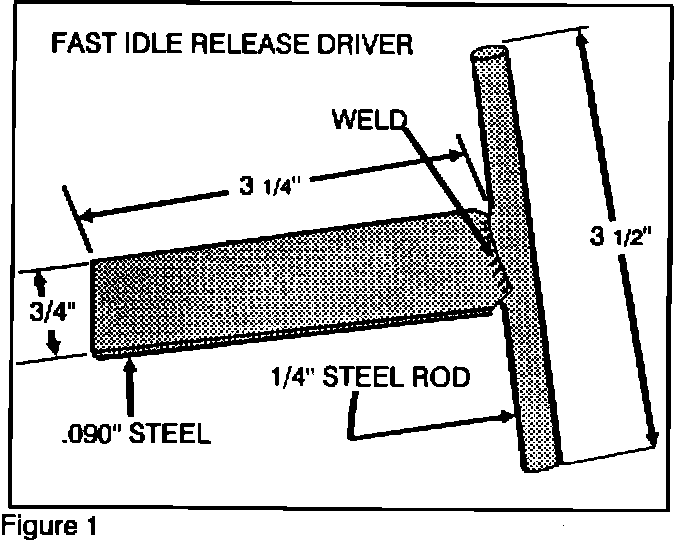

* Fast Idle Release Driver.

Note:
This special tool was included with bulletin EMR-89-001. In the event that the tool has been misplaced, see Figure 1 for make-up specifications.

* Carburetor spray cleaner.

* Exhaust emission analyzer.

* Tachometer.

* Anti-seize compound.

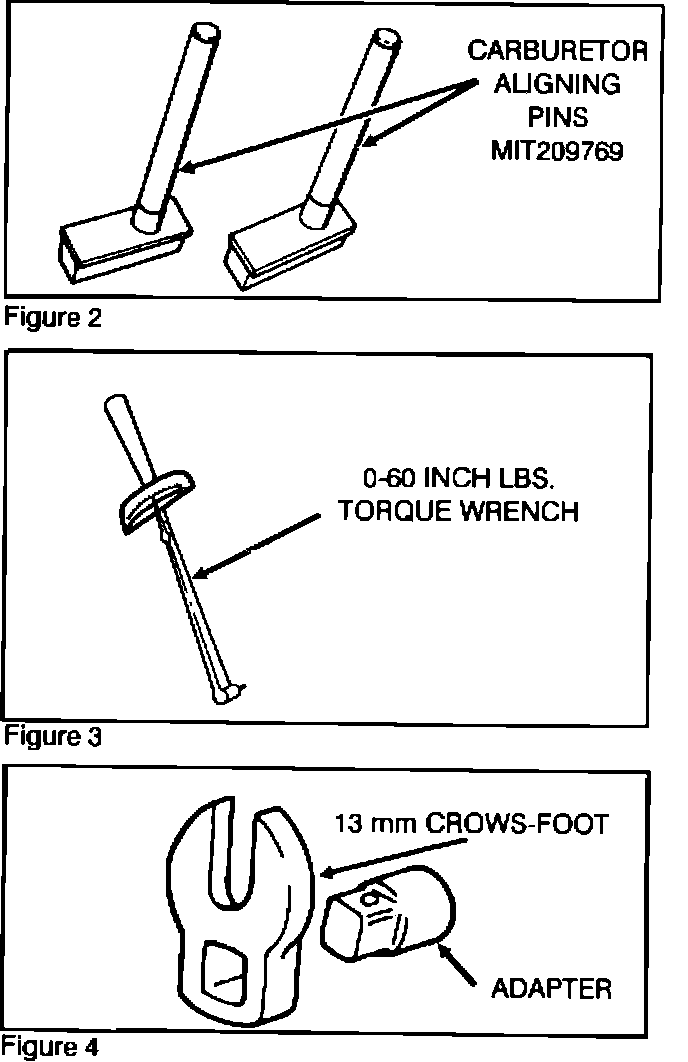

* MIT209769 - Carburetor aligning pins (Figure 2).

* 0-60 INCH lbs. torque wrench (Figure 3).

* 13 mm crows-foot and adapter (Figure 4).





* Round brass brush (Figure 5)
Note:
This brush is similar to ones used for firearm barrel cleaning.

* Penetrating oil.

* Timing light.

* Crocus cloth.
