Home >> Mitsubishi >> 1987 >> Galant L4-2350cc 2.4L SOHC >> Repair and Diagnosis >> Cruise Control >> Cruise Control Servo >> Locations

Cruise Control Servo: Locations

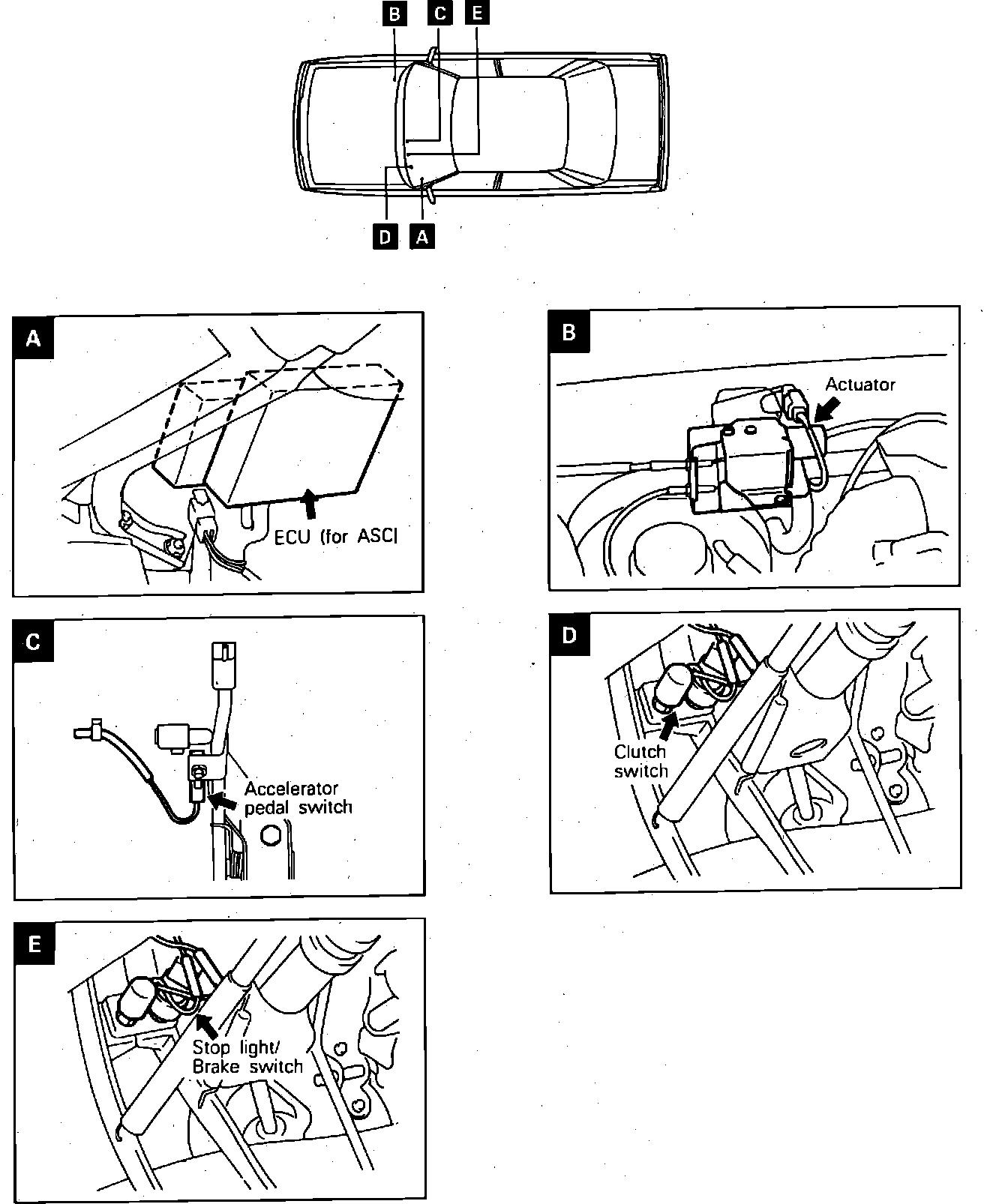

Speed Control (ASC) Component Locations.:




RH Corner Of Engine Compartment

Applicable to: 1987 Galant
