Galant L4-2350cc 2.4L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diode
>>
Locations
>>
Defogger Diode
Defogger Diode

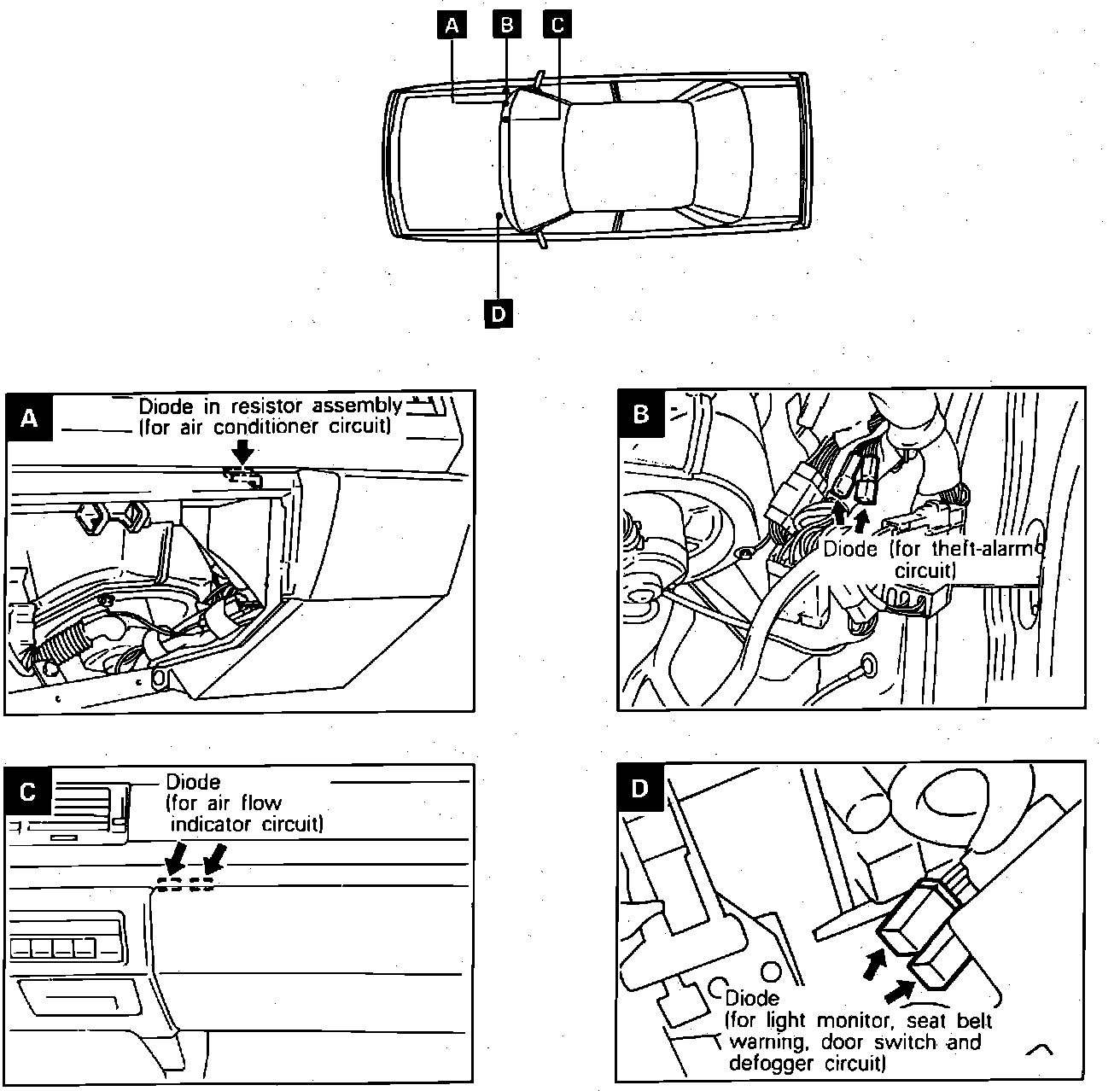

Diode Locations.:
LH Side Of Cowl
Applicable to: 1987 Galant
