Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
1987
>>
Galant L4-2350cc 2.4L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Distributor
>>
Service and Repair
>>
Distributor Replacement
Distributor Replacement

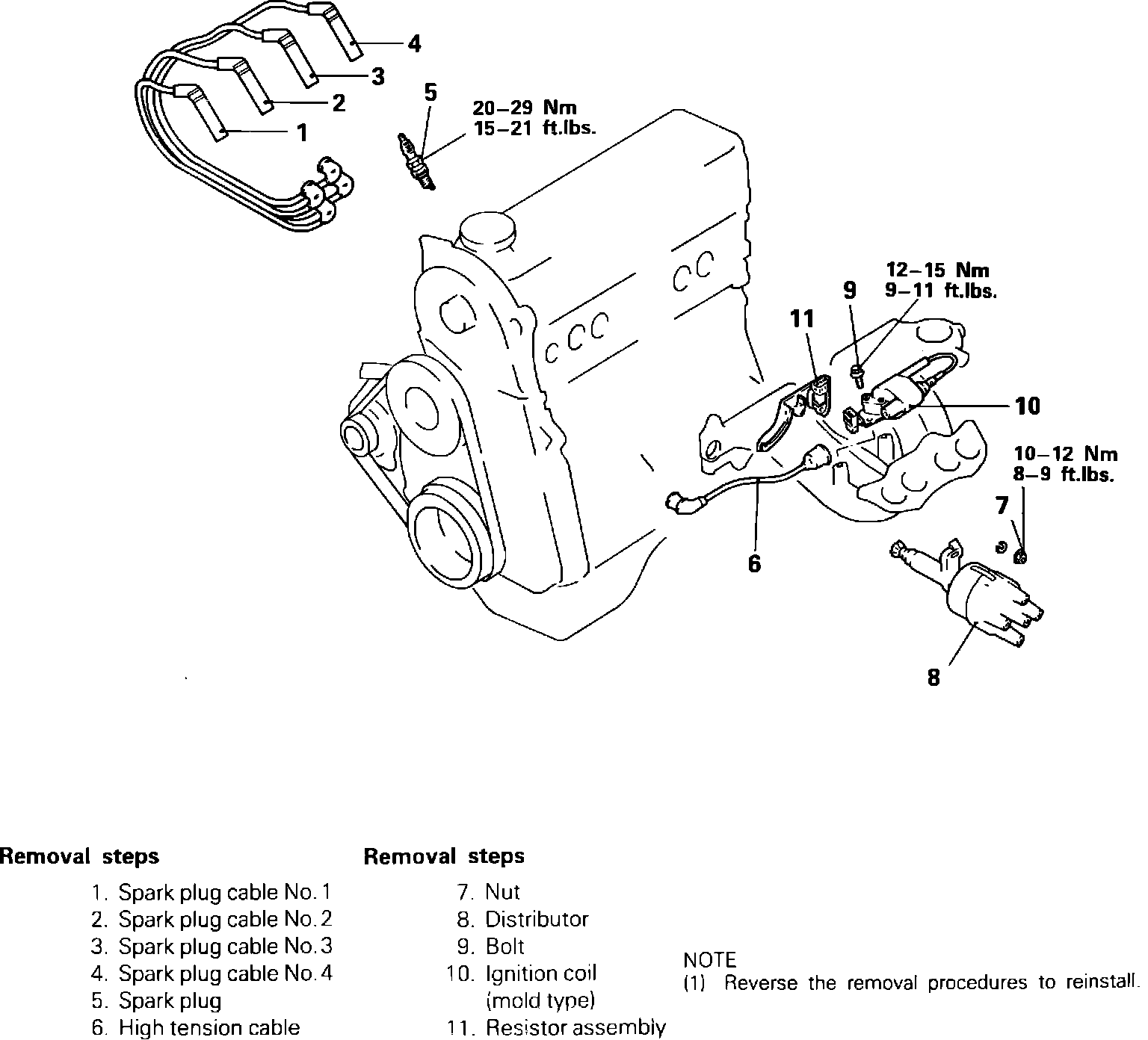

Fig. 16 Distributor replacement.:
