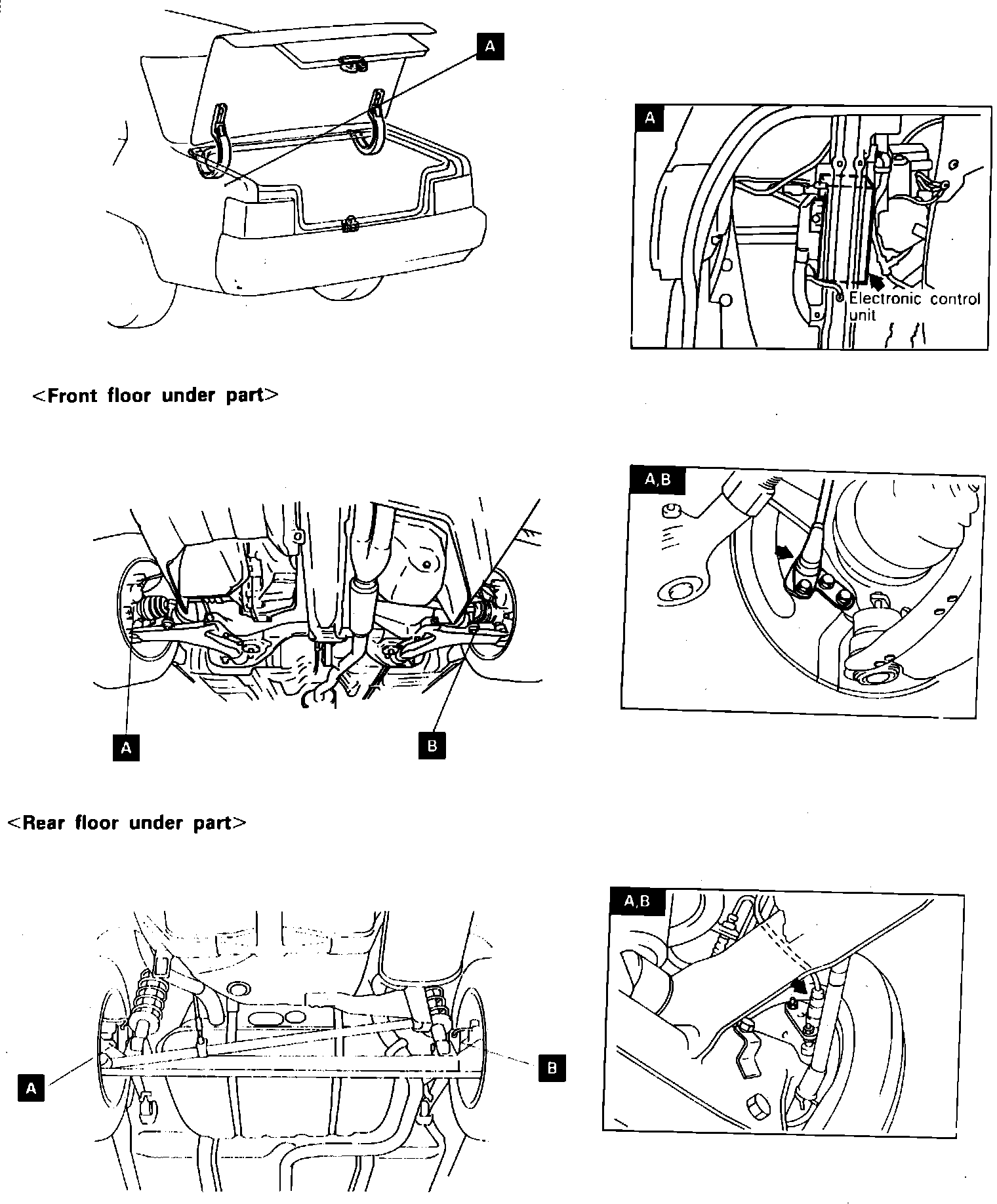

Electronic Brake Control Module: Locations

A.:

A.:

LH Inner Quarter Panel

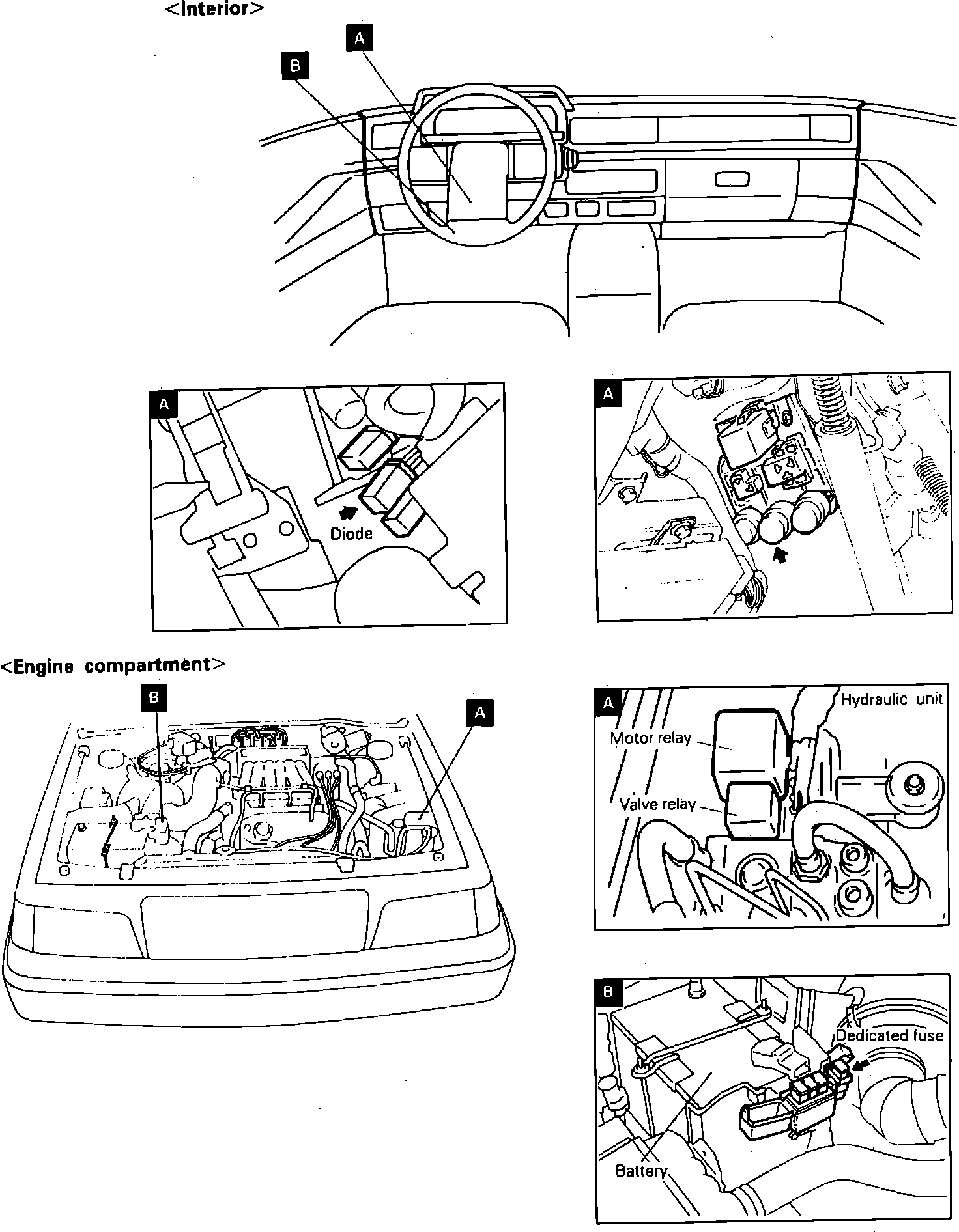

Applicable to: B.S. System Component Locations (Part 1 Of 2). 1988 Galant
