M/T Technical Data

KM210A 5-spd M/T, Clutch Dimensions:

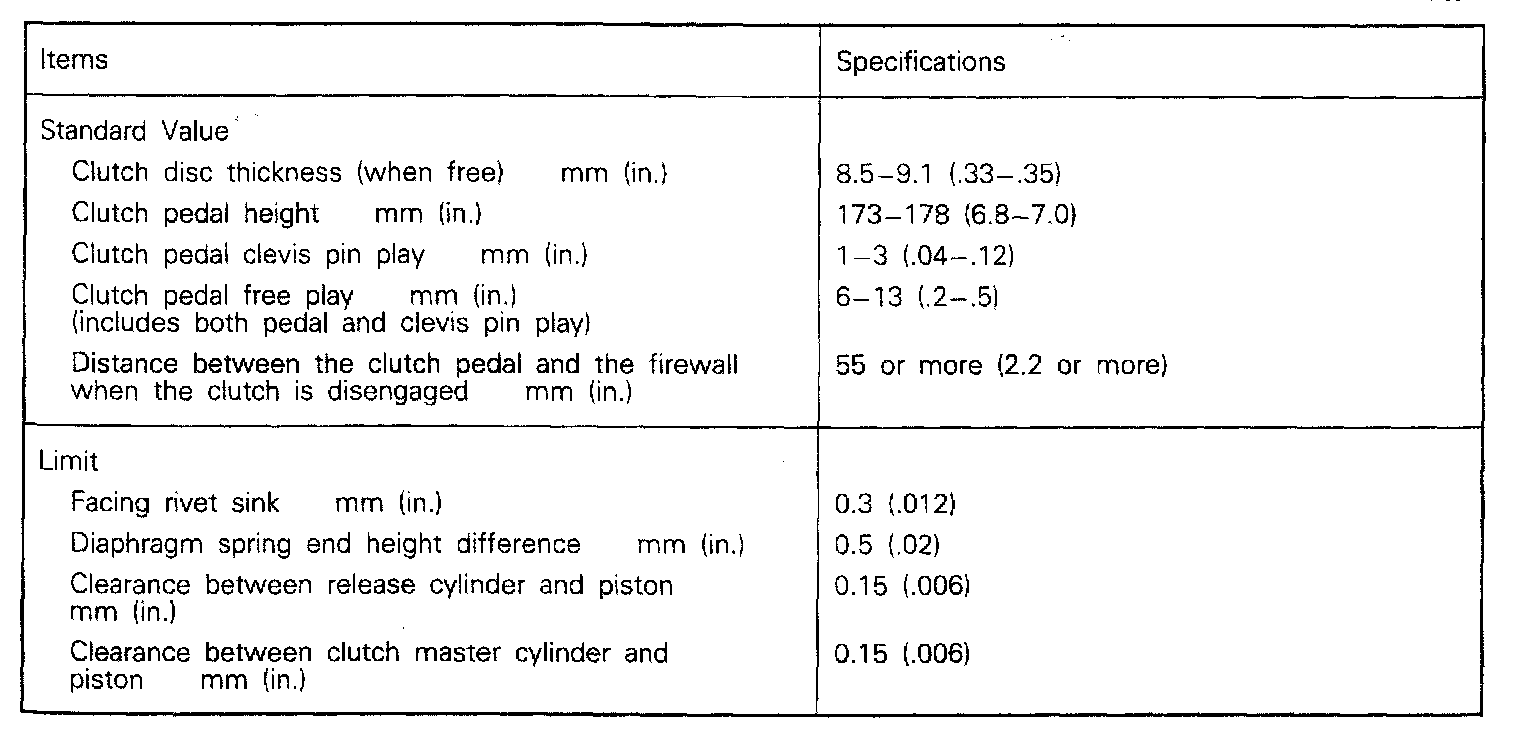

KM210A 5-spd M/T, Clutch Clearances/Tolerances:

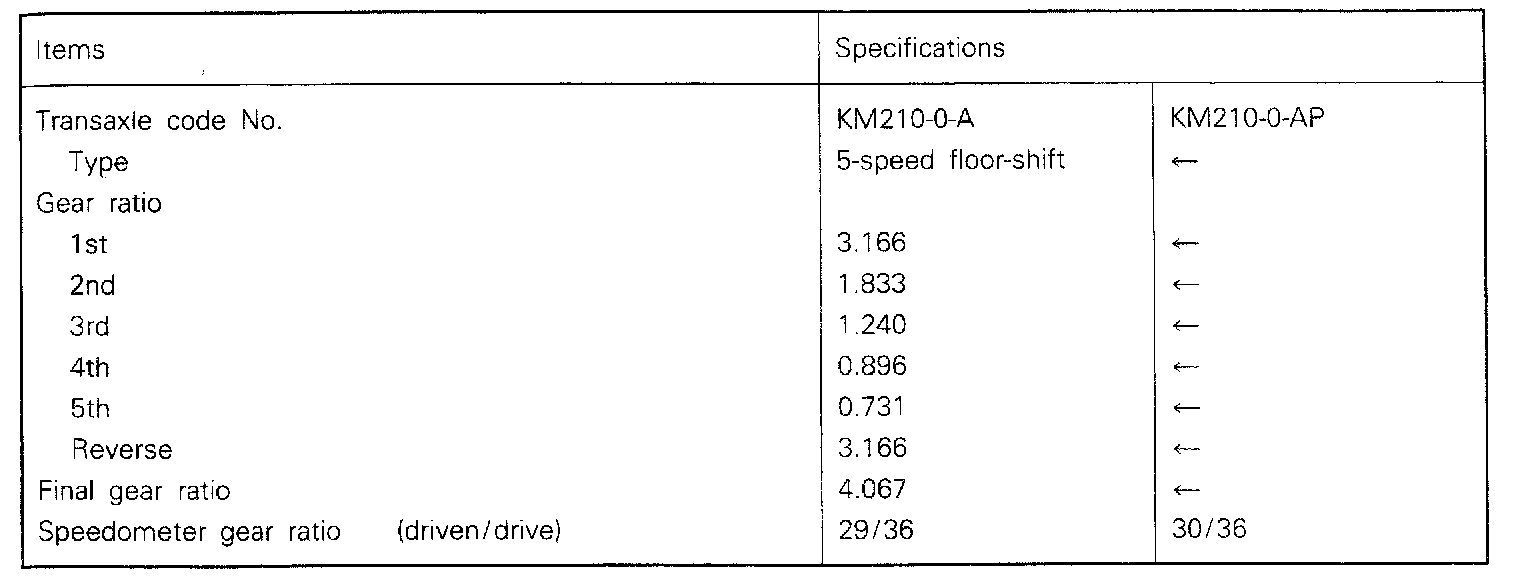

KM210A 5-spd M/T, Gear Ratios:

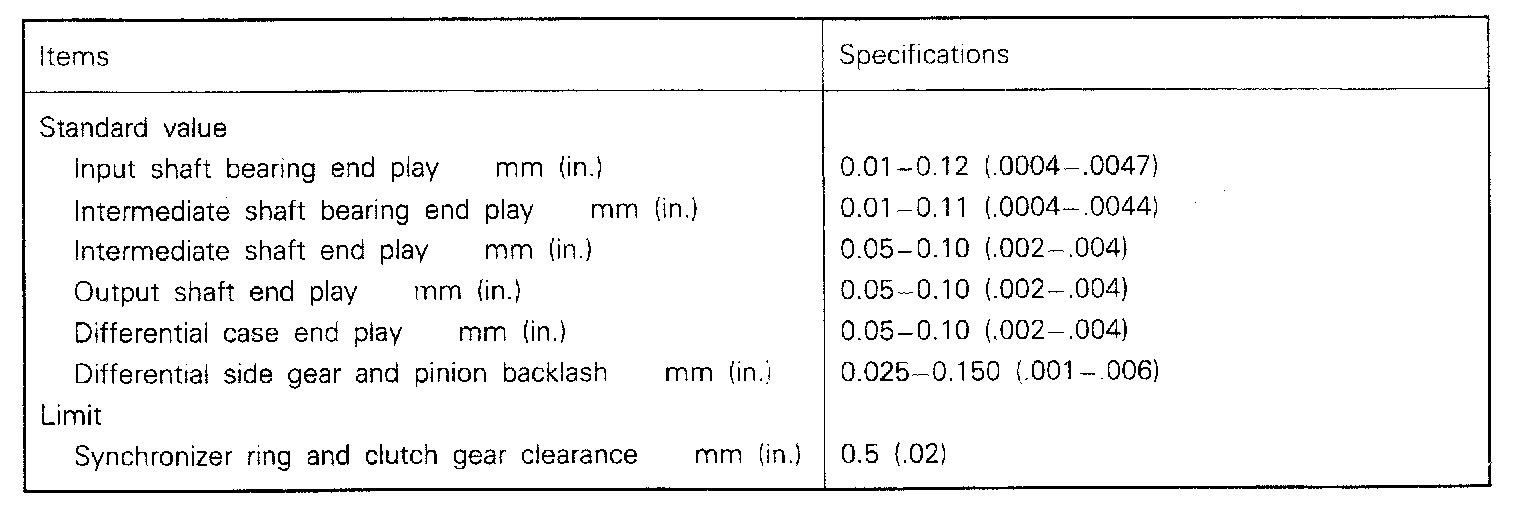

KM210A 5-spd M/T, Standard Values & Limits:

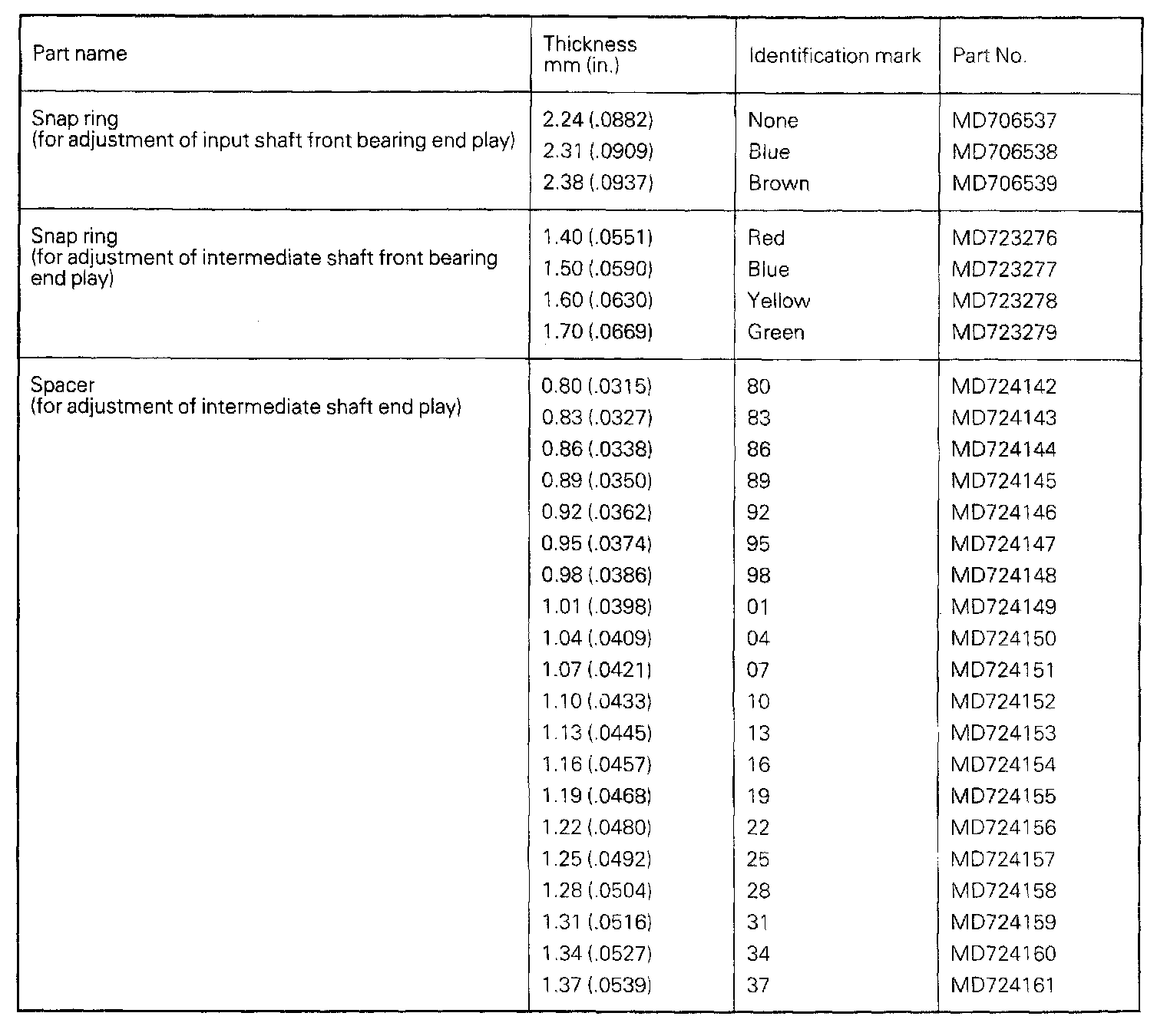

KM210A 5-spd M/T, Snap Ring And Spacer End Play:

KM210A 5-sspd M/T, Output Shaft End Play / Differential End Play:
