Component Tests and General Diagnostics

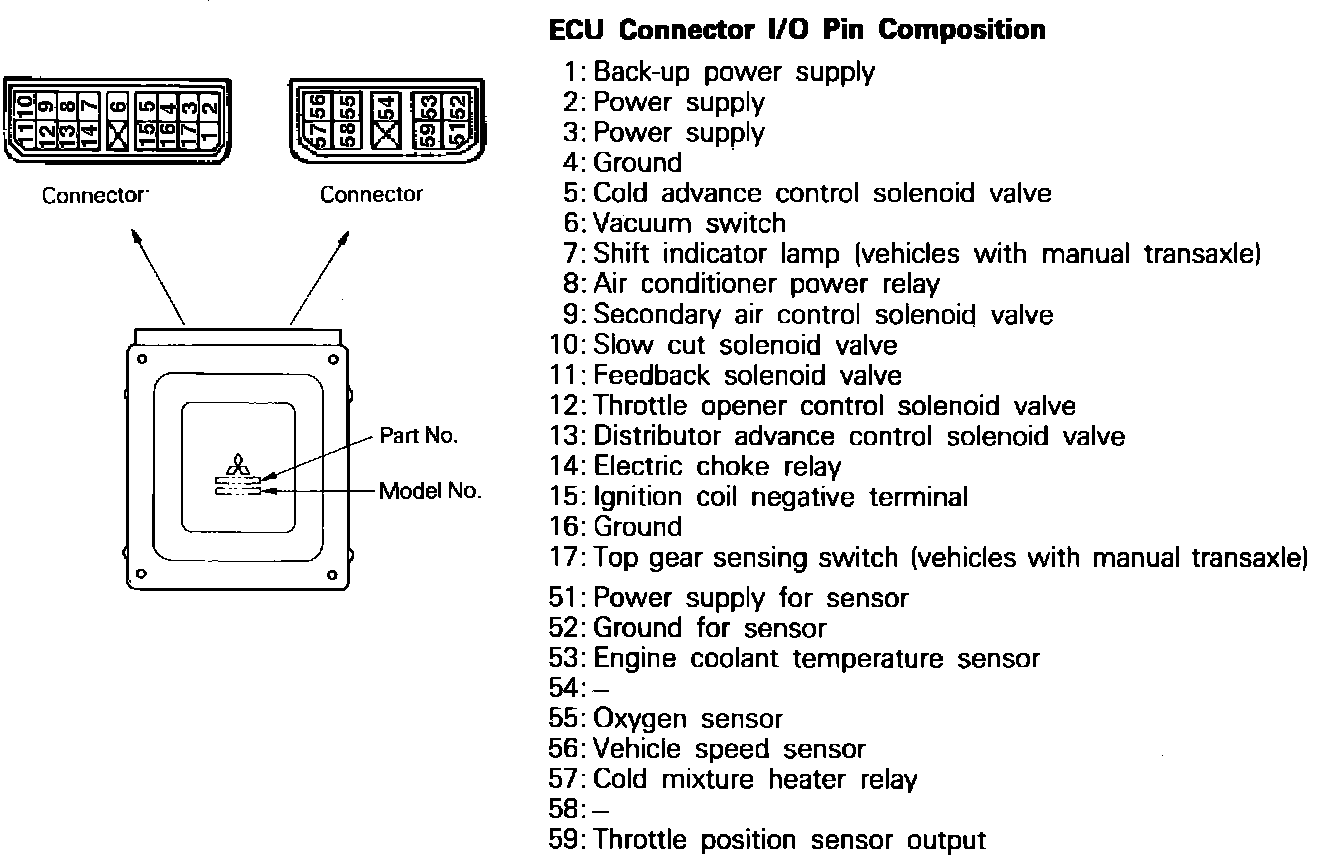

Fig. 26 Carburetor control unit terminal location.:

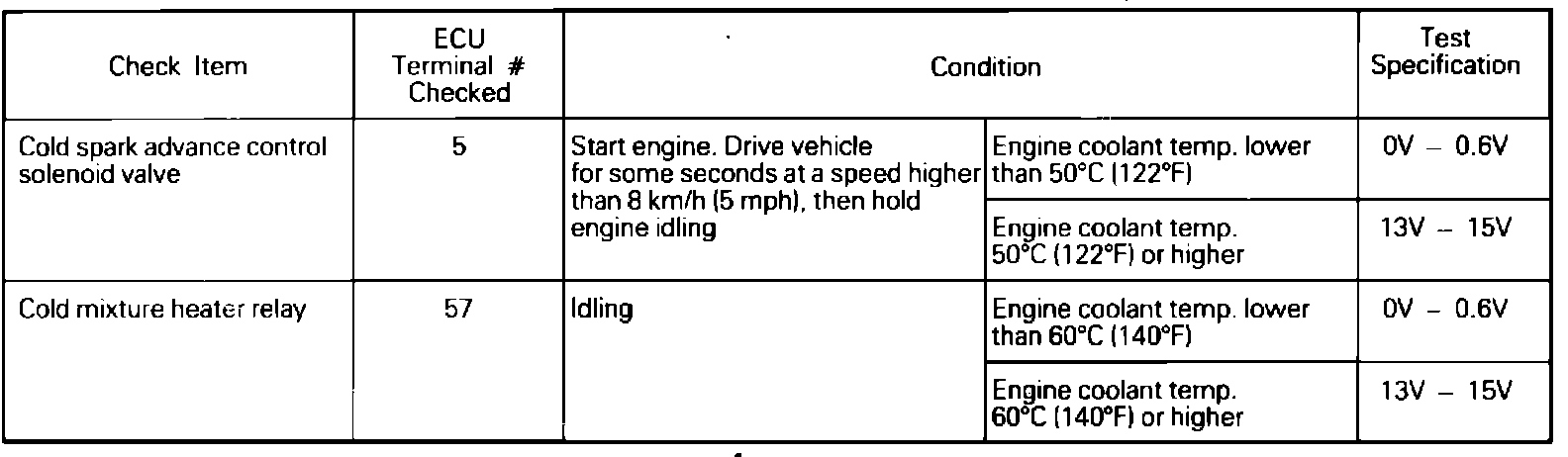

Fig. 38a Electronic feedback carburetor system diagnosis chart .:

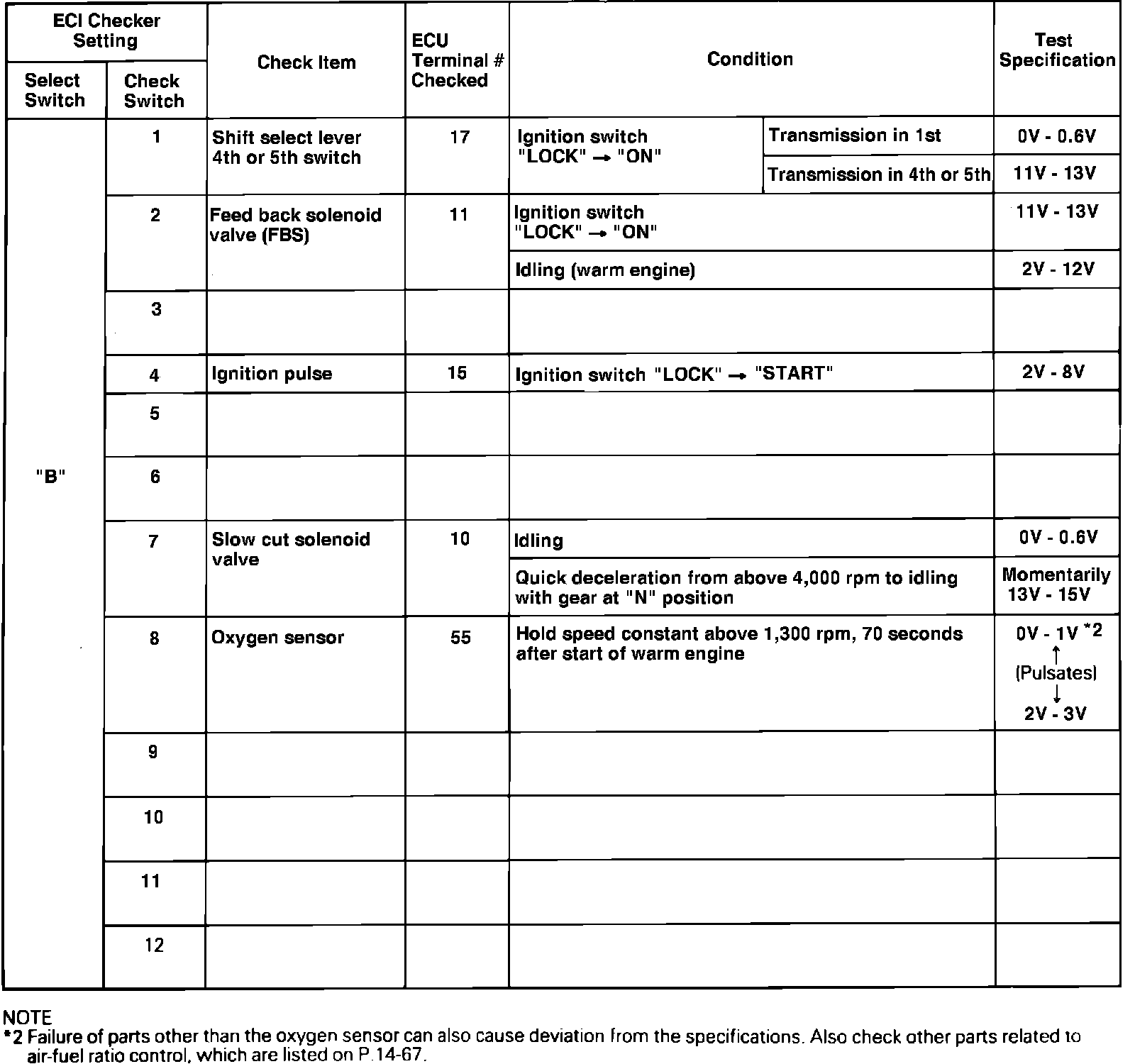

Fig. 38b Electronic feedback carburetor system diagnosis chart .:

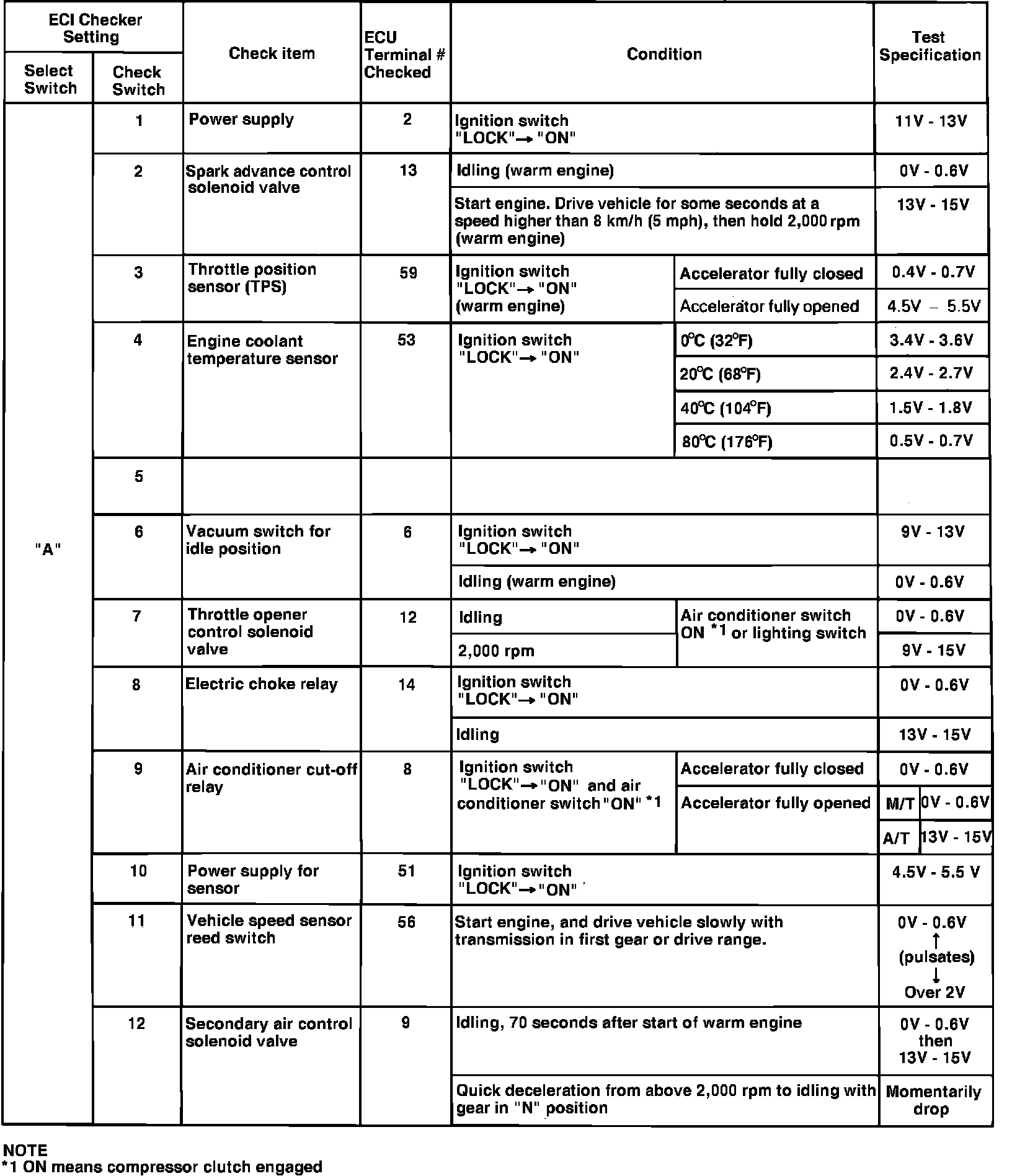

Fig. 38c Electronic feedback carburetor system diagnosis chart .:
