Mirage L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Description and Operation
>>
General Description
General Description

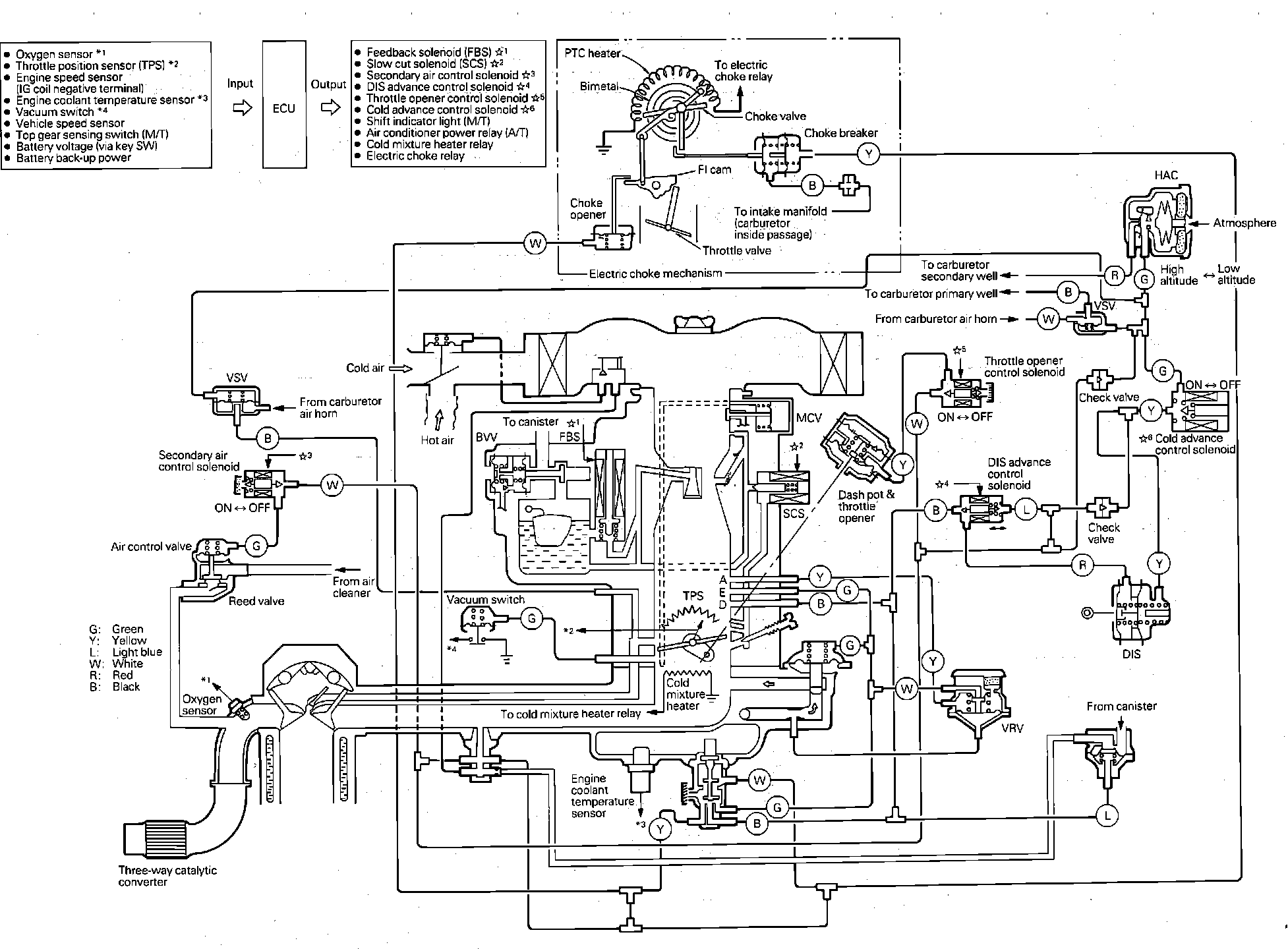

Fig. 501 Complete emission control system diagram (Federal):
