Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
1987
>>
Mirage L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Differential Assembly
Differential Assembly

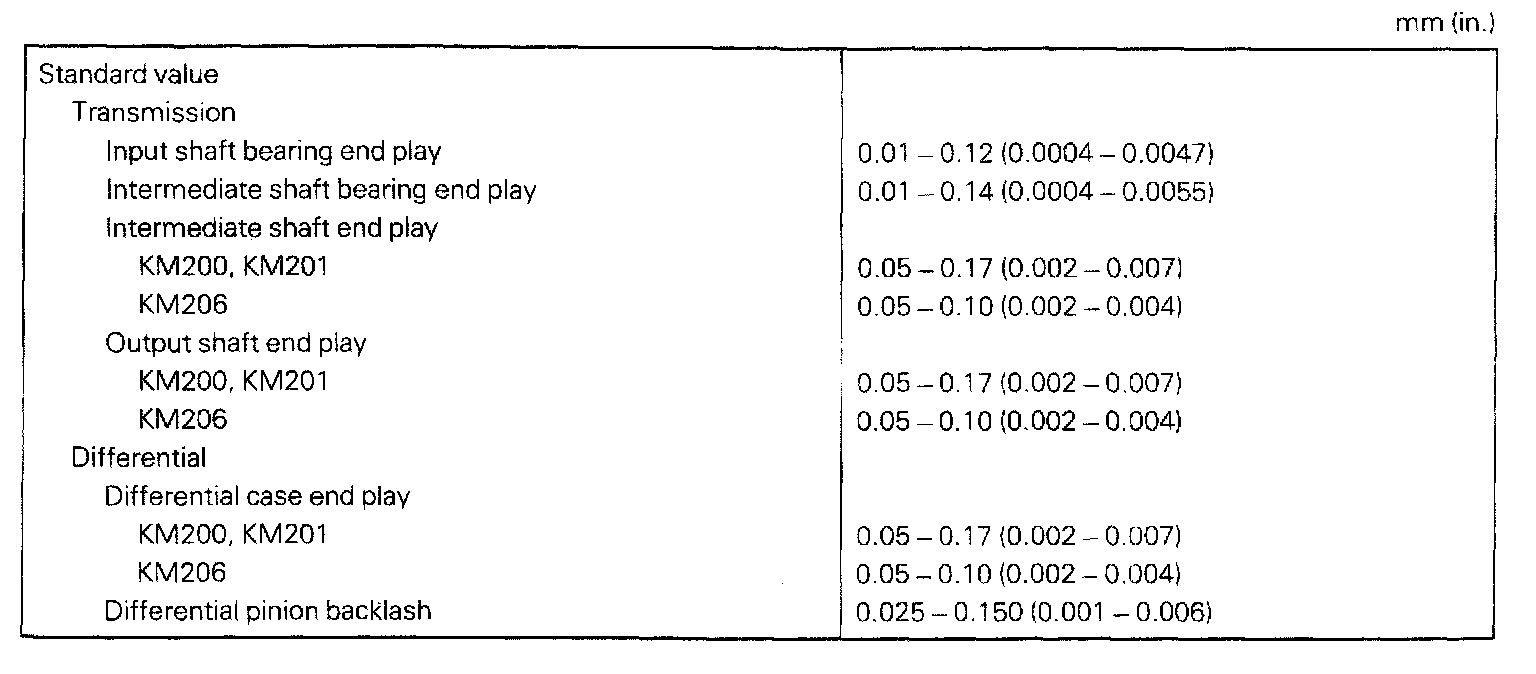

KM200/201/206 M/T, Transmission / Differential End Play:

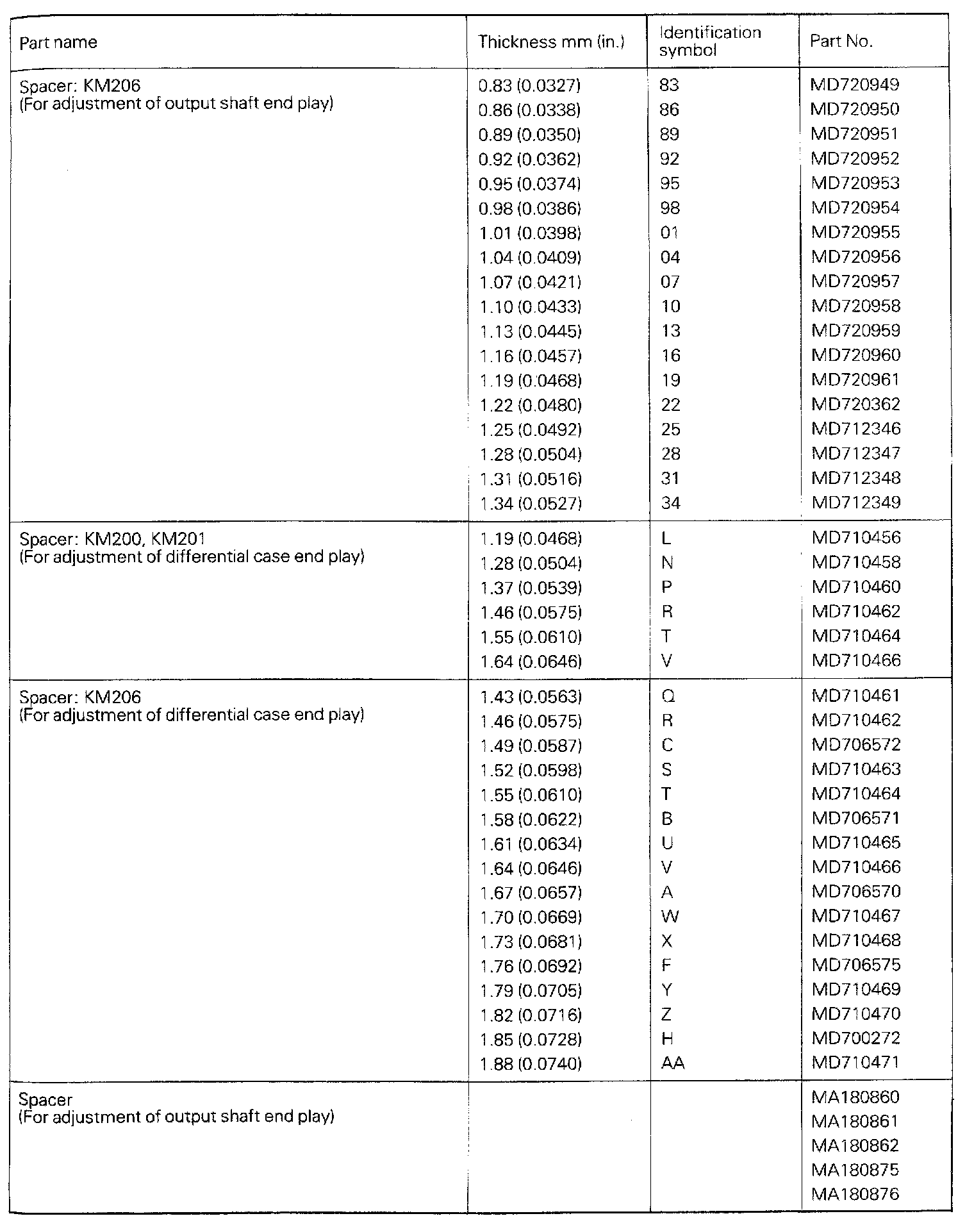

KM200/201/206 M/T, Output Shaft & Differential End Play:
