Home >> Mitsubishi >> 1987 >> Mirage L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Torque Specifications

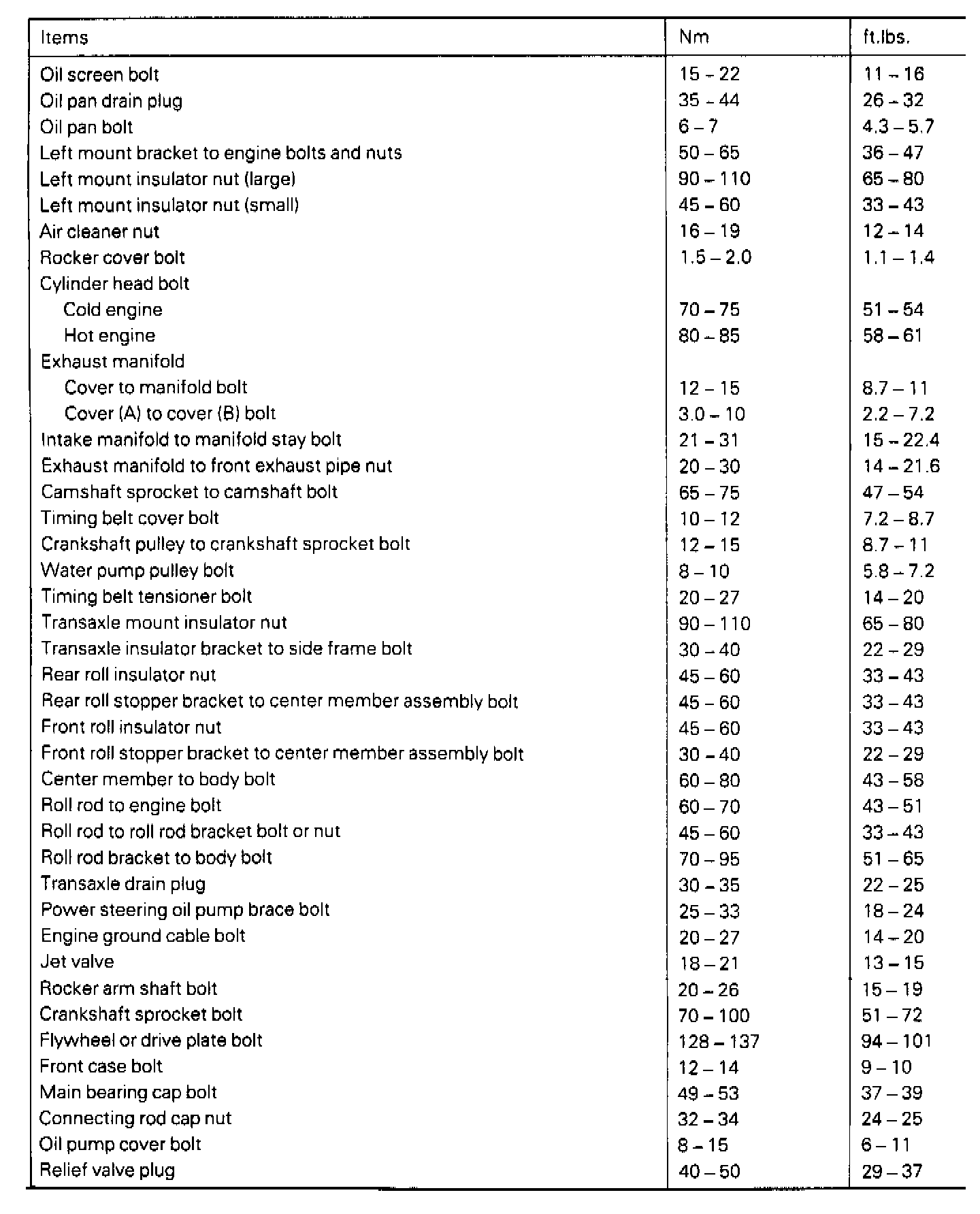

Torque Specifications

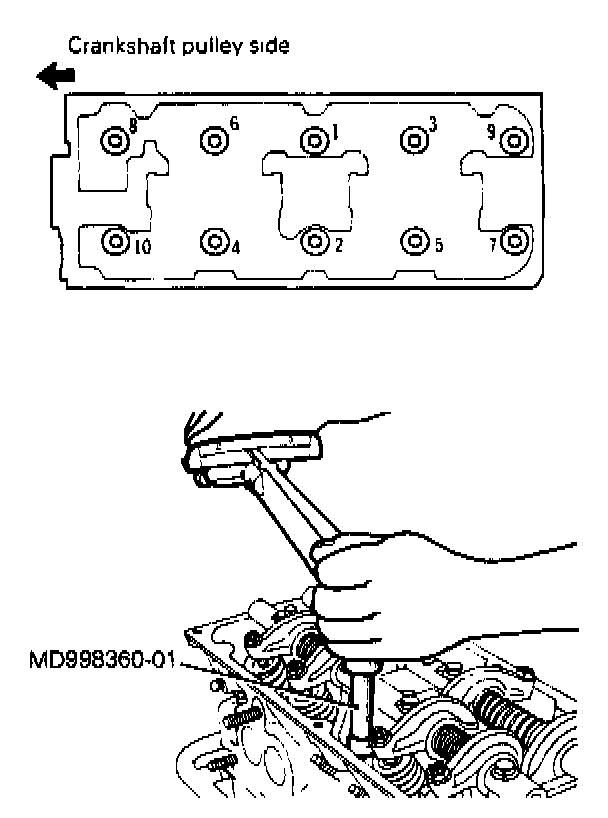

Cylinder Head Bolt Removal Sequence - 1.5 Engine:

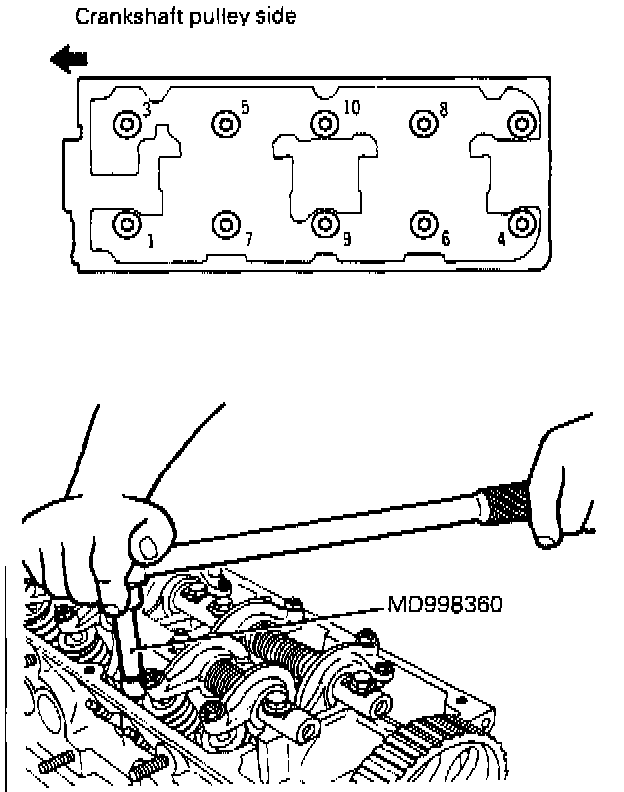

Cylinder Head Bolt Torque Sequence - 1.5 Engine:
