Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
1987
>>
Precis L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Description and Operation
>>
General System Description
>>
Federal
Federal

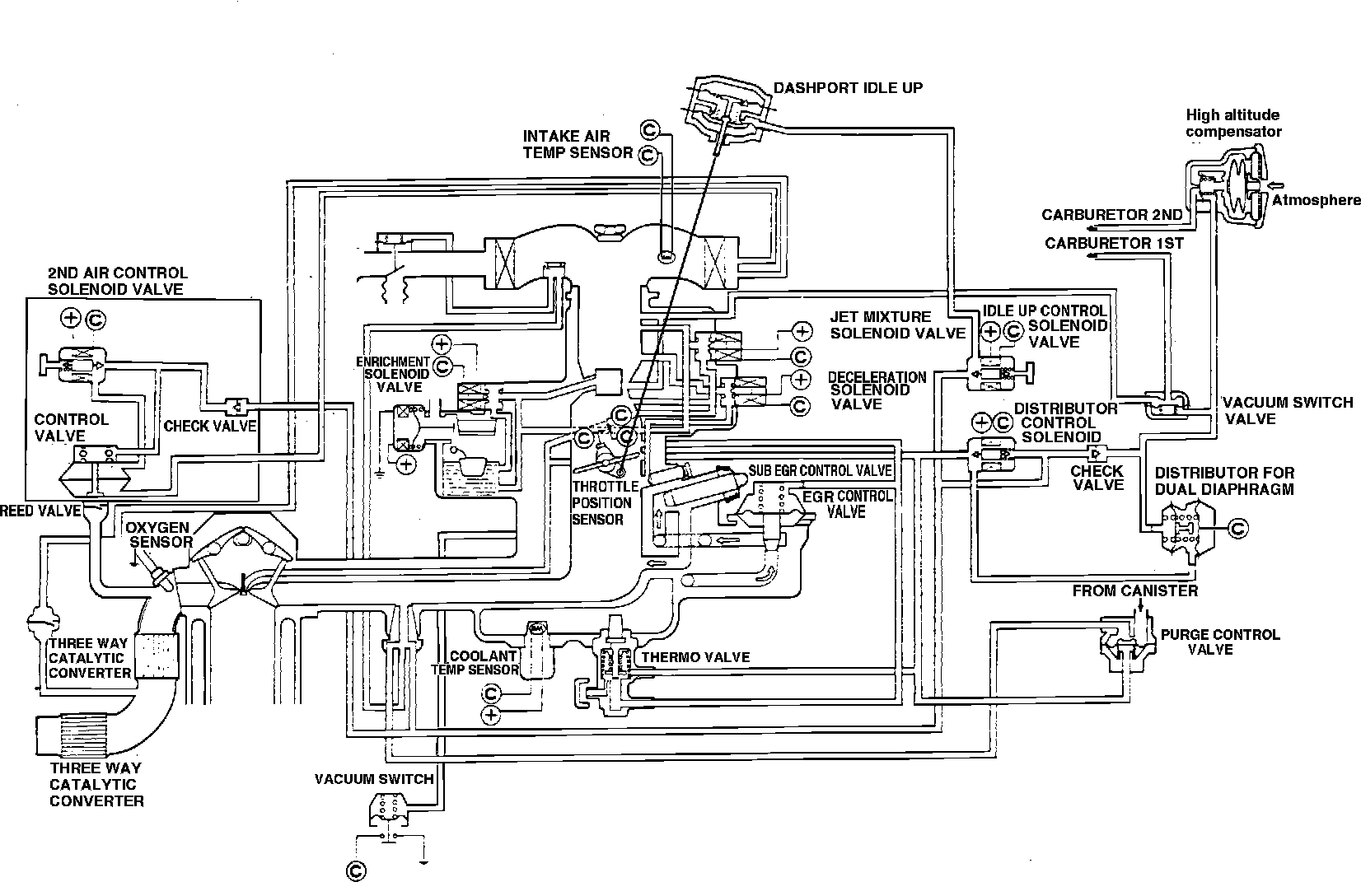

Federal System Diagram:
