Transmission Control Systems: Diagrams

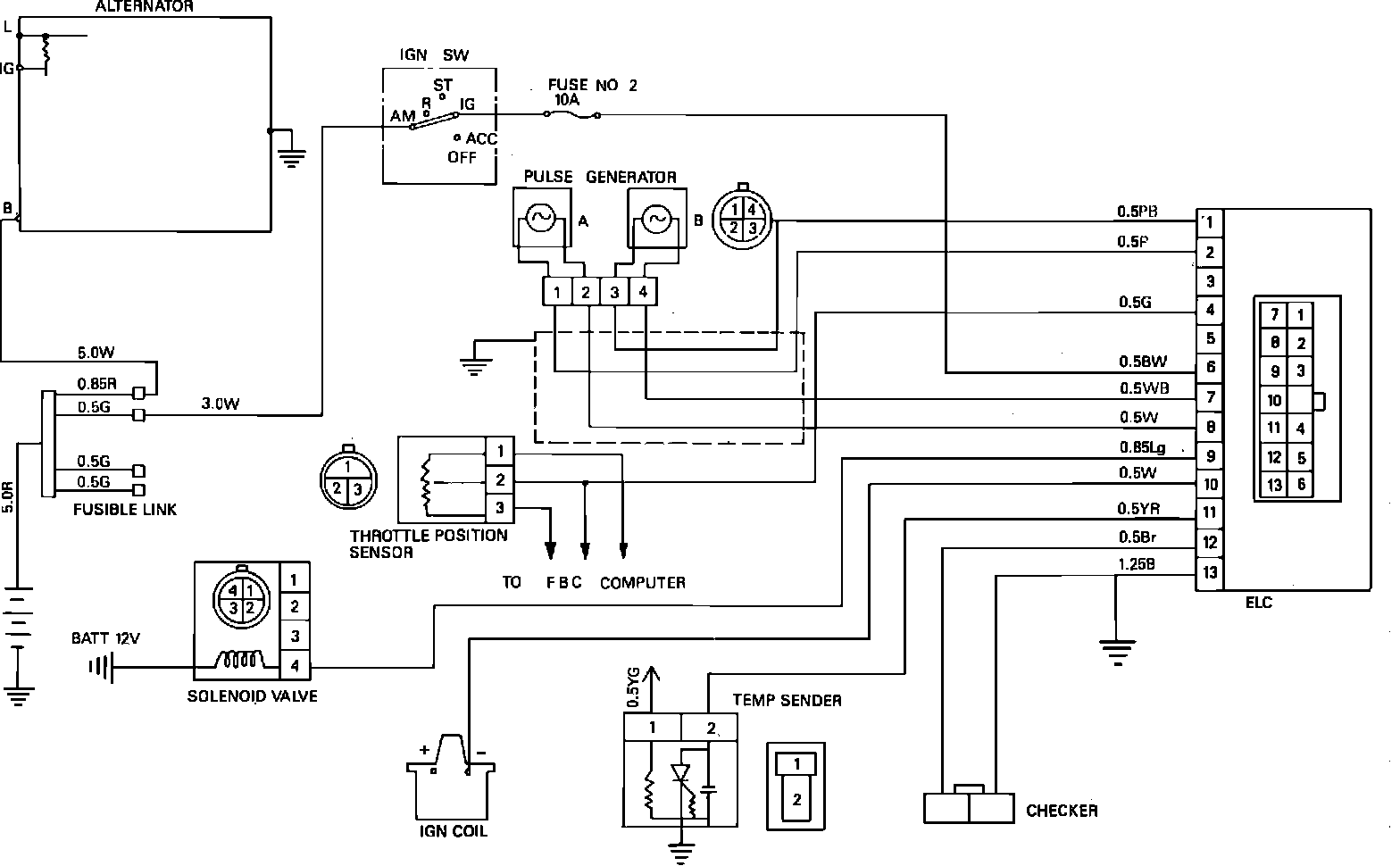

Fig. 28 Lock-Up System Wiring Circuit. Automatic Transmission:
