Timing Component Alignment Marks: Locations

Caution: Incorrect removal or installation of the timing belt can result in damage to internal engine components.

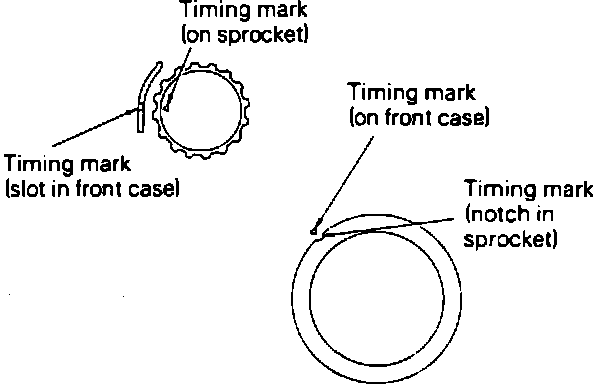

Fig. 12a Timing Marks:

Timing Belt B

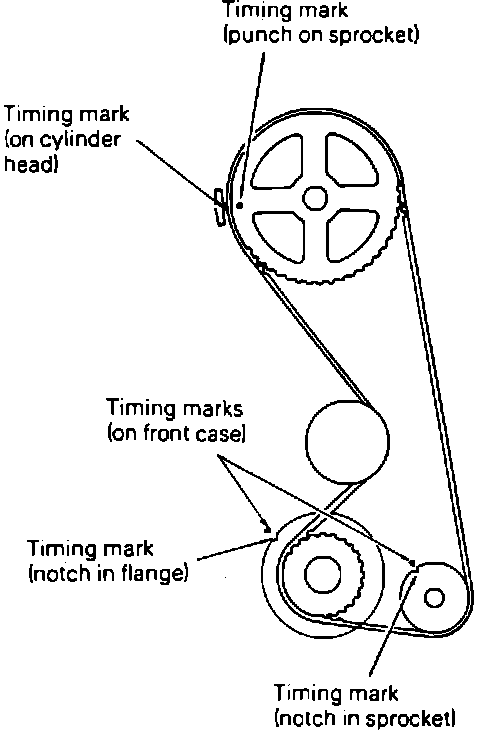

Fig. 2 Timing Marks:

Timing Belt A





For complete Timing Belt Removal and Installation information: Service and Repair
