Component Tests and General Diagnostics

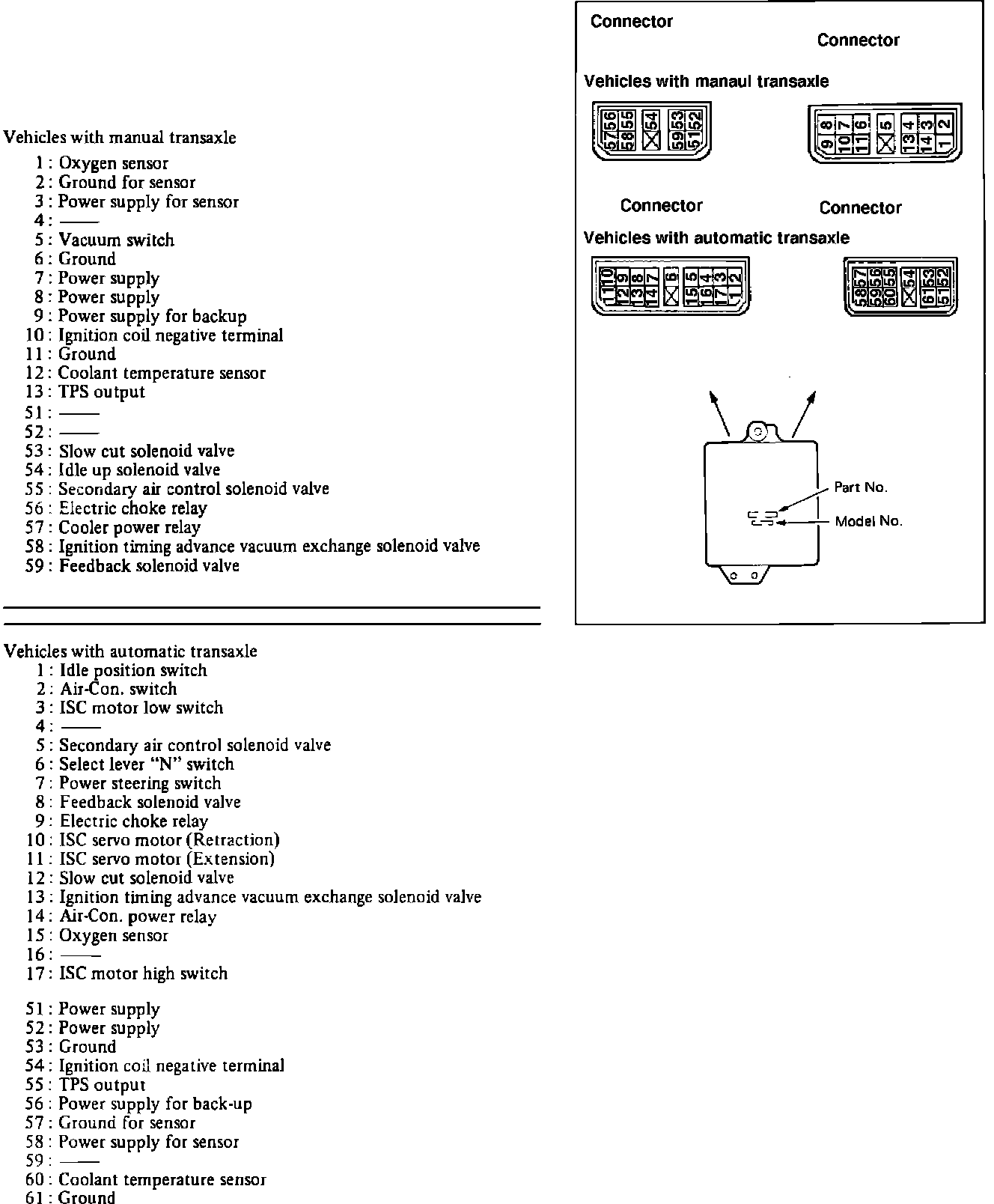

Fig. 25 Carburetor control unit terminal identification.:

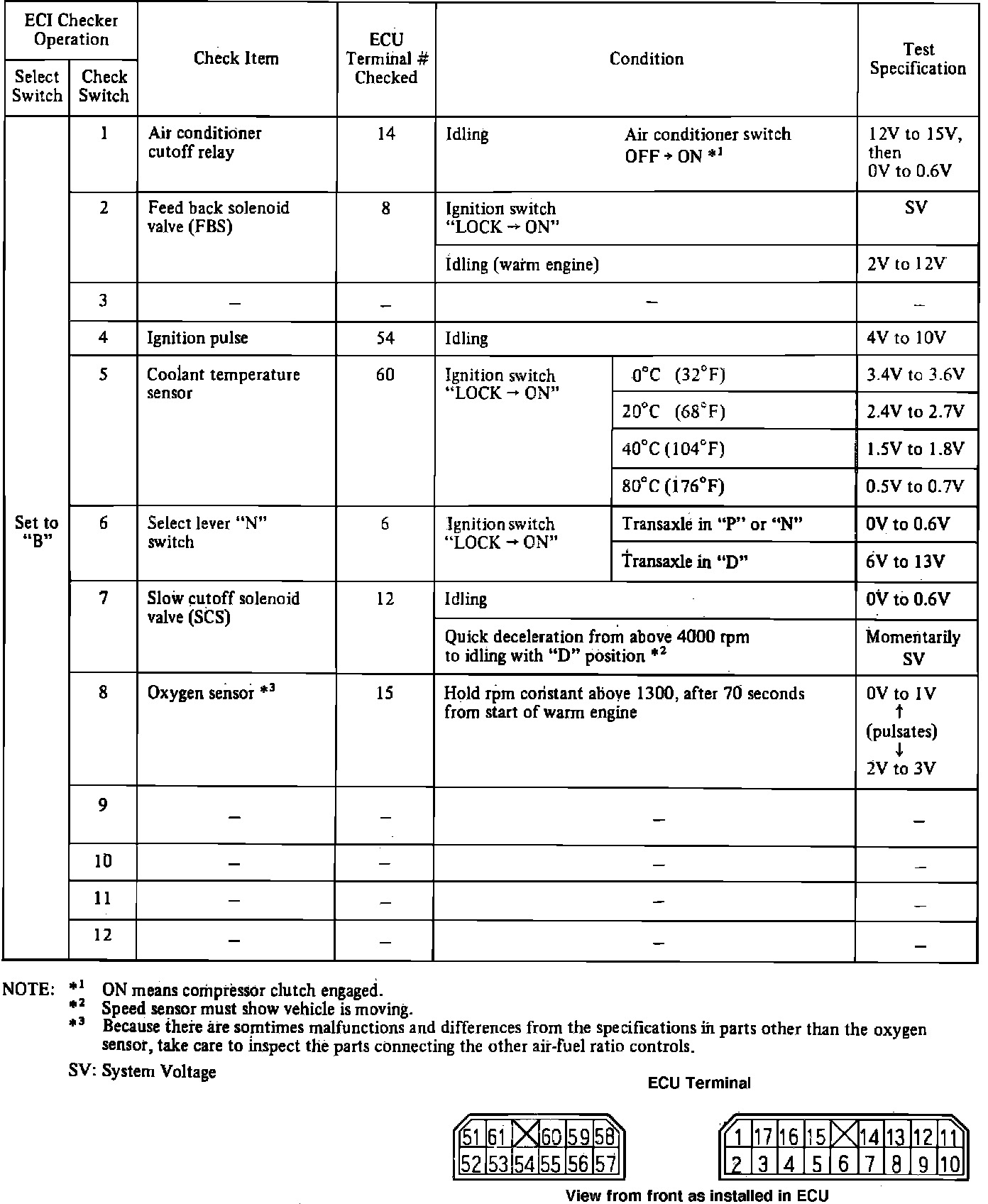

Fig. 36a Electronic feedback carburetor system diagnosis chart .:

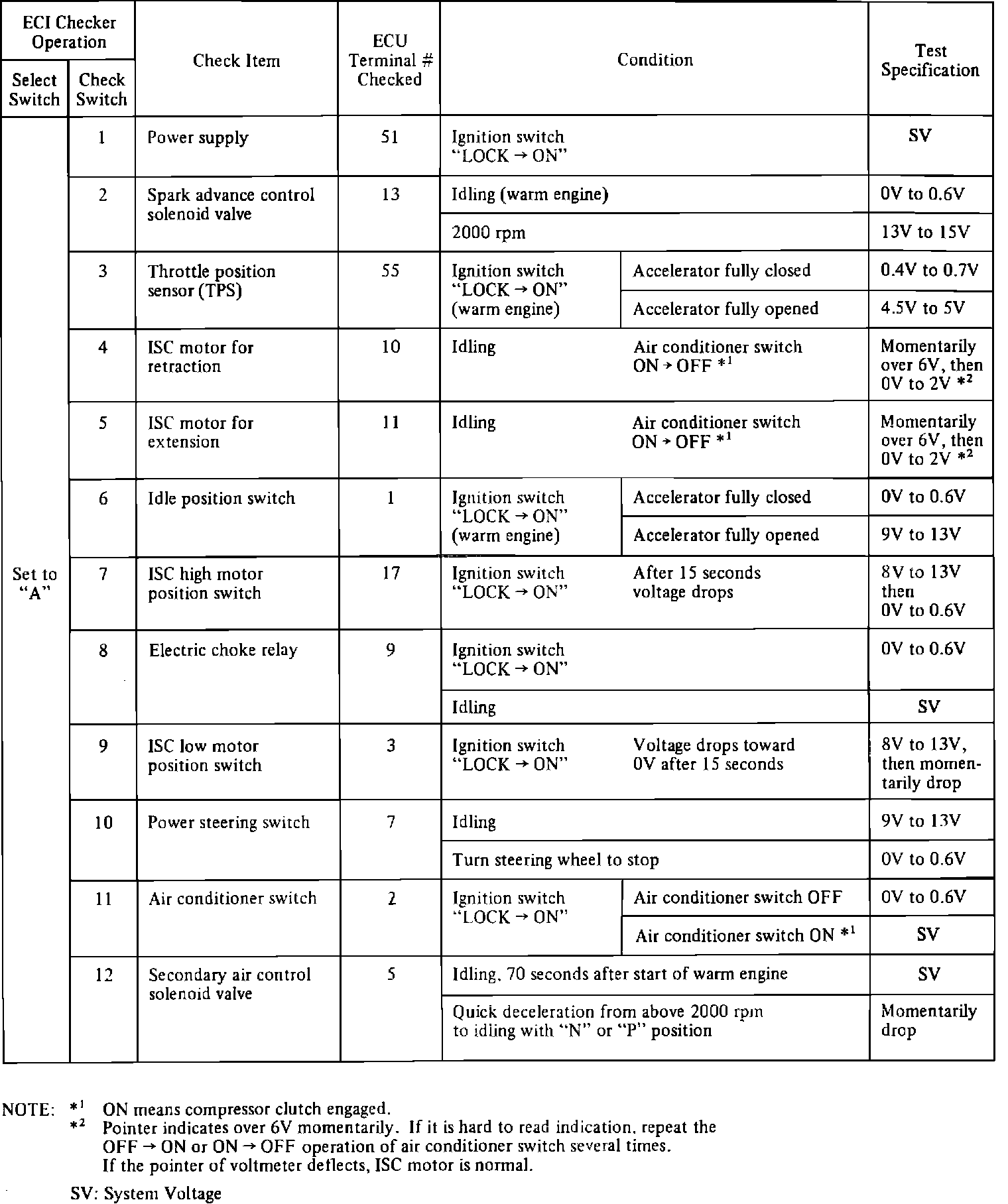

Fig. 36b Electronic feedback carburetor system diagnosis chart .:

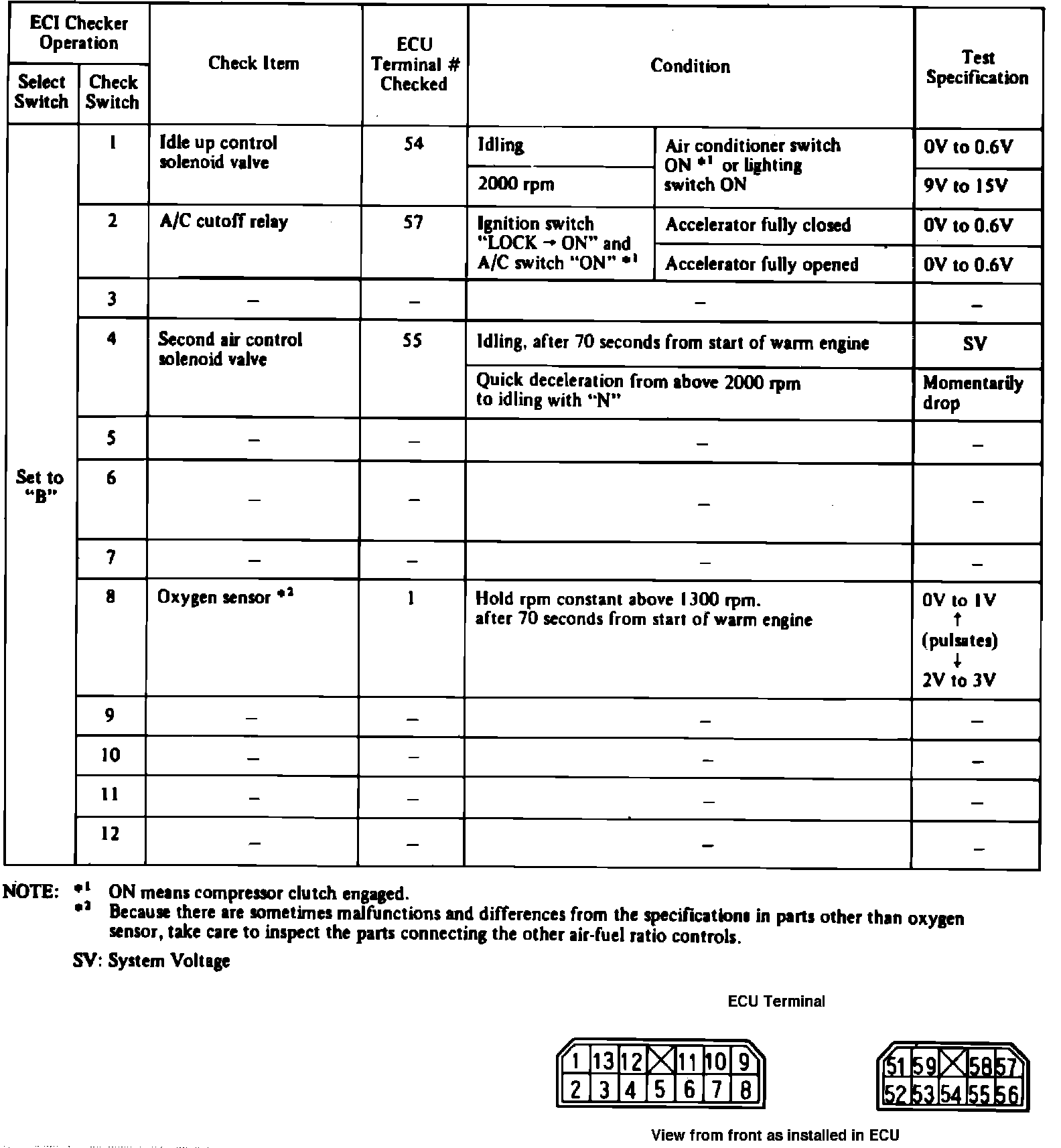

Fig. 37a Electronic feedback carburetor system diagnosis chart .:

Fig. 37b Electronic feedback carburetor system diagnosis chart .:
