M/T Technical Data

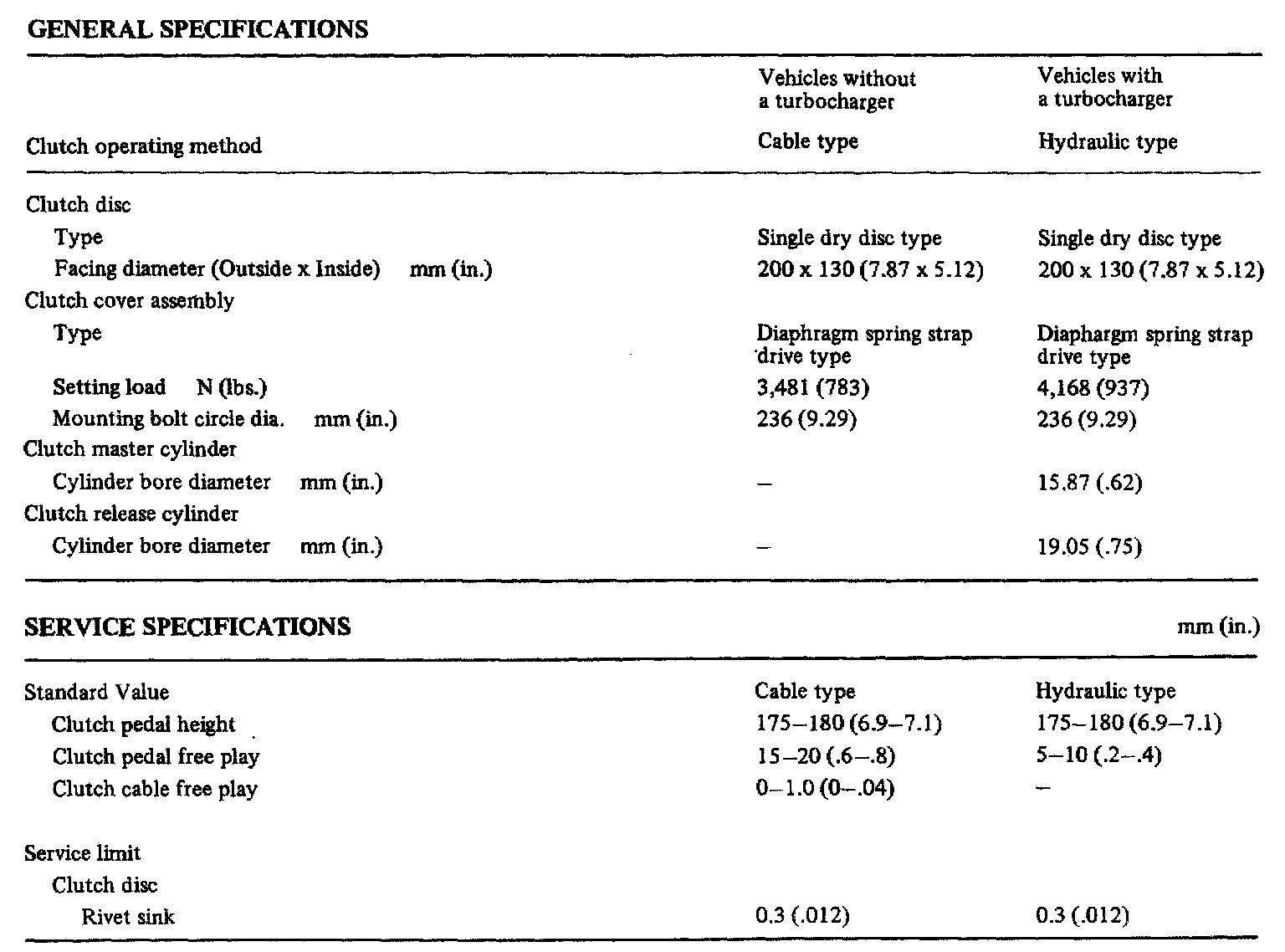

KM163 5-spd M/T / KM166 4-spd A/T, Clutch Dimensions:

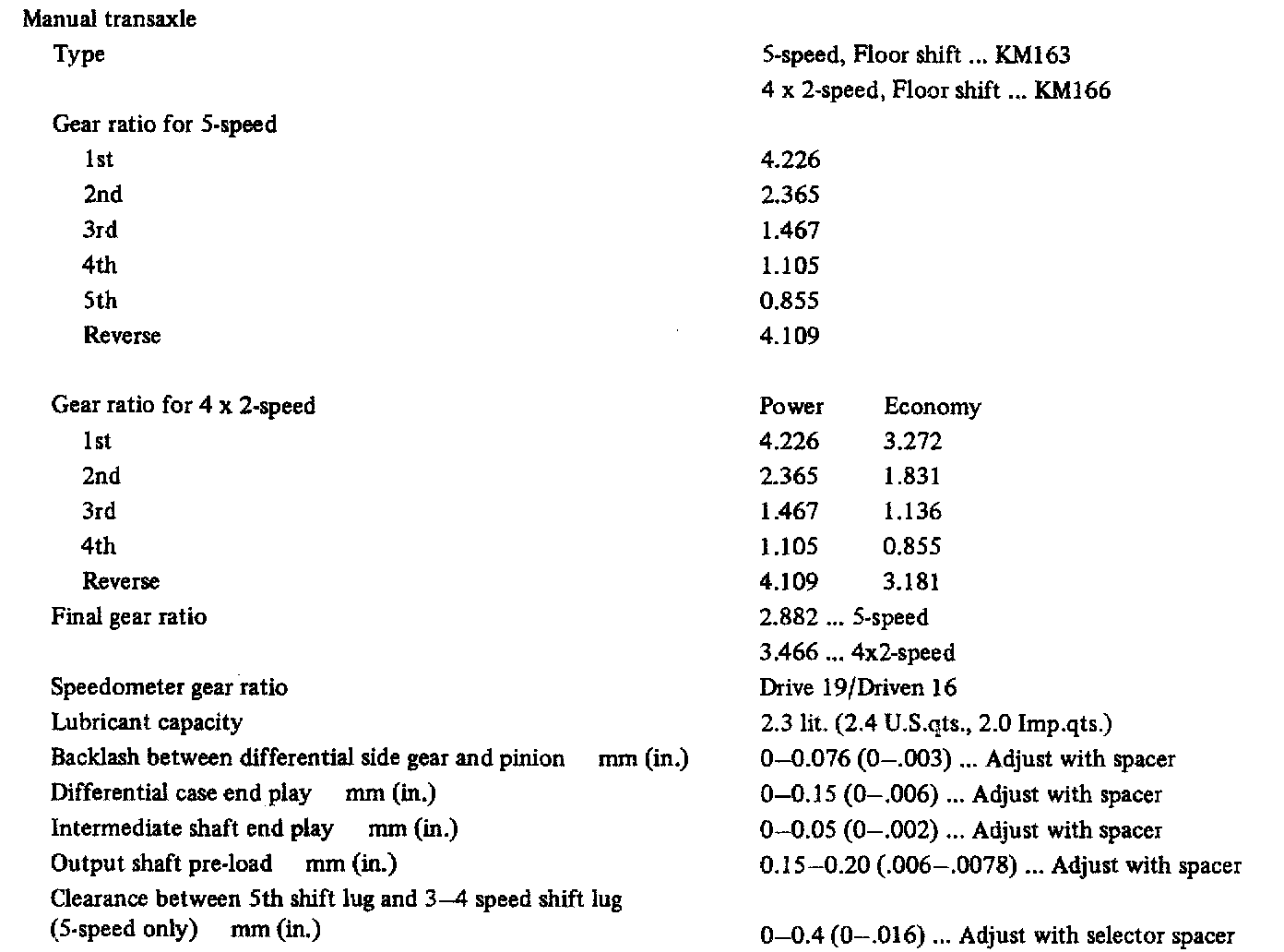

KM163 5-spd M/T / KM166 4-spd M/T, Gear Ratios/End Play:

KM163 5-spd M/T / KM166 4-spd M/T, Differential Backlash/End Play:

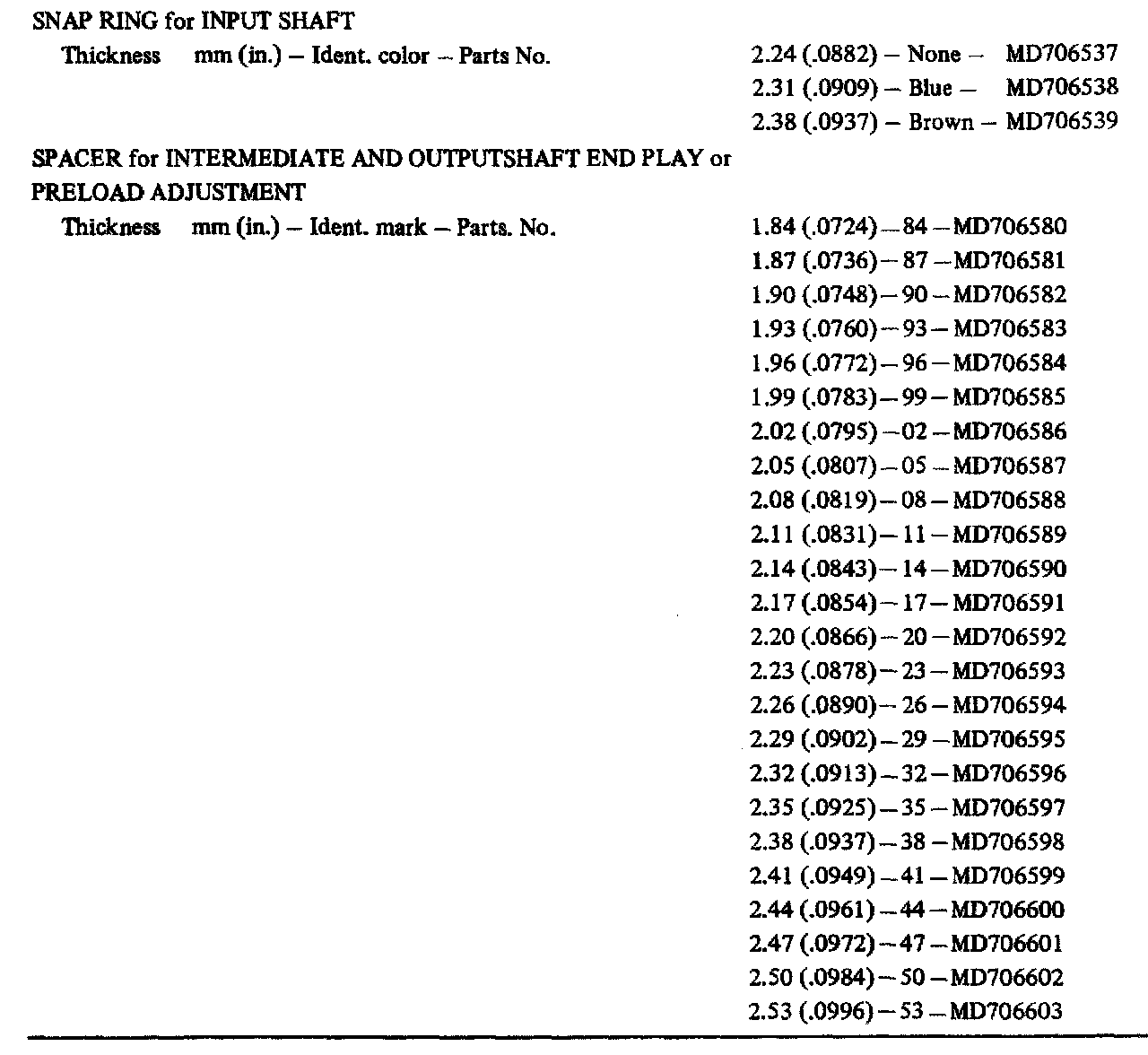

KM163 5-spd M/T / KM166 4-spd M/T, Inputshaft/Intermediate & Outputshaft Endplay:

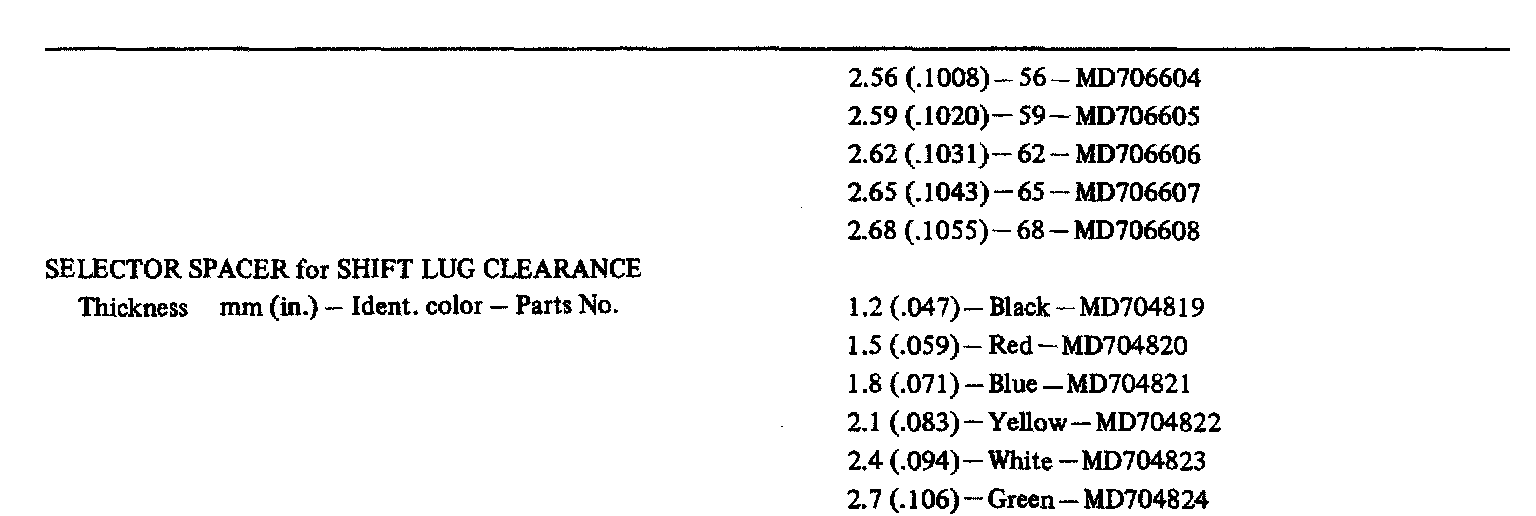

KM163 5-spd M/T / KM166 4-spd M/T, Spacer Clearance:
