M/T Torque Data

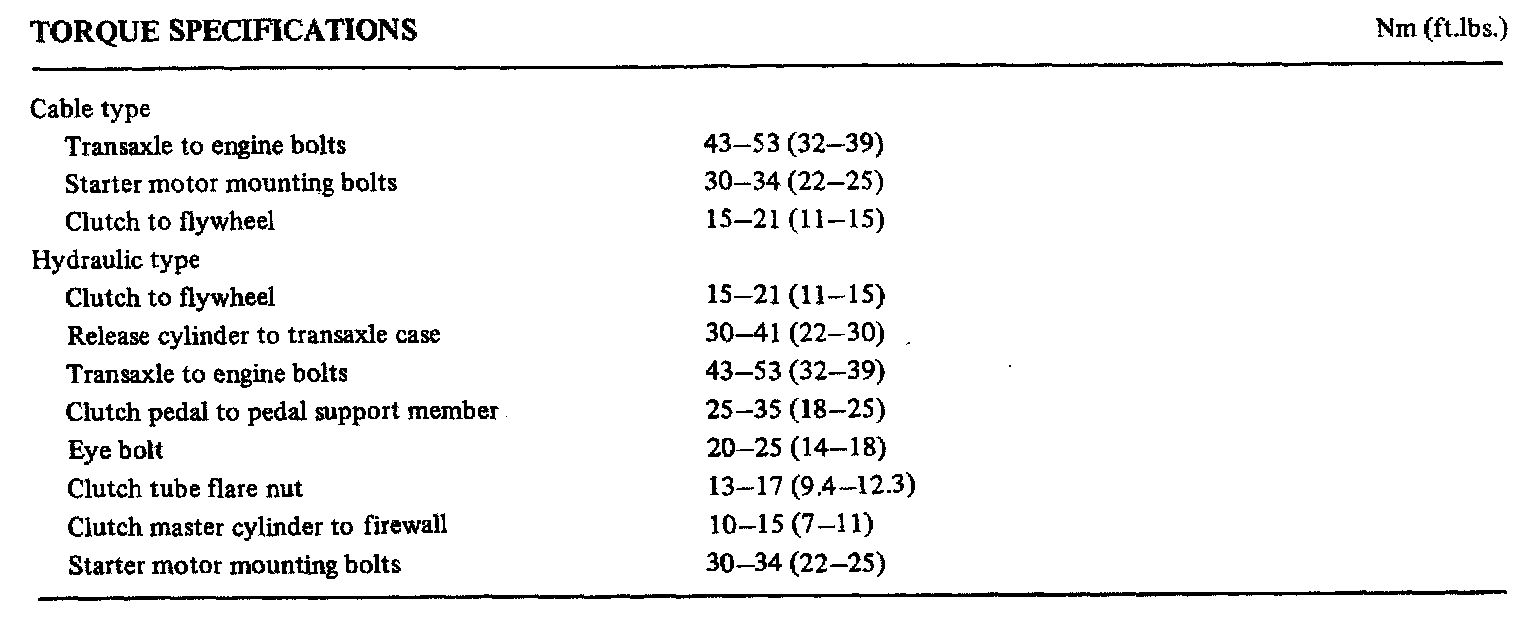

KM163 5-spd M/T / KM166 4-spd M/T, Clutch Torque:

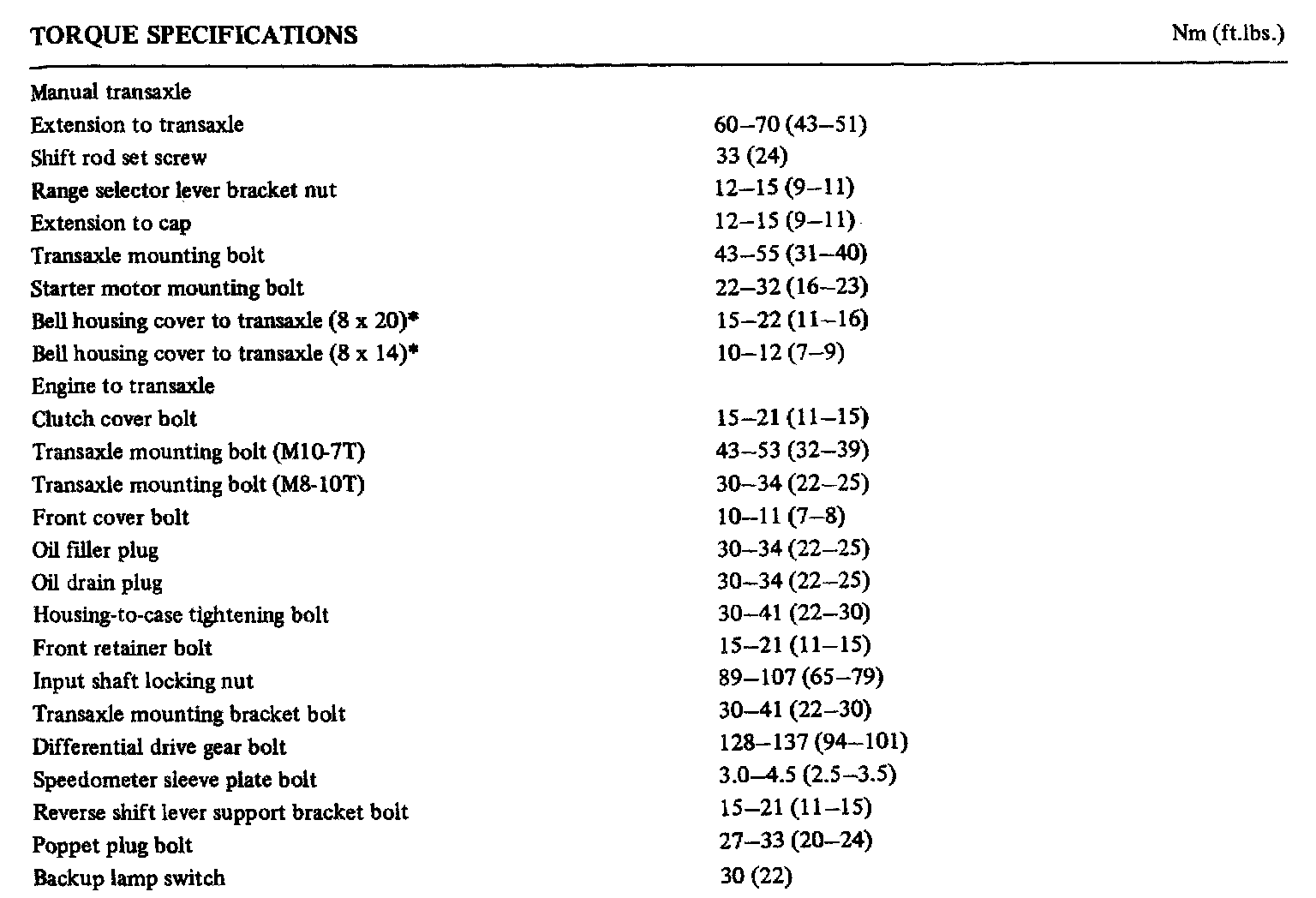

KM163 5-spd M/T / KM166 4-spd M/T, Transaxle Assembly:
