A/T Technical Data

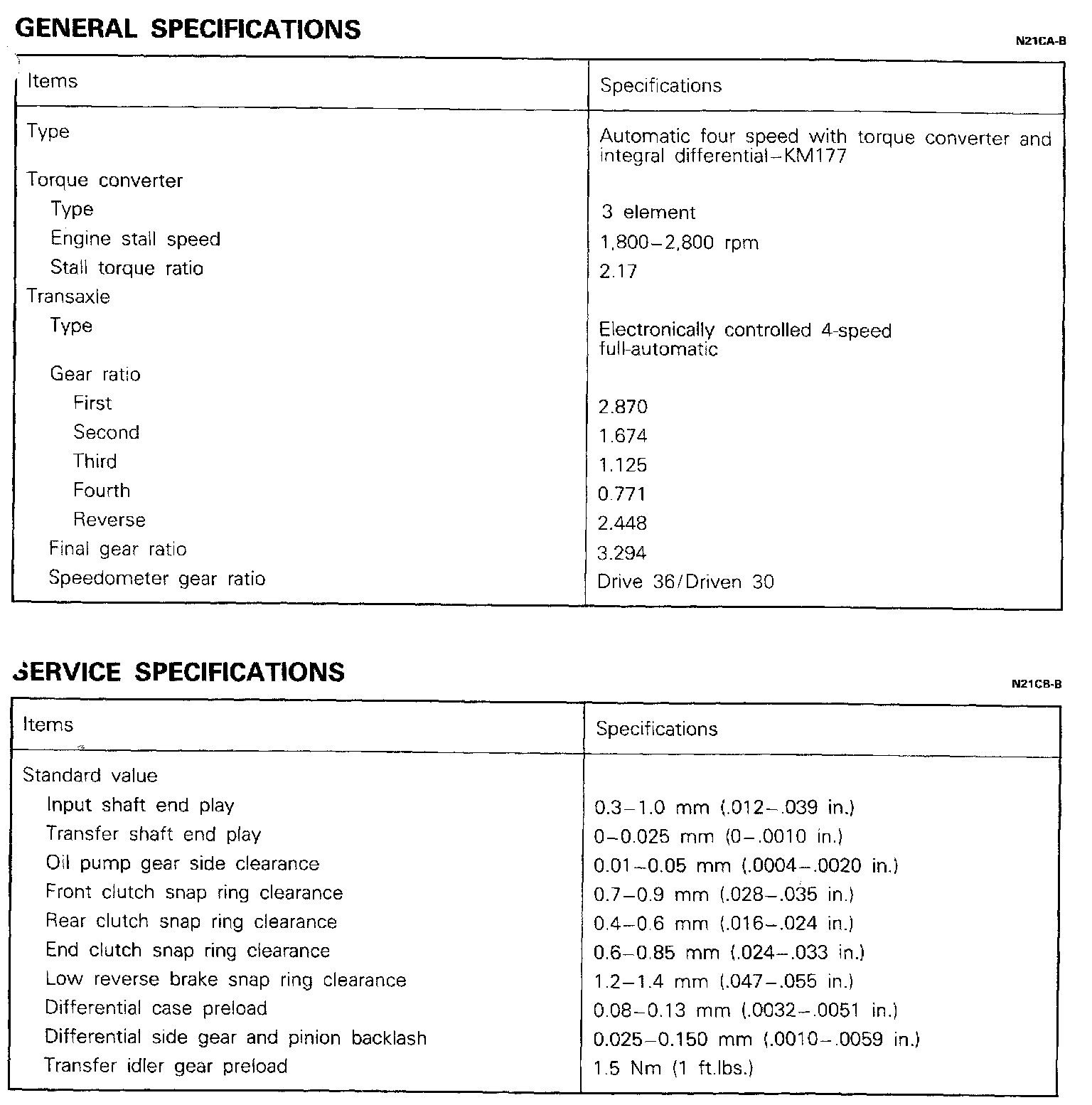

KM177 4-spd A/T, Gear Ratio & Clearance/End Play:

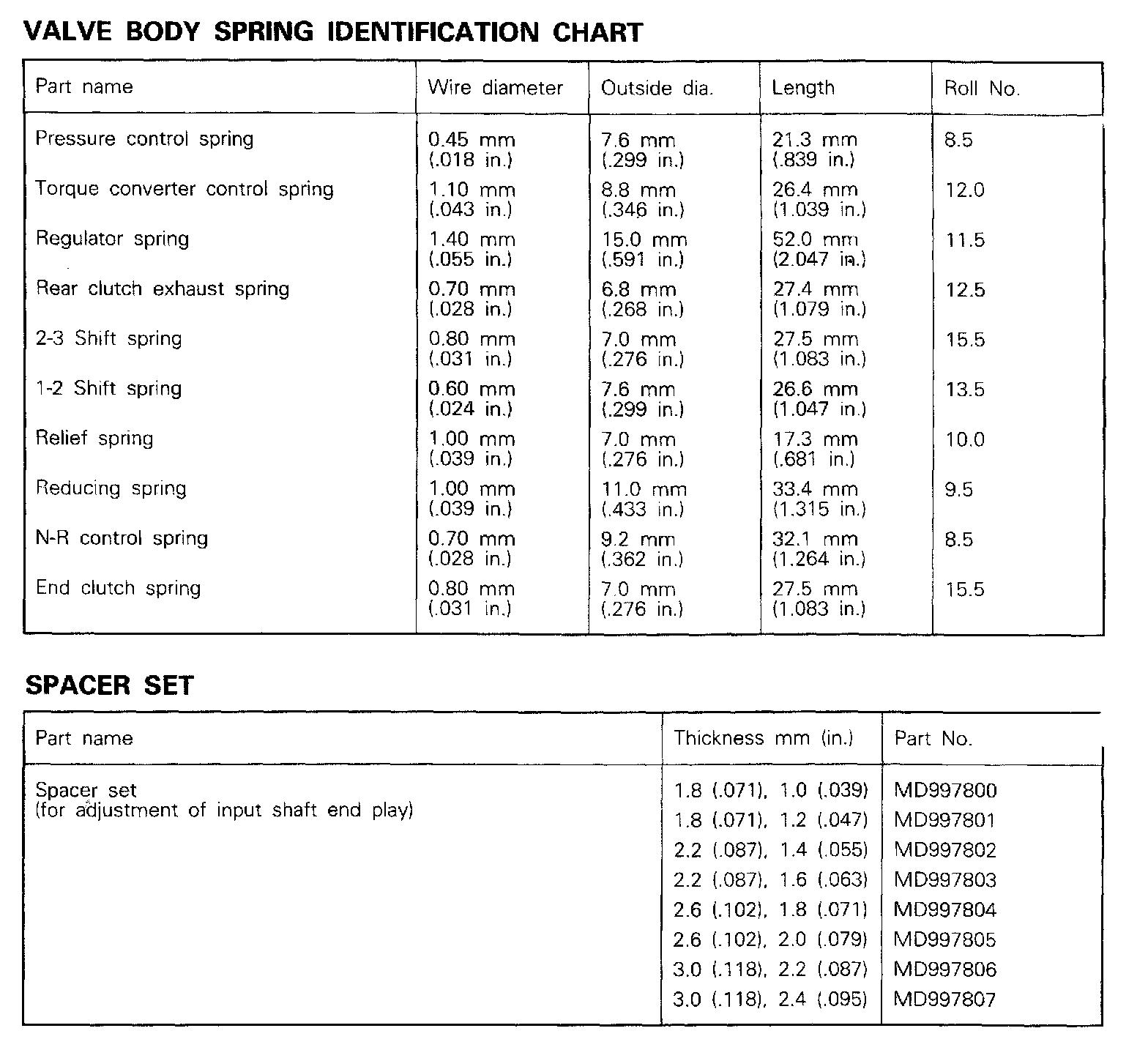

KM177 4-spd A/T, Spring & Spacer Dimensions:

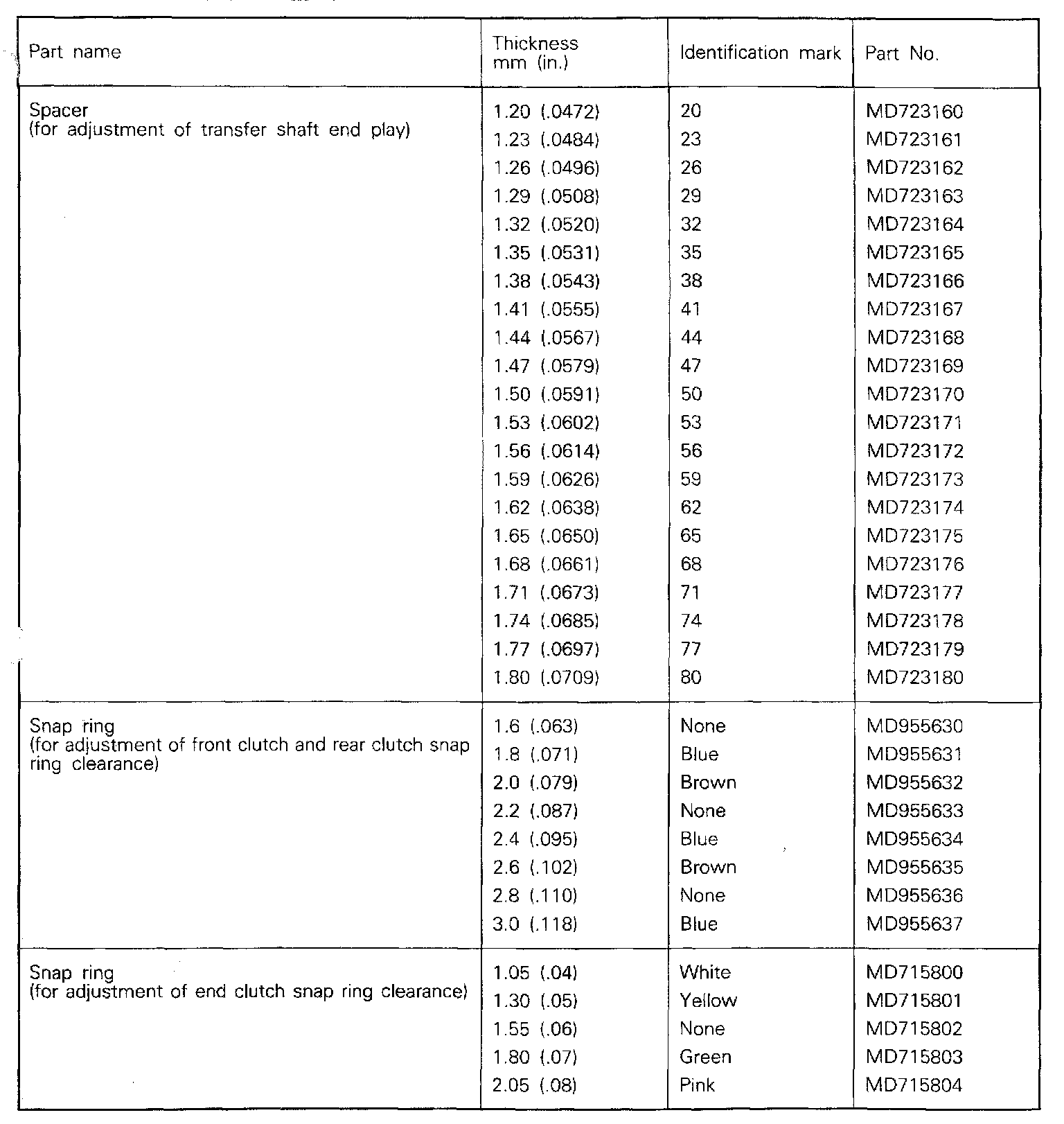

KM177 4-spd A/T, Transfer Shaft & Clutch Clearances:

KM177 4-spd A/T, Low-Reverse Clearance & Differential Preload:
