General Specifications

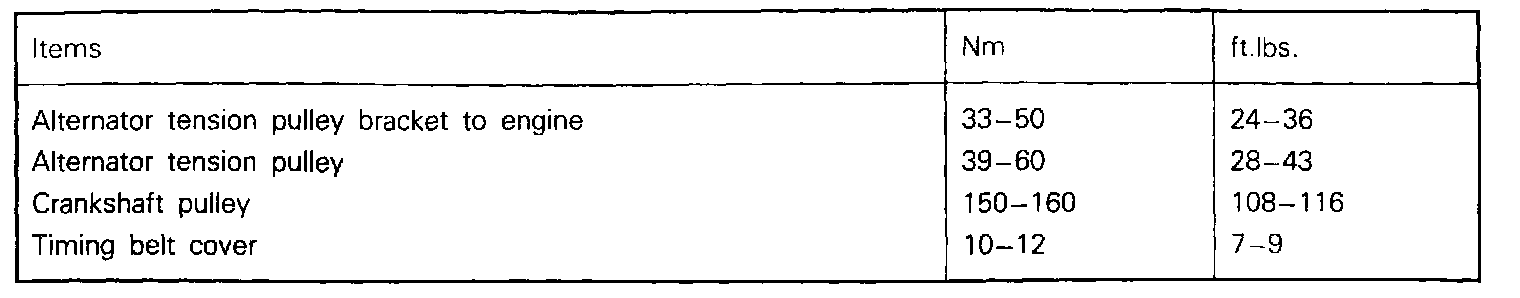

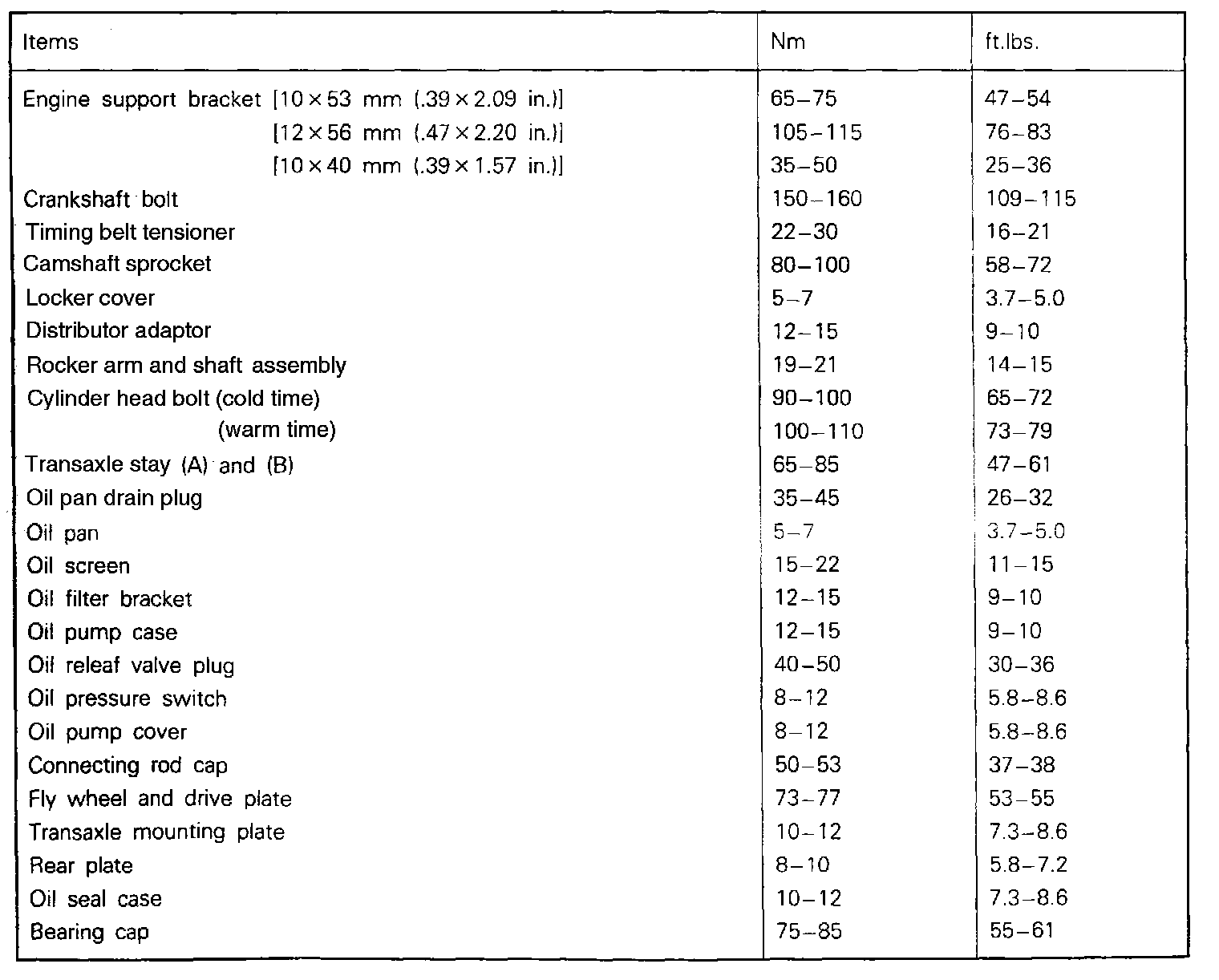

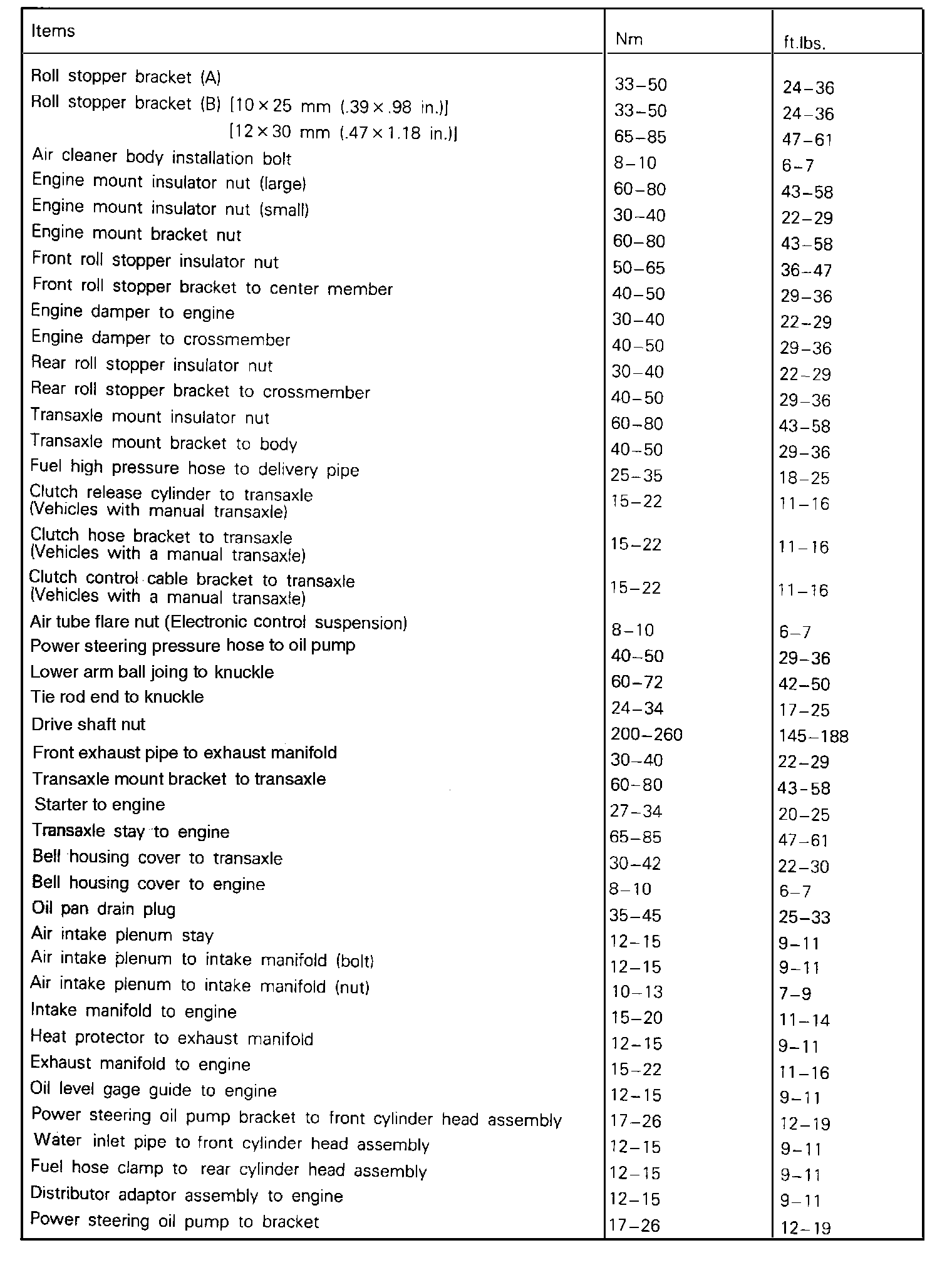

TORQUE SPECIFICATIONS





REMOVAL OF CYLINDER HEAD BOLT





INSTALLATION OF CYLINDER HEAD BOLT

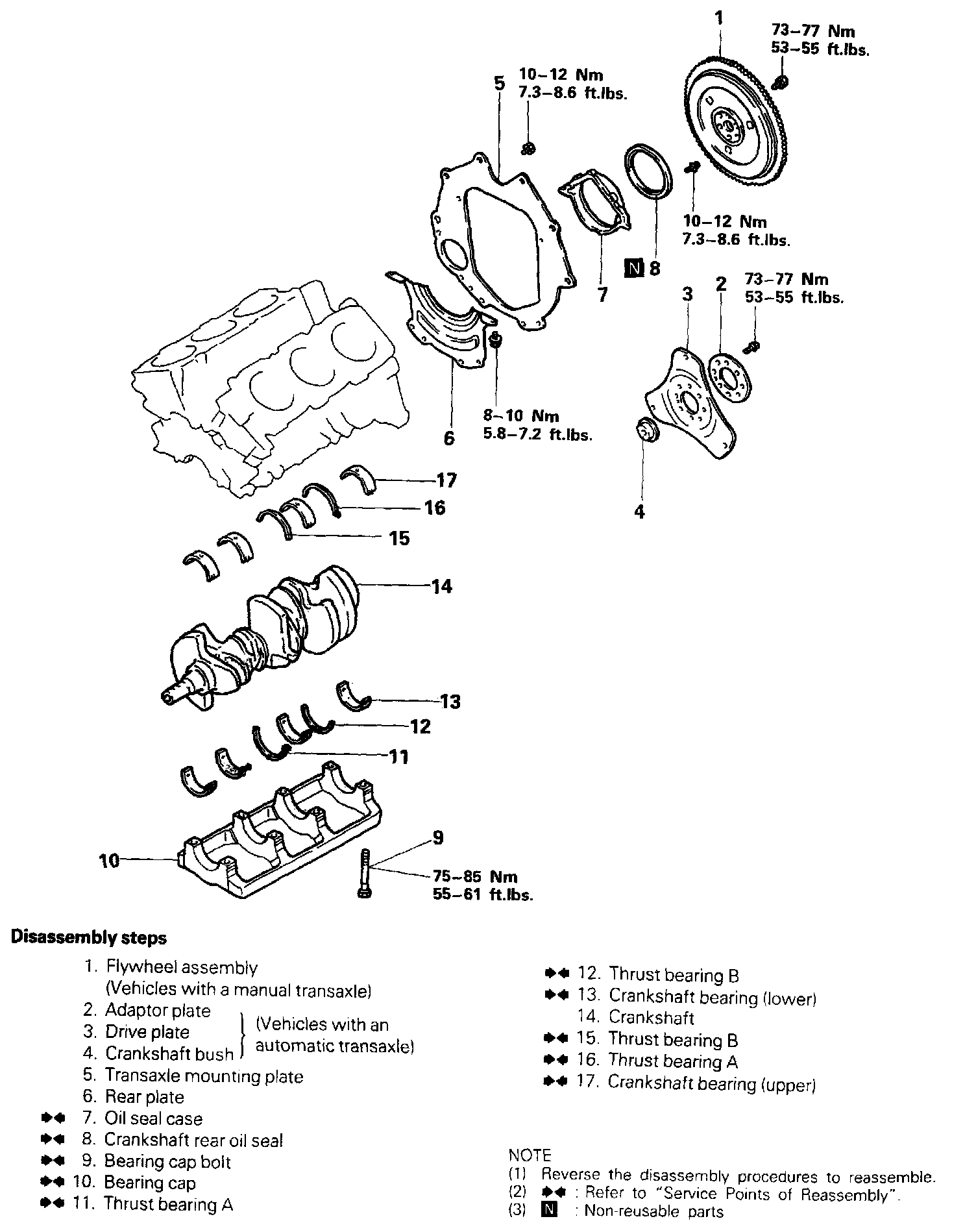

CRANKSHAFT, FLYWHEEL AND DRIVE PLATE
