M/T Technical Data

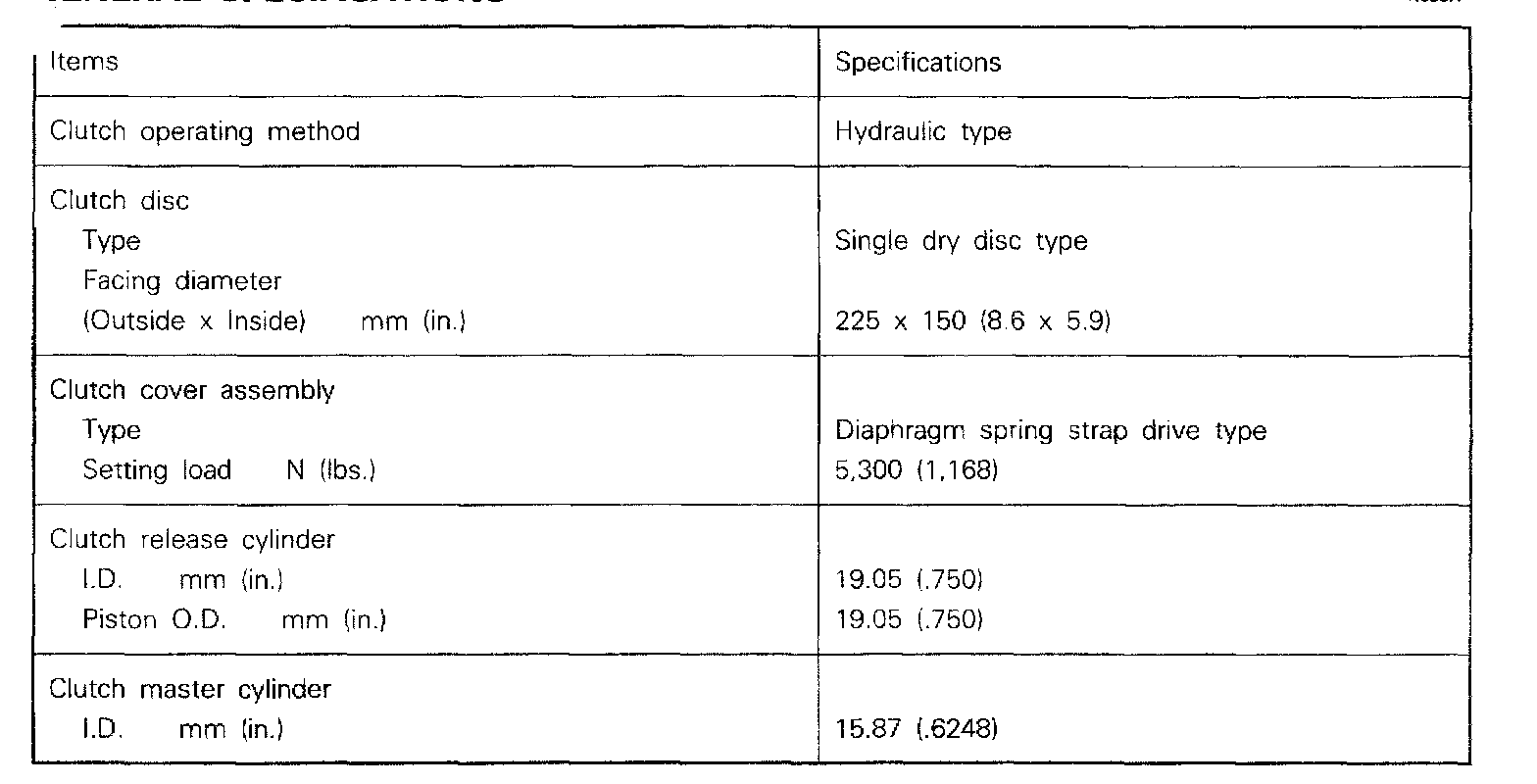

KM210-1 5-spd M/T, Clutch Dimensions:

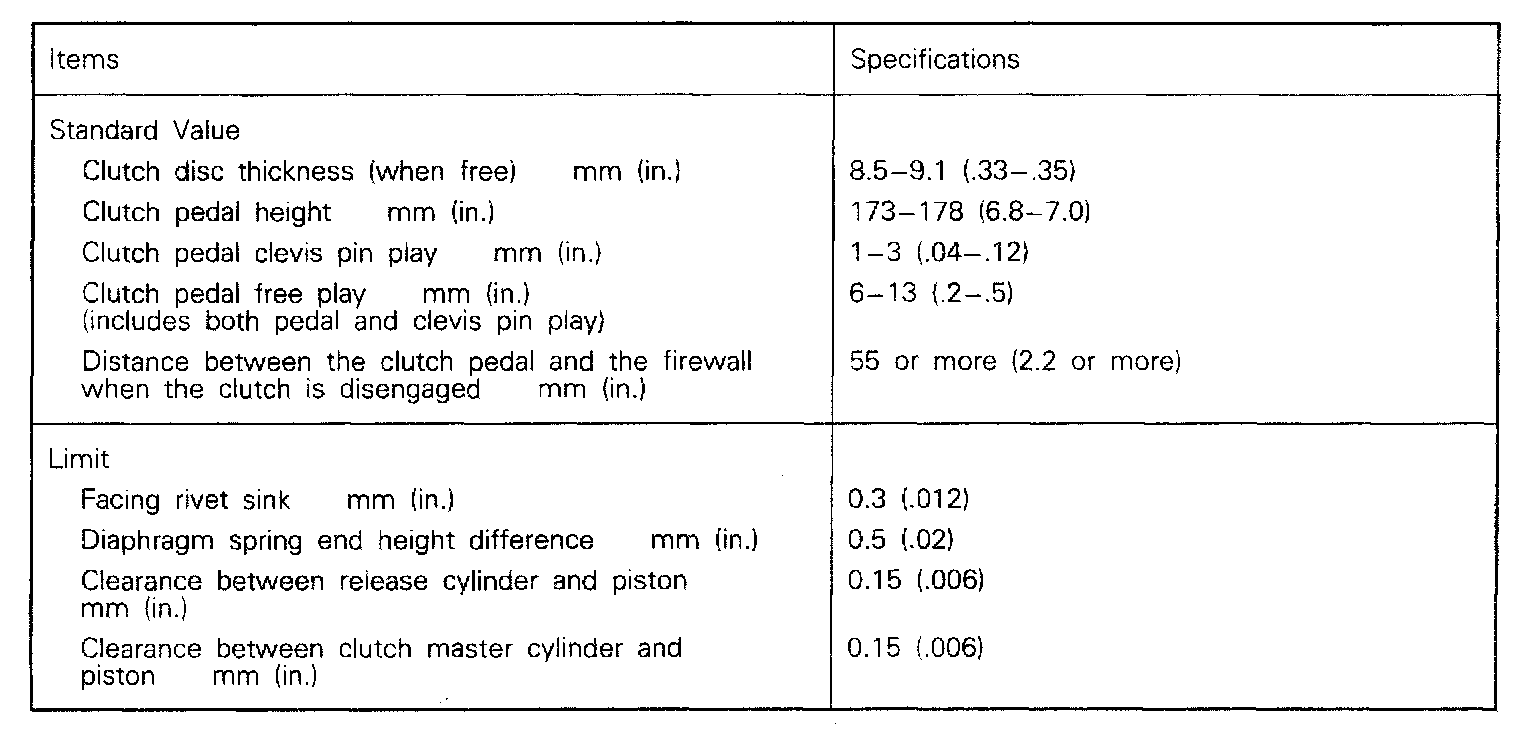

KM210-1 5-spd M/T, Clutch Standard Value & Limits:

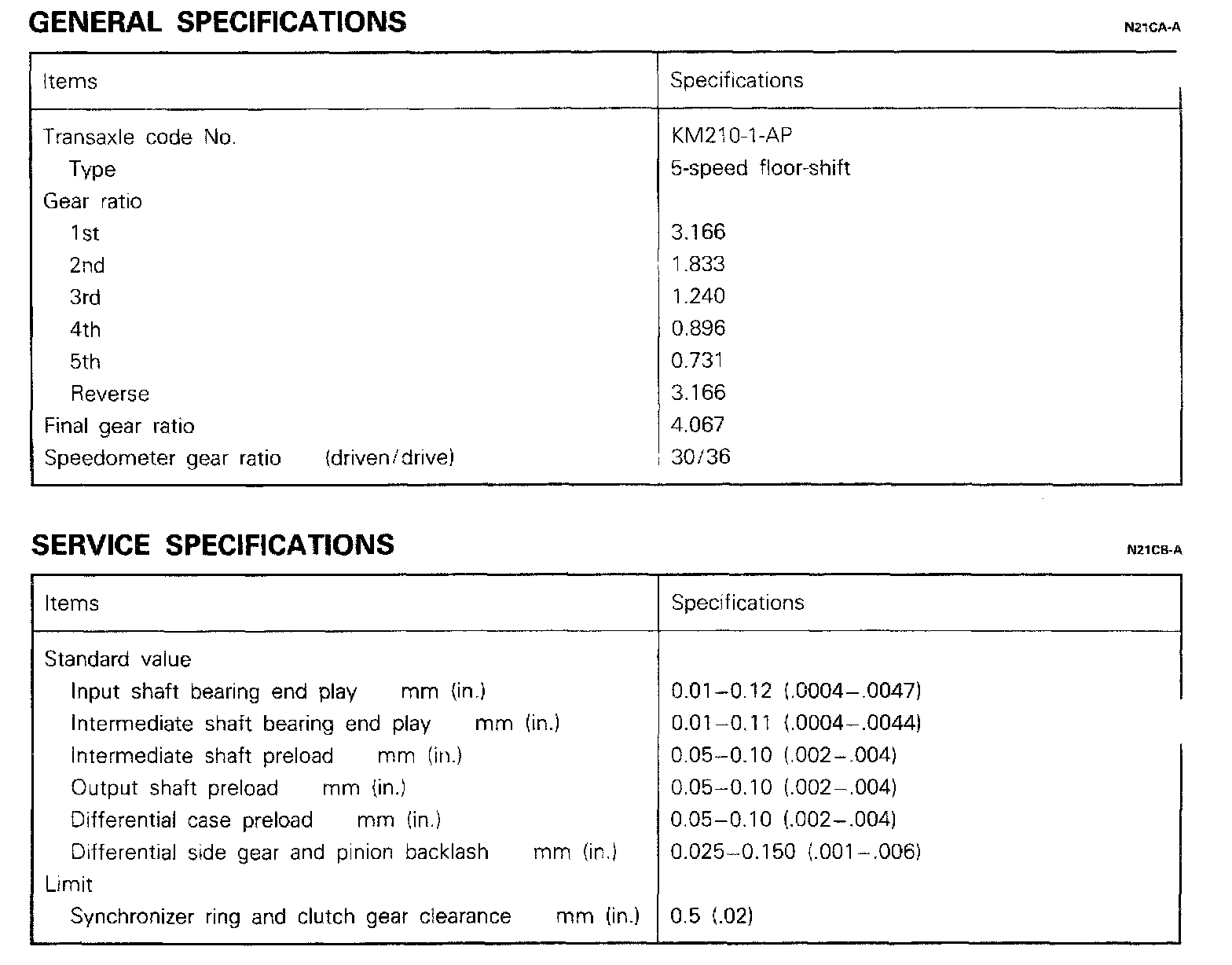

KM210-1 5-spd M/T, Gear Ratios & Standard Values & Limits:

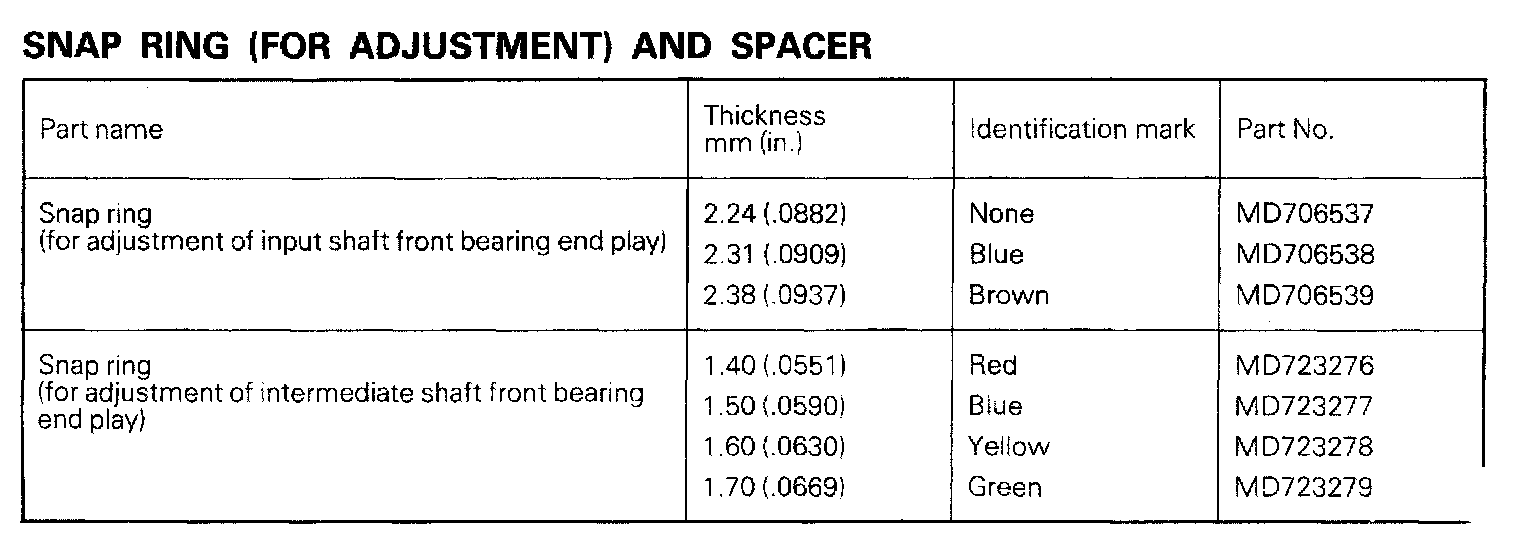

KM210-1 5-spd M/T, Input & Intermediate Bearing End Play:

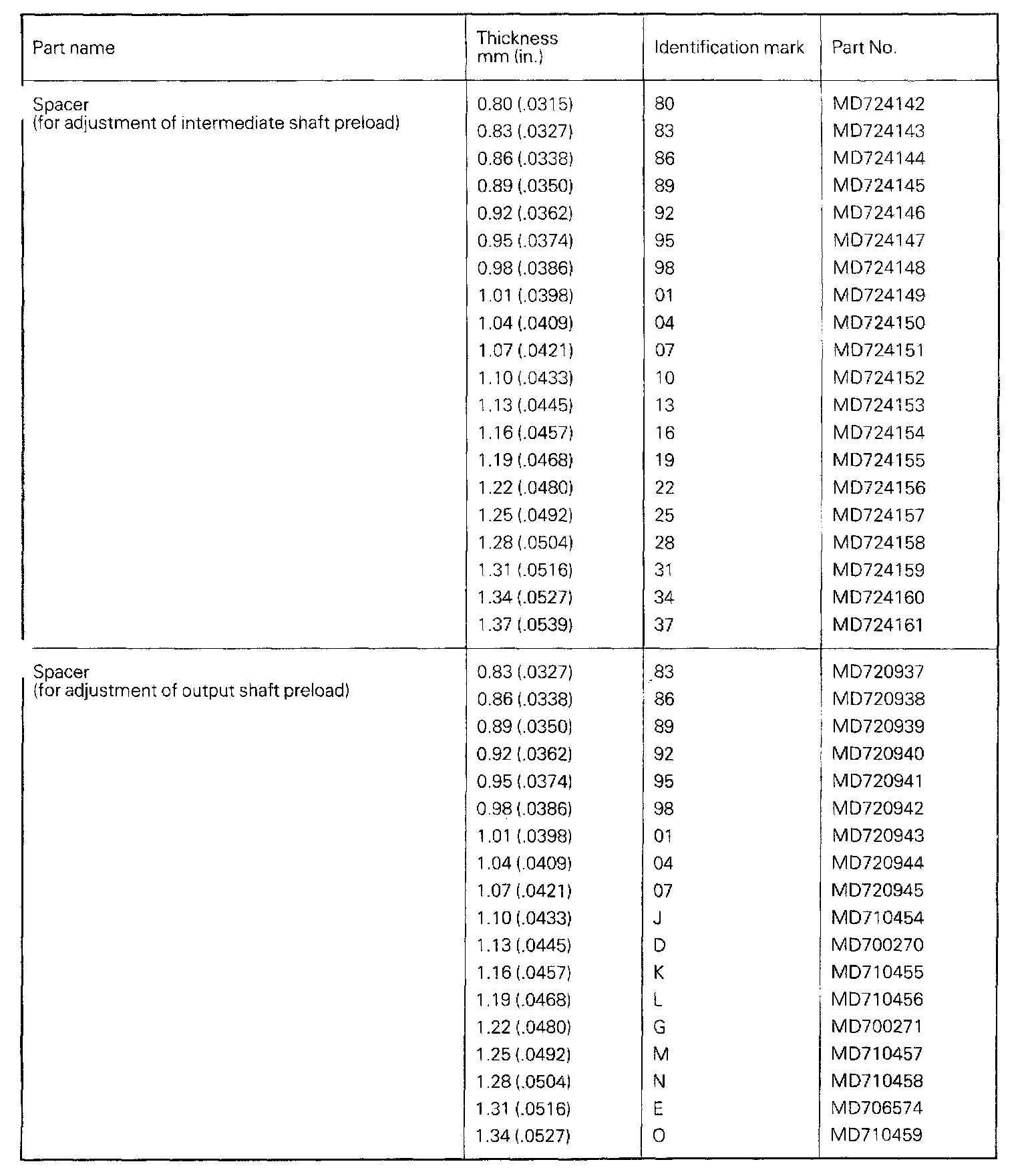

KM210-1 5-spd M/T, Intermediate & Output Shaft Preload:

KM210-1 5-spd M/T, Differential Case & Pinion Backlash:
