TDC Sensor

To test the Top Dead Center (TDC) Sensor located in the distributor, proceed as follows.

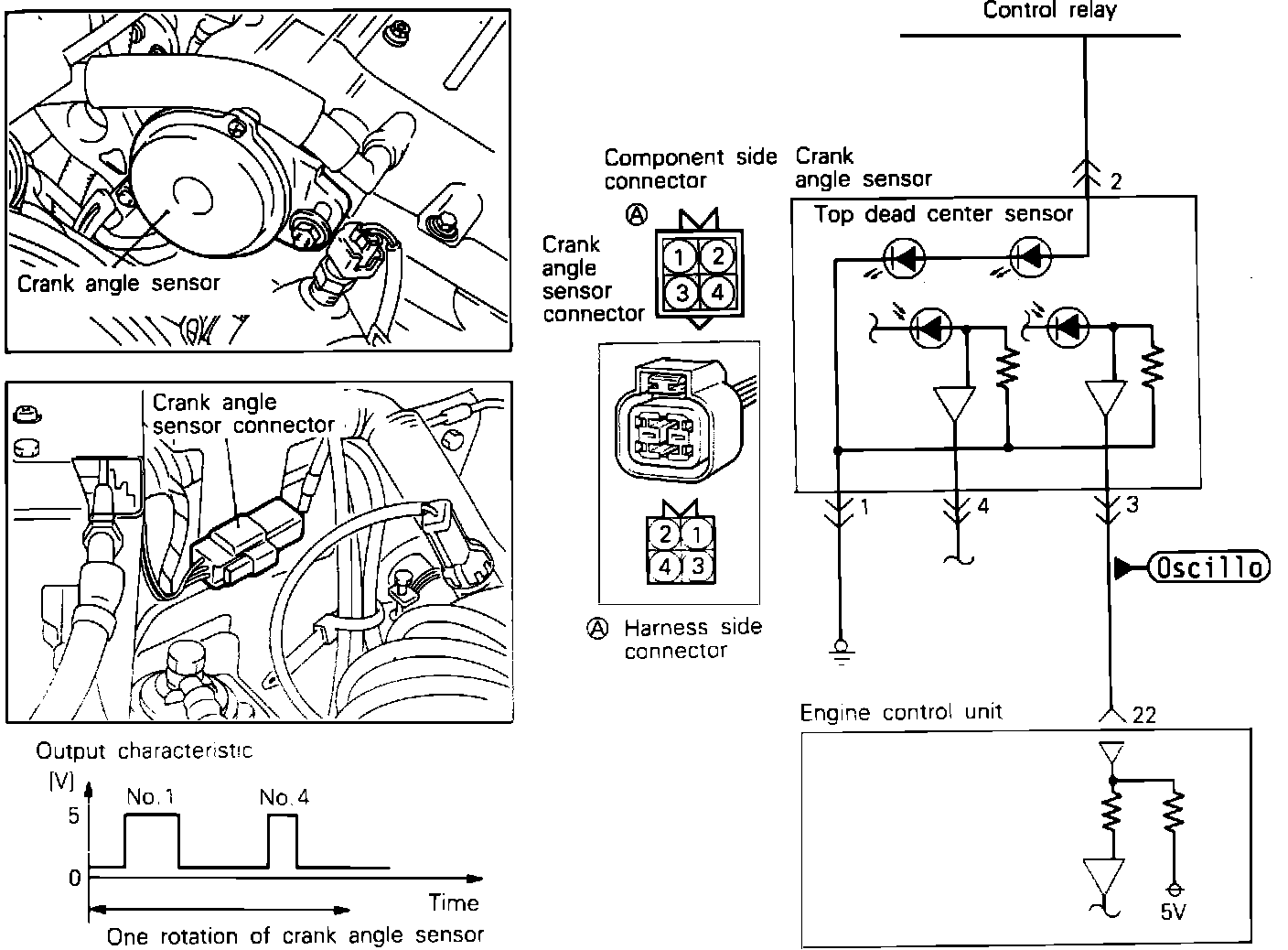

System Schematic:

OSCILLOSCOPE TESTING PROCEDURE:



1. Connect test leads from the oscilloscope to the #3 terminal of the sensor connector and run the engine at idle speed.



Check the waveform and compare it to the diagram shown.

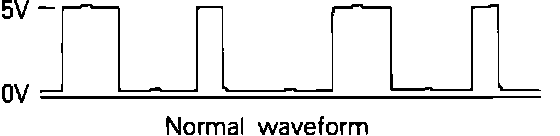

Scope Pattern:

VOLTAGE TESTING PROCEDURE:

1. Connect a voltmeter between terminal 1 and 3 of the crank angle sensor connector.
Terminal 3: Top Dead Center (TDC) signal
Terminal 1: Sensor ground

2. Measure the output voltage of the terminals while cranking the engine.
Standard Approximate Value

Terminal 3: 2.0 - 2.5v


3. When the voltage is abnormal, check the sensor power and ground circuits.

Refer to COMPUTERIZED ENGINE CONTROLS for further information.
