Manual Transaxle

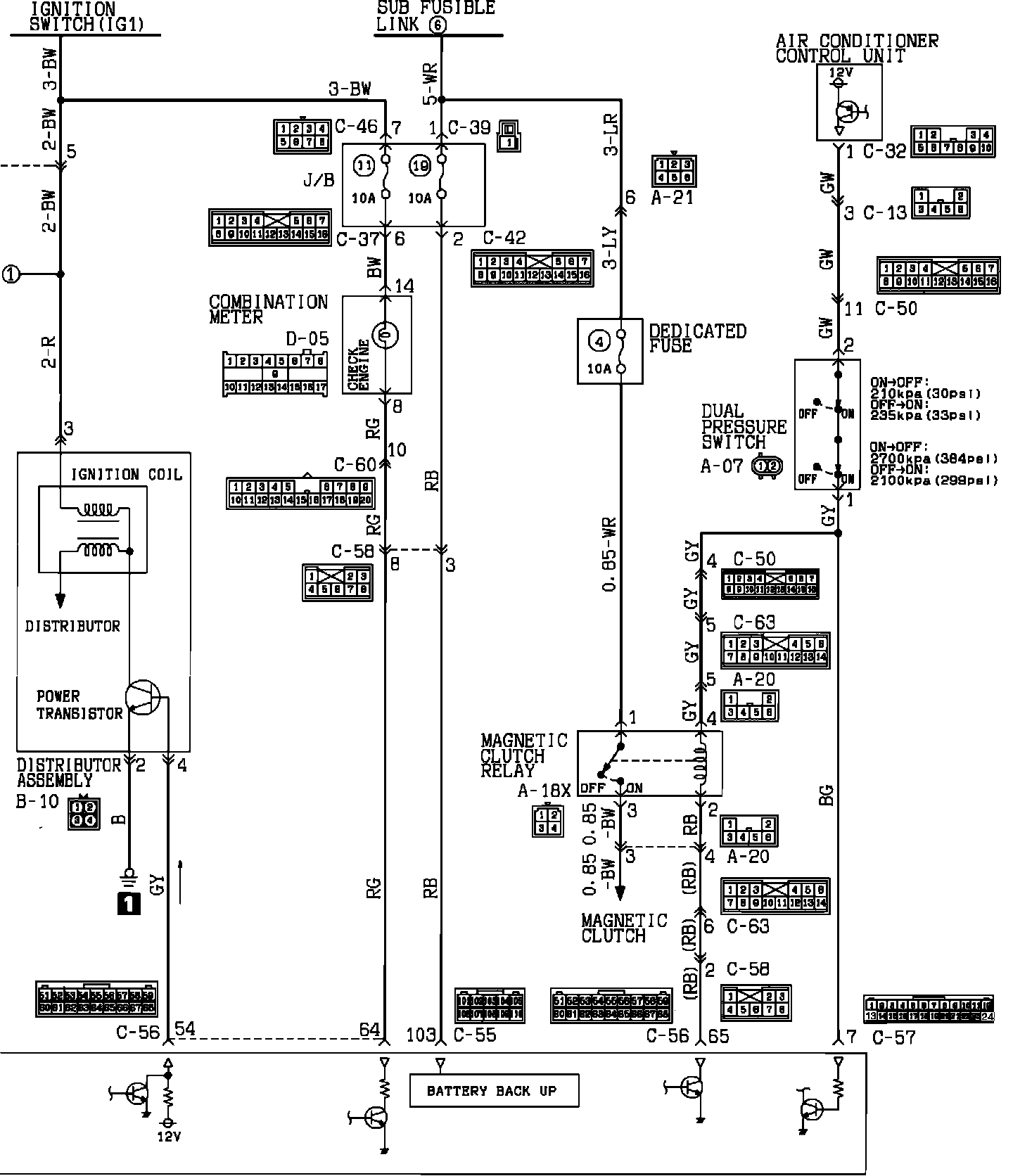

Fuel Injection (Engine With Manual Transmission):





Fuel Injection (Engine With Manual Transmission):





Fuel Injection (Engine With Manual Transmission):





Fuel Injection (Engine With Manual Transmission):
