Cruise Control: Service and Repair

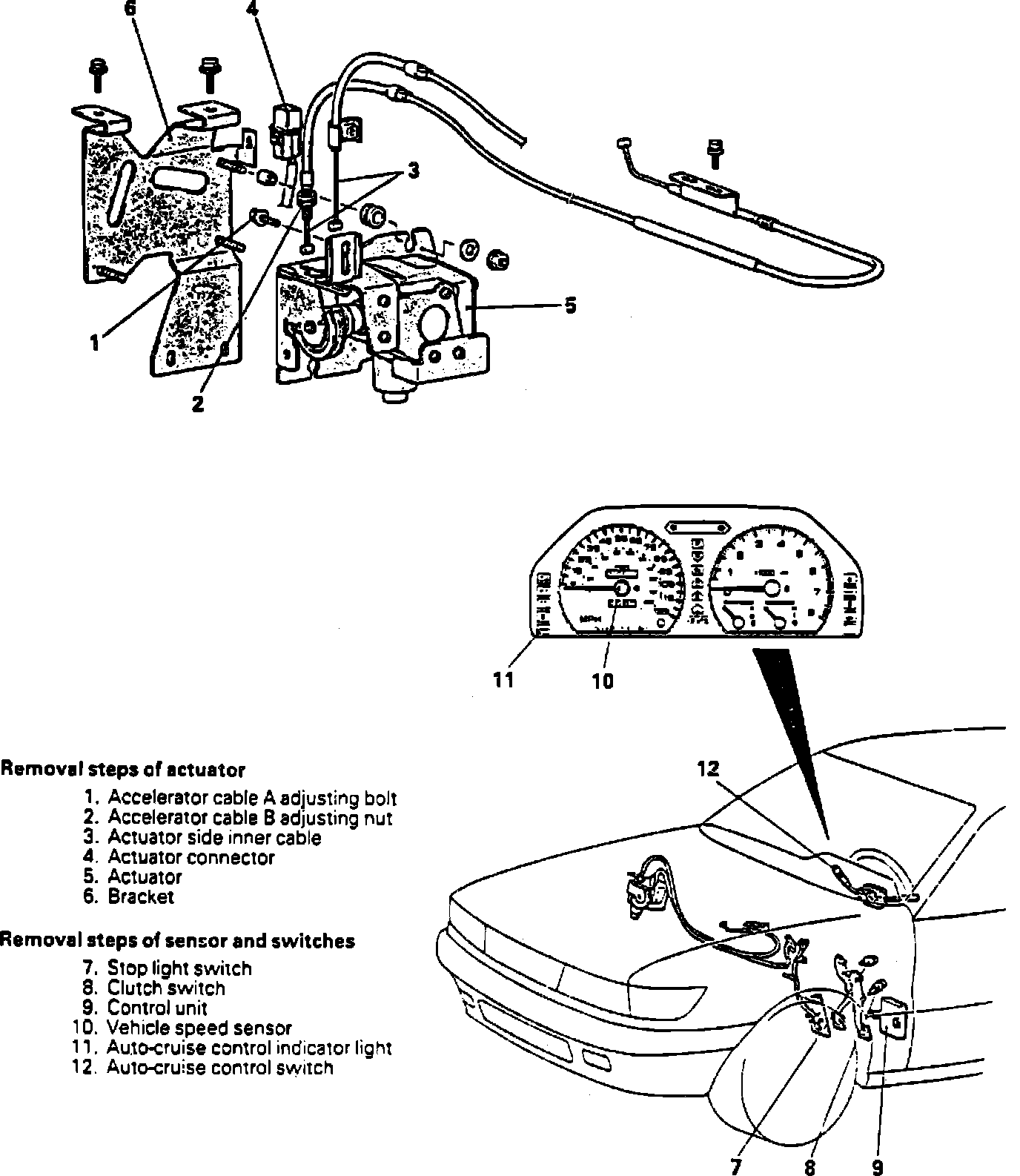

Fig. 37 Replacing Speed Control Components:



Fig. 39 Replacing Speed Control Components:
