Mirage L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>

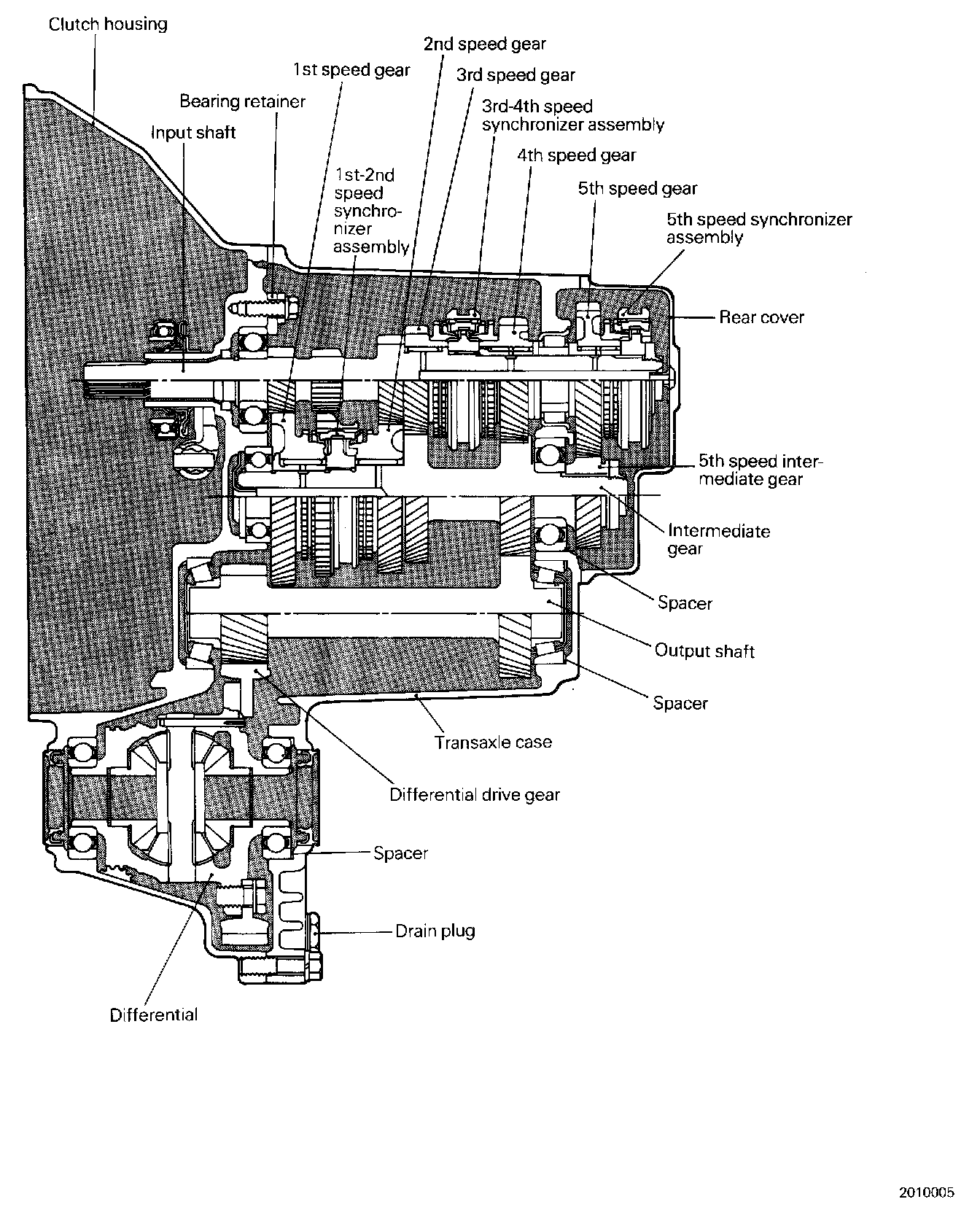

System Diagram
System Diagram
F5M21:
