Mirage L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
Component Locations
Component Locations

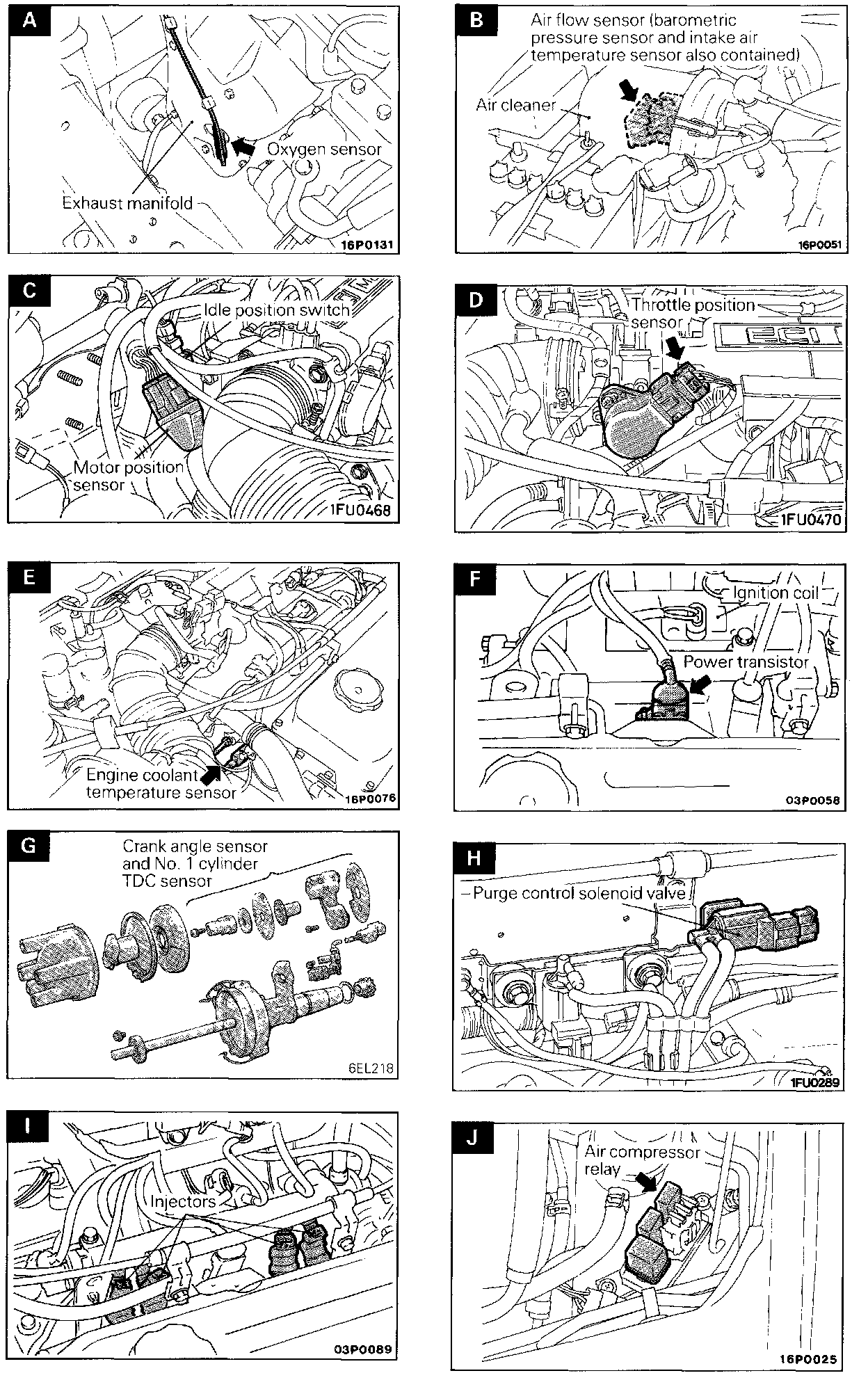

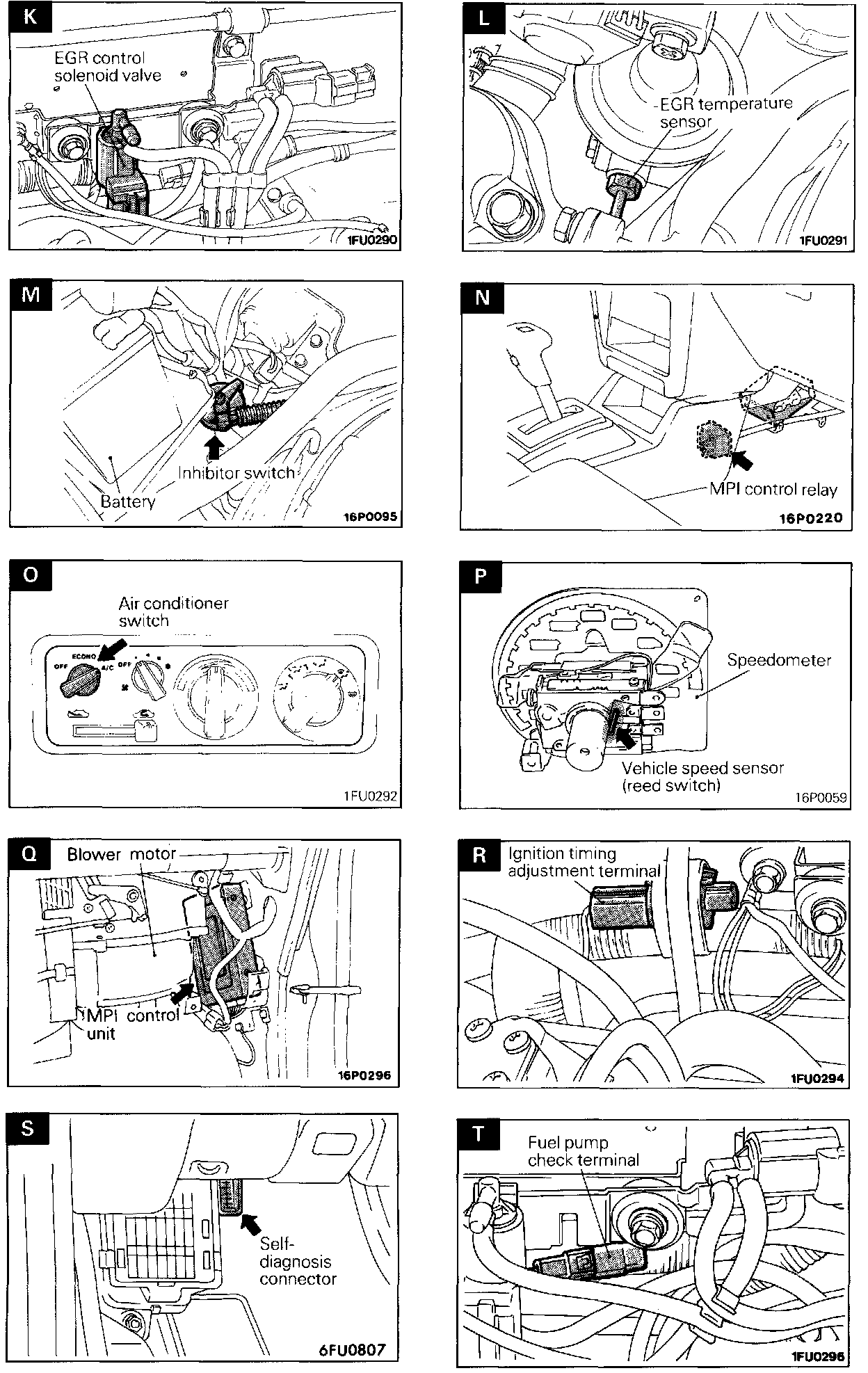

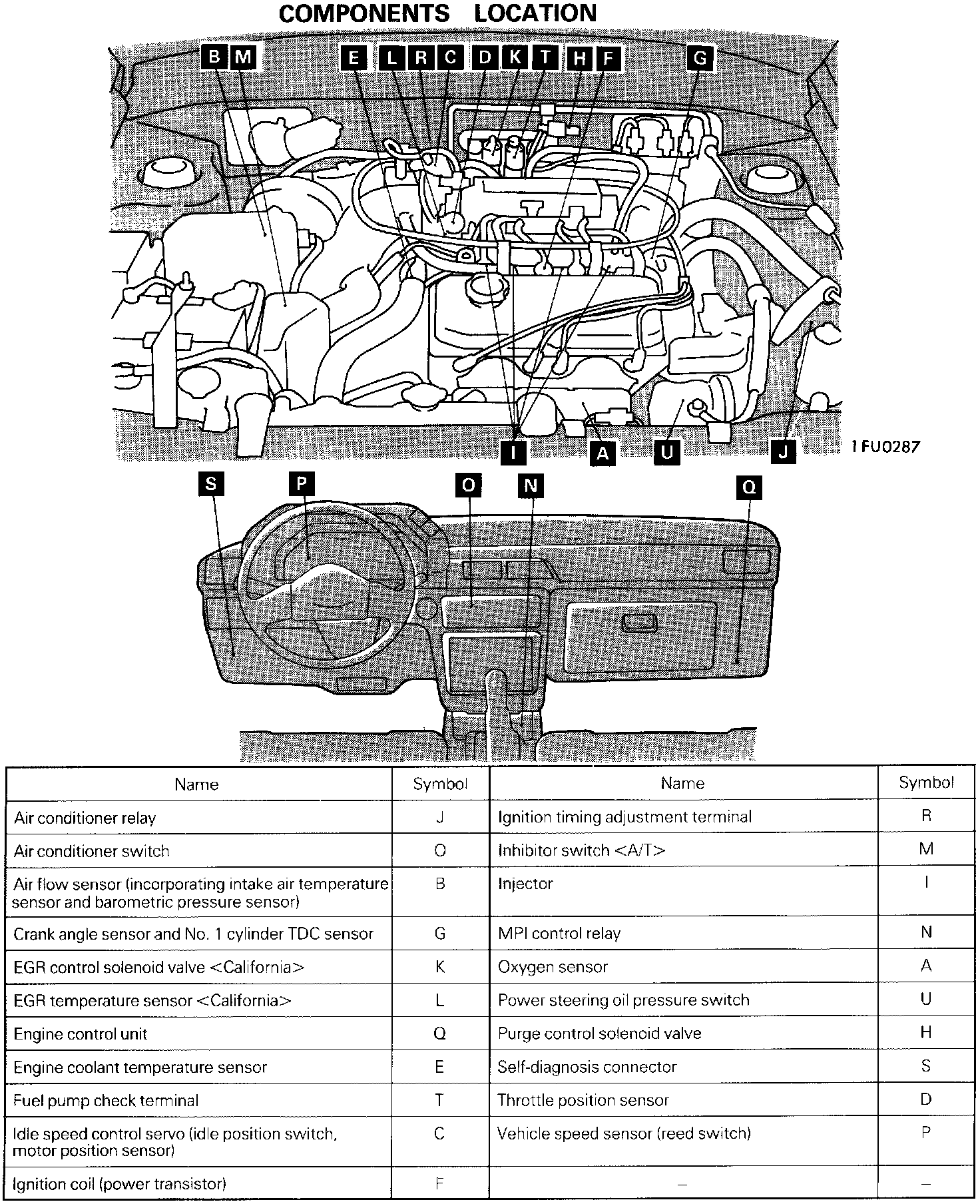

MPI COMPONENTS LOCATION ON VEHICLE
