Oxygen Sensor: Testing and Inspection

INSPECTION









Caution:
Before checking, warm up the engine until engine coolant temperature reaches 85 to 95°C (185 to 205°F).
Use an accurate digital voltmeter.

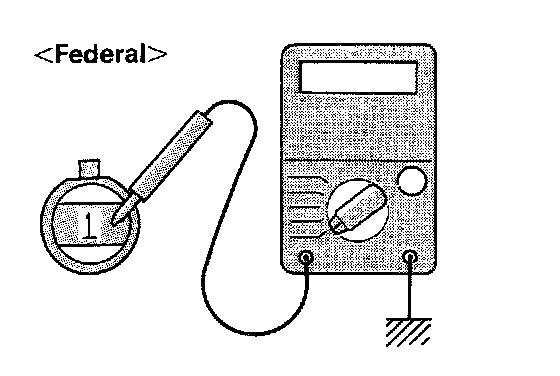

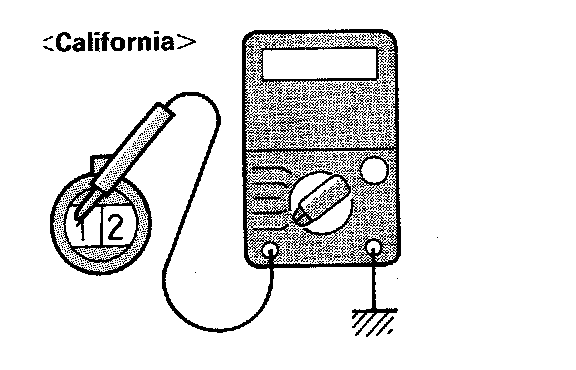

(1) Disconnect the oxygen sensor connector and connect a voltmeter to the oxygen sensor connector.

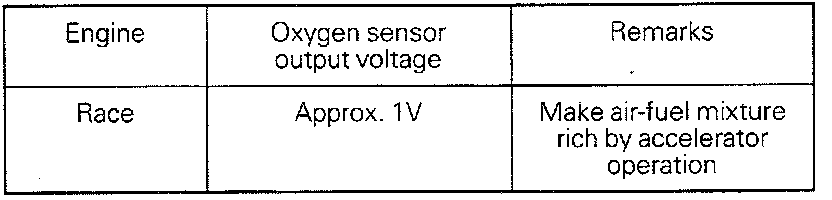

(2) While repeating engine racing, measure the oxygen sensor output voltage.
