Cruise Control Module: Locations

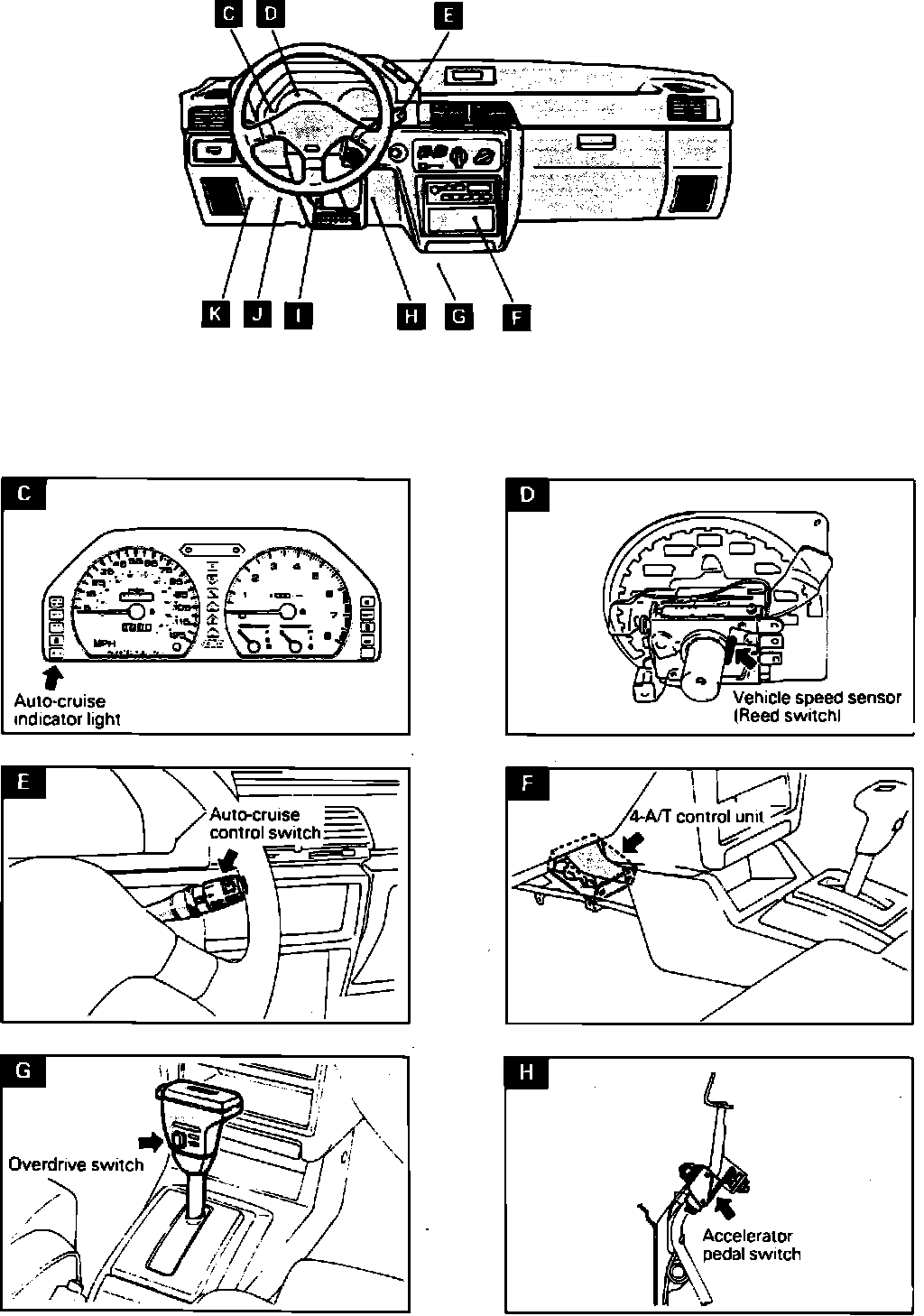

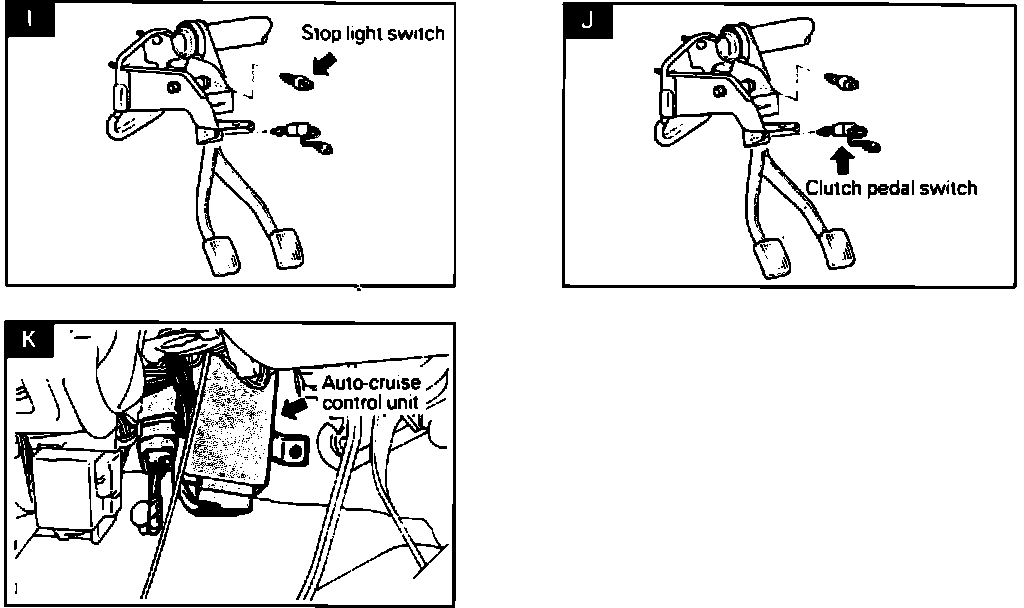

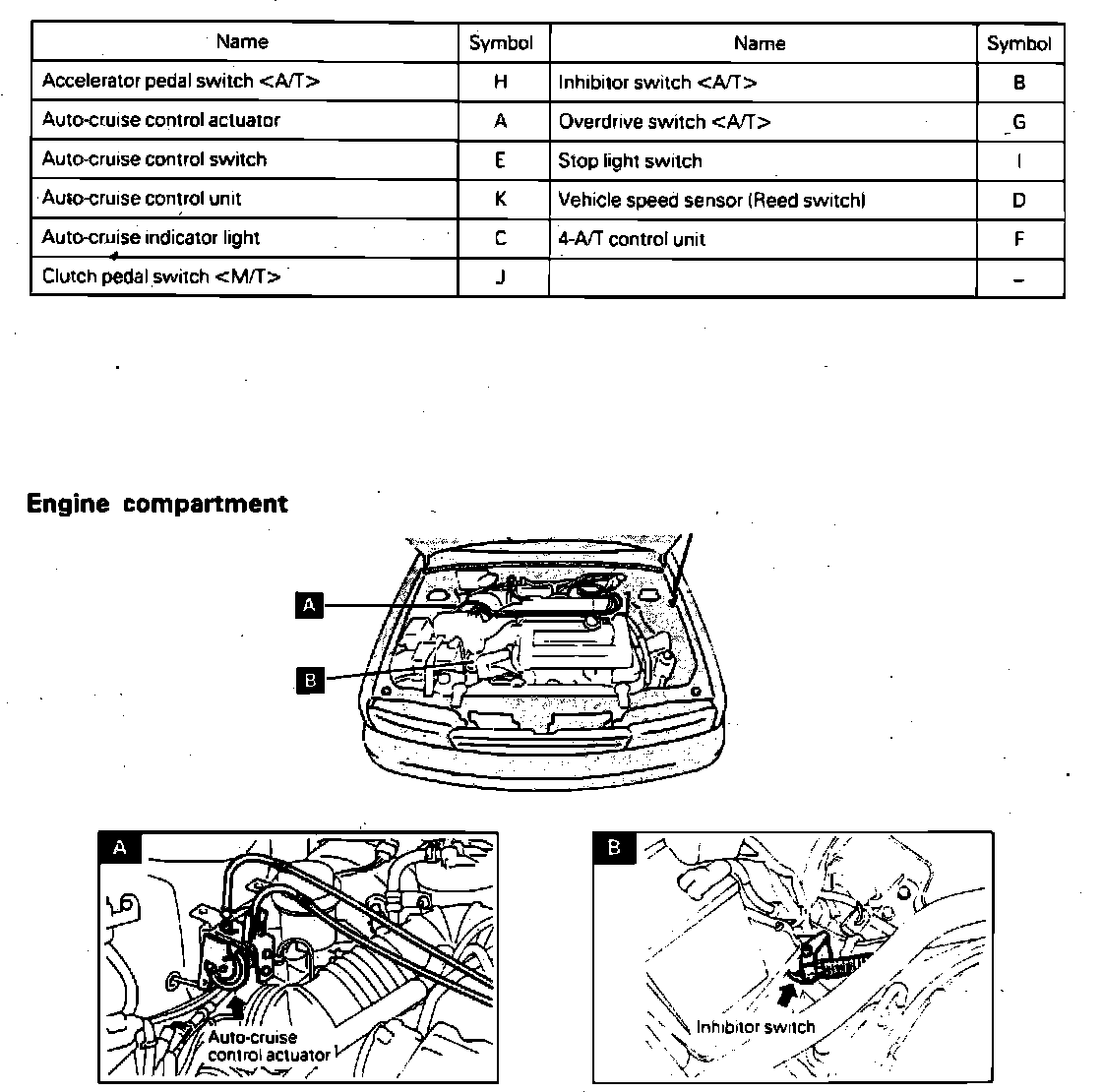

Cruise Control Component Locations (Part 1 Of 3):




Cruise Control Component Locations (Part 1 Of 3):




Cruise Control Component Locations (Part 1 Of 3):




Behind LH Side Of I/P
