Mitsubishi
>>
1990
>>
Sigma V6-2972cc 3.0L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
California Models
California Models

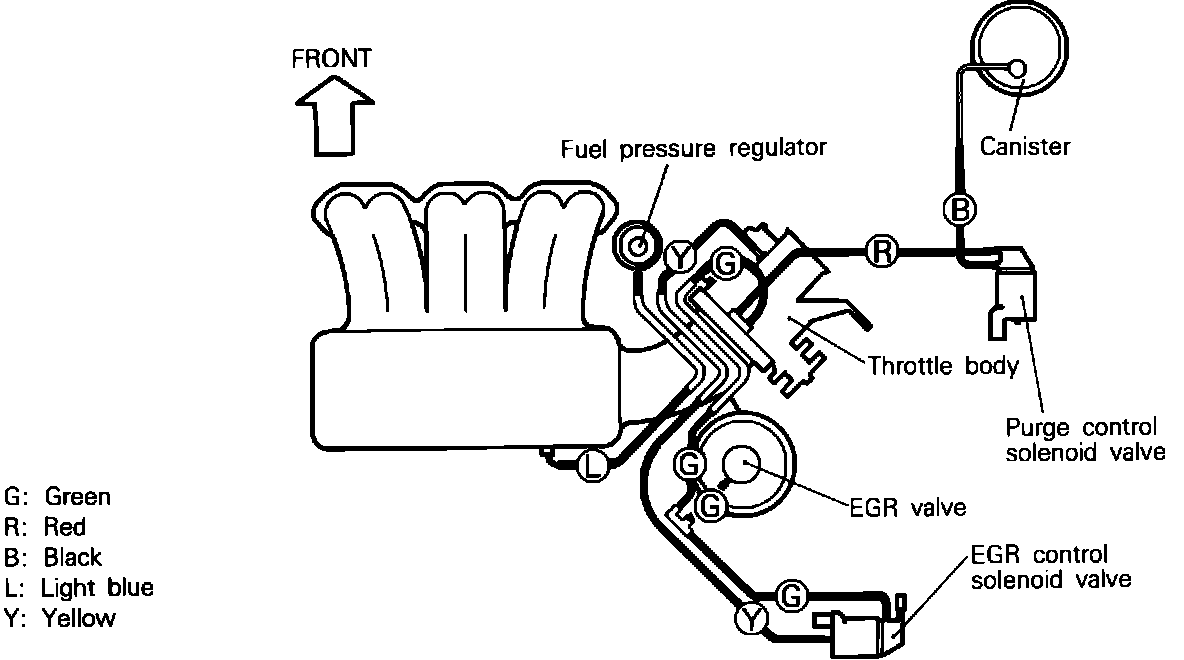

Fig. 11 Vacuum Hose Routing (California):
