Mitsubishi
>>
1990
>>
Sigma V6-2972cc 3.0L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Federal Models
Federal Models

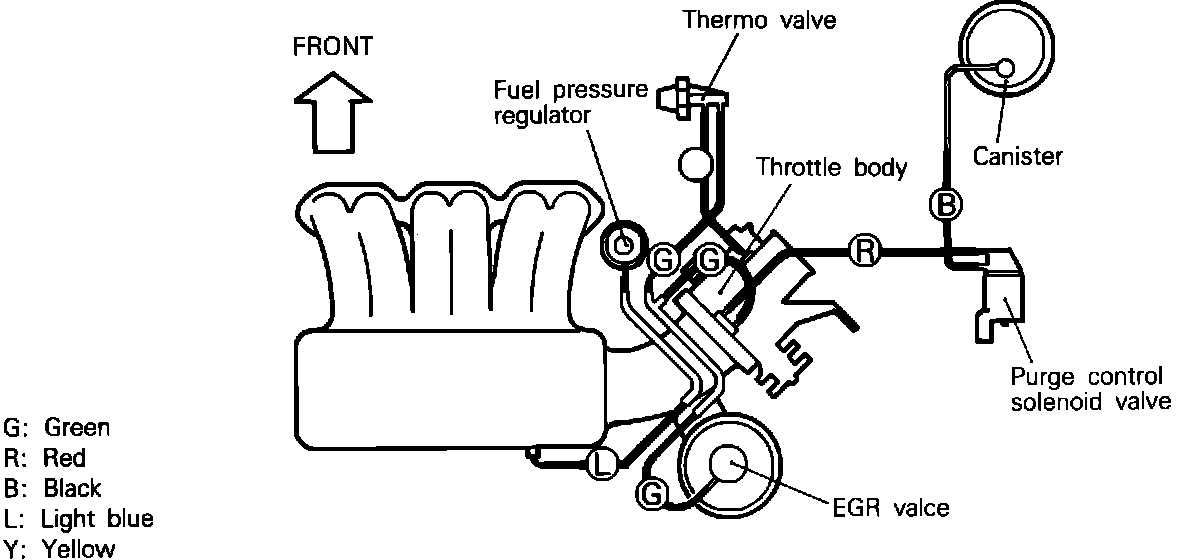

Fig. 10 Vacuum Hose Routing (Federal):
