Manual Transaxle

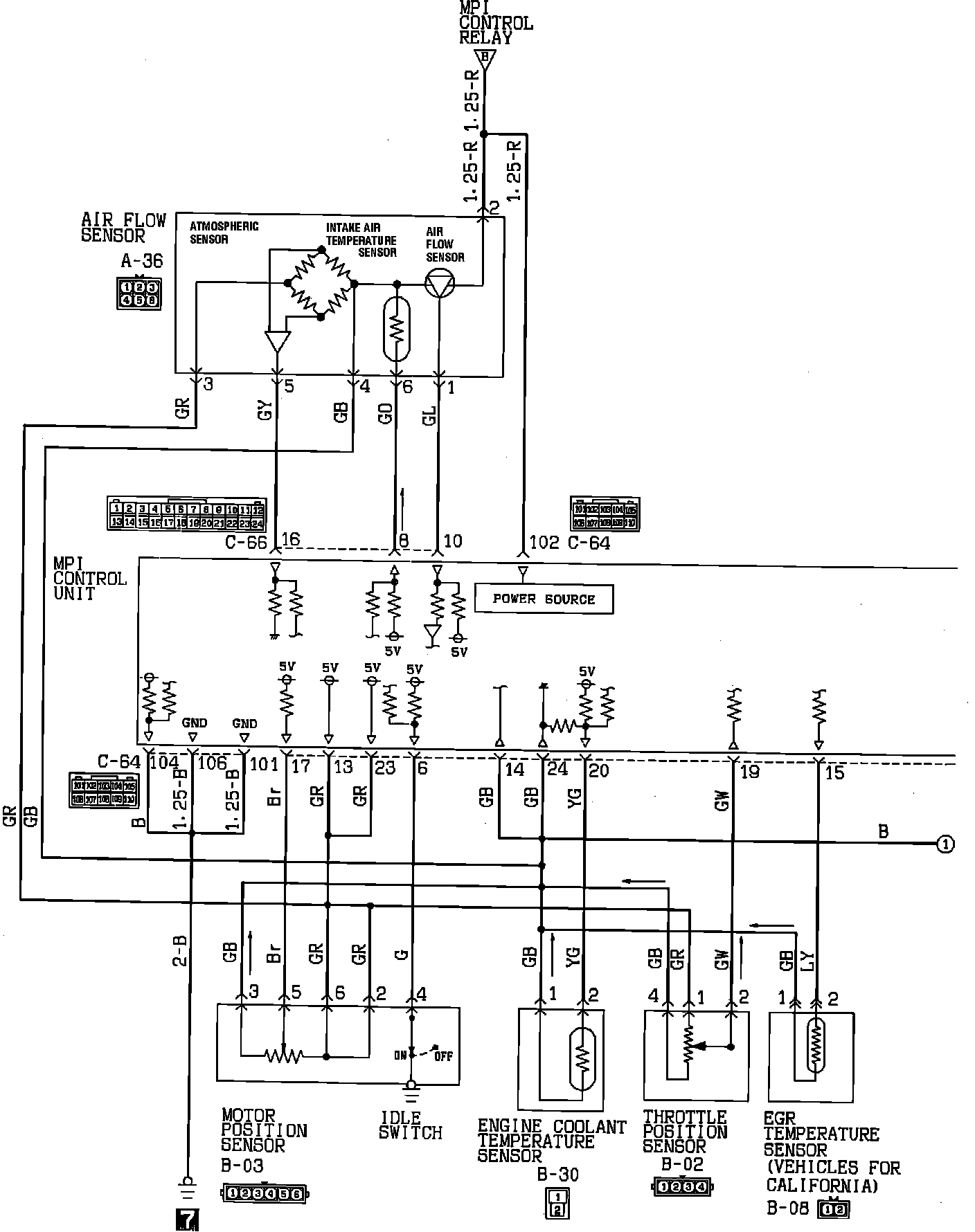

MPI Circuit Diagram 1 Of 4:

PART 1 OF 4

MPI Circuit Diagram 2 Of 4:

PART 2 OF 4

MPI Circuit Diagram 3 Of 4:

PART 3 OF 4

MPI Circuit Diagram 4 Of 4:

PART 4 OF 4

For further information, refer to CHASSIS ELECTRICAL DIAGRAMS.
