Home >> Mitsubishi >> 1991 >> Galant L4-2.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Computers and Control Systems

Computers and Control Systems

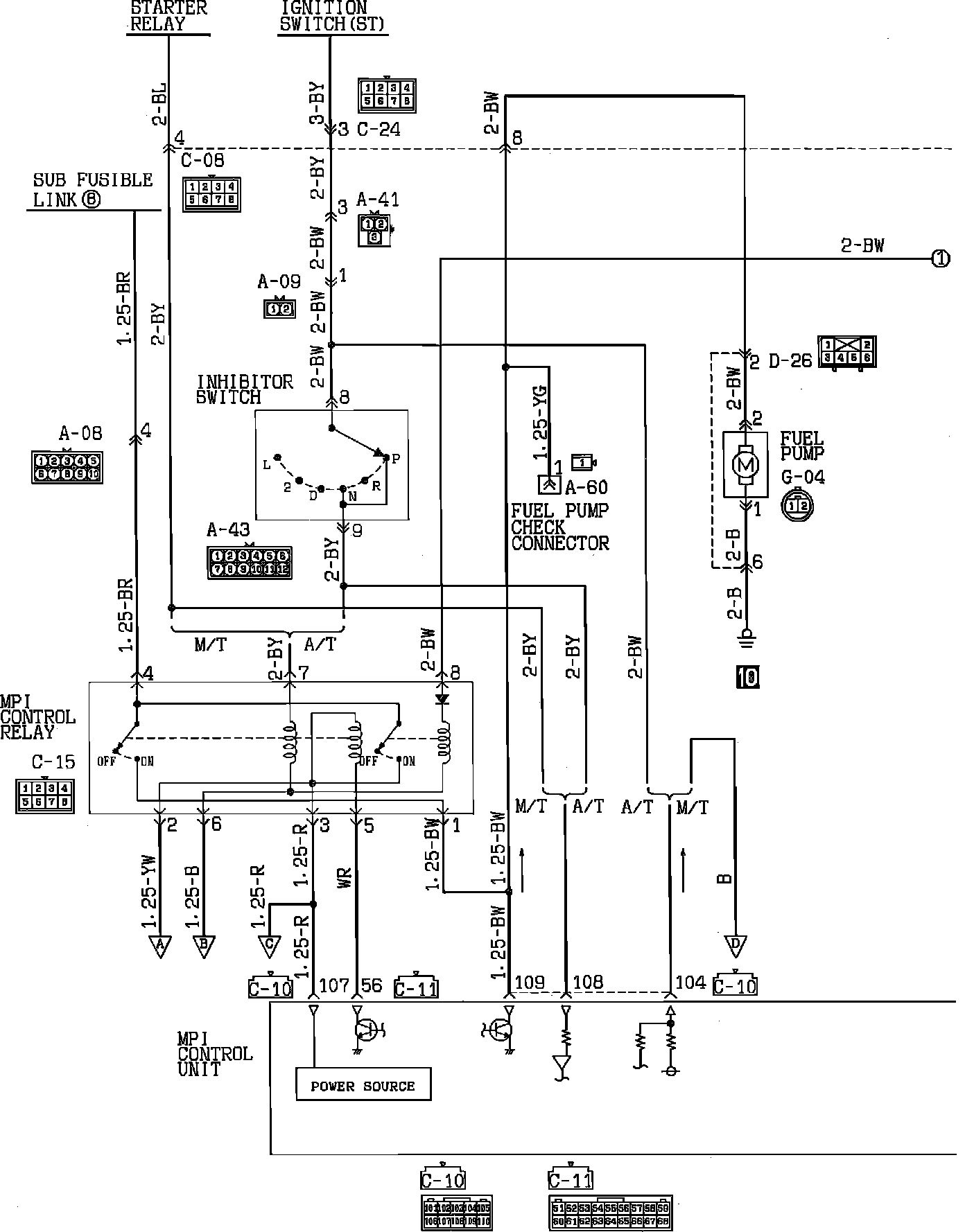

Engine Management:

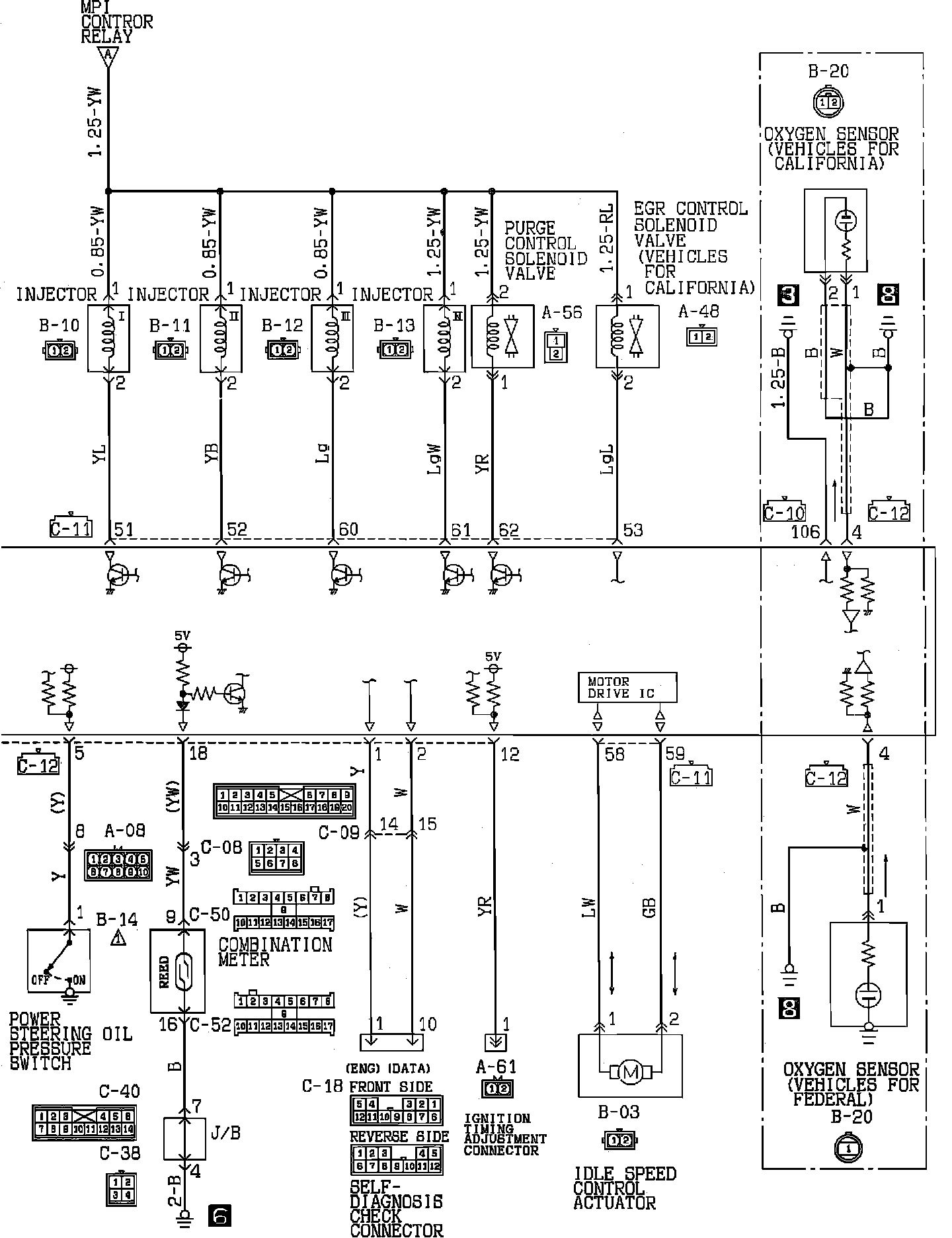

Engine Management:

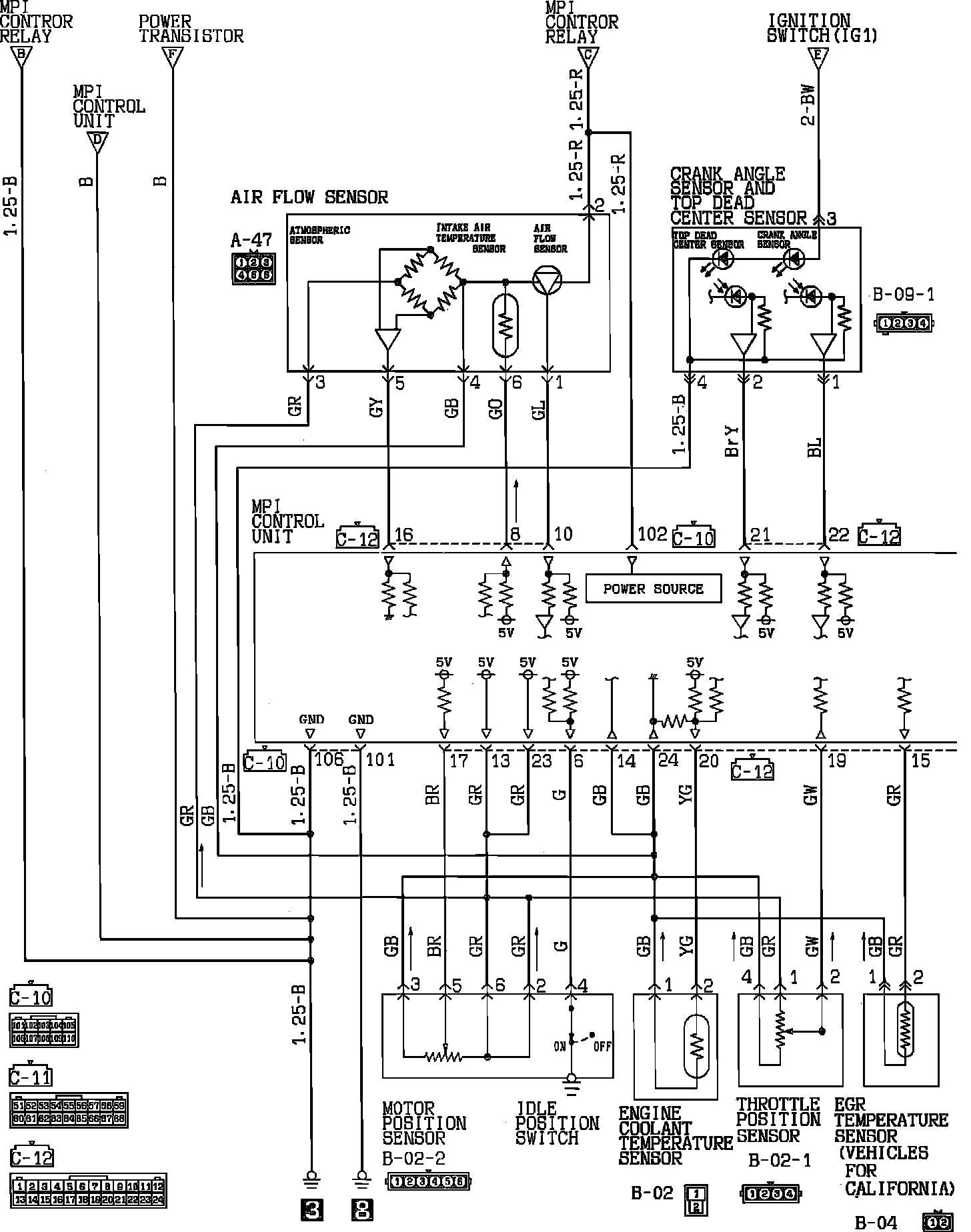

Engine Management:

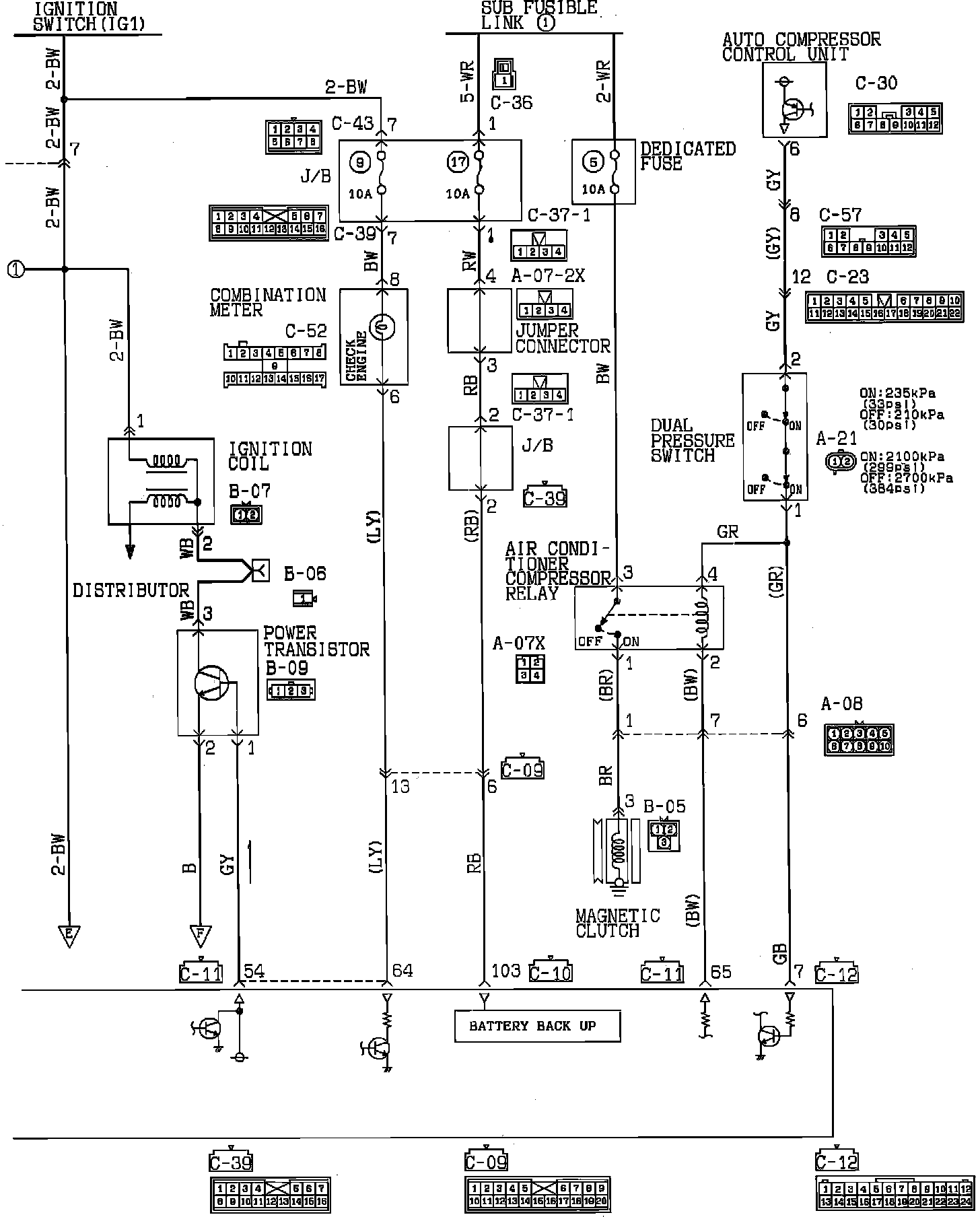

Engine Management:
