Diagram Information and Instructions

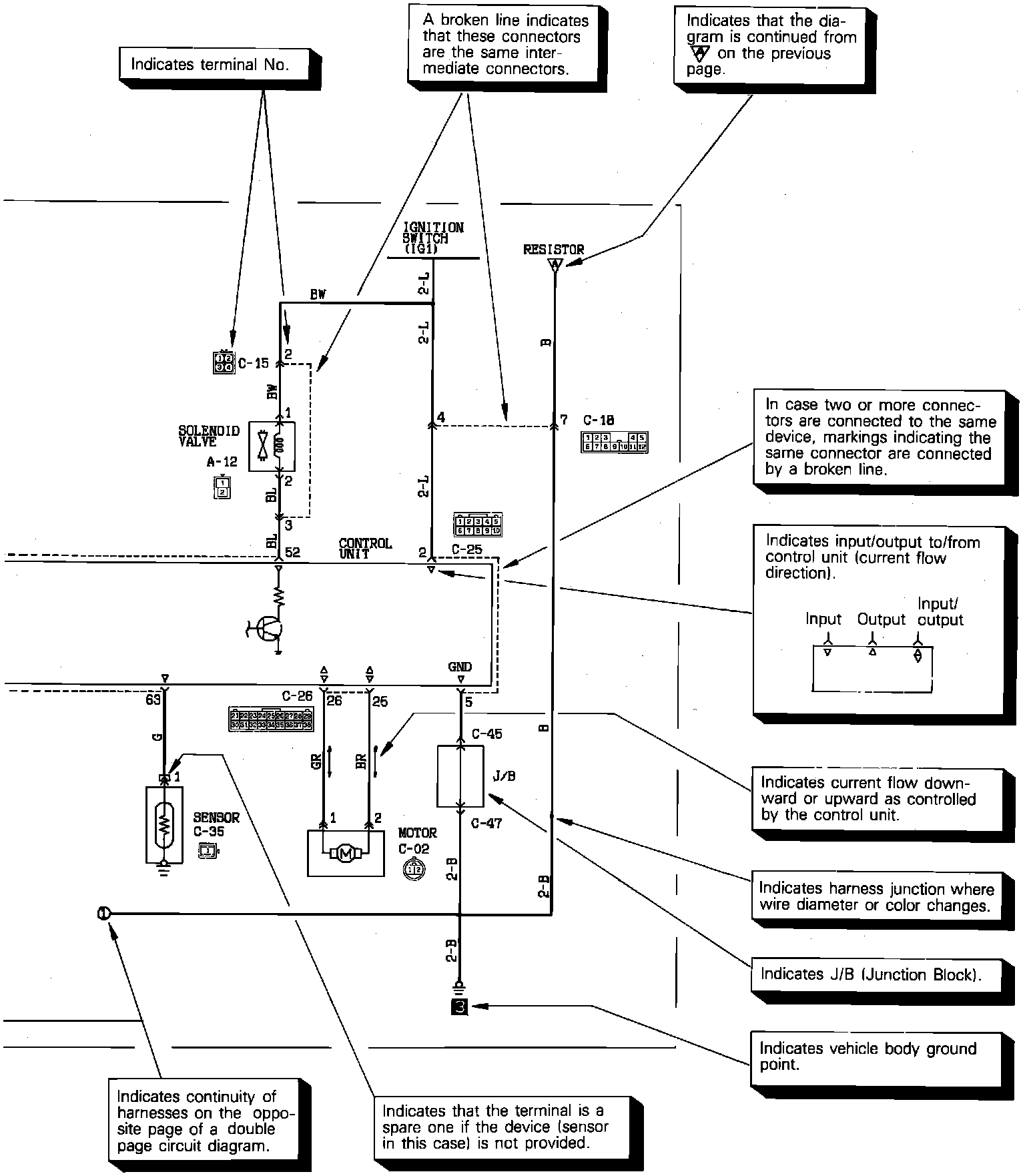

Symbol Identification And Key To Wiring Diagrams:

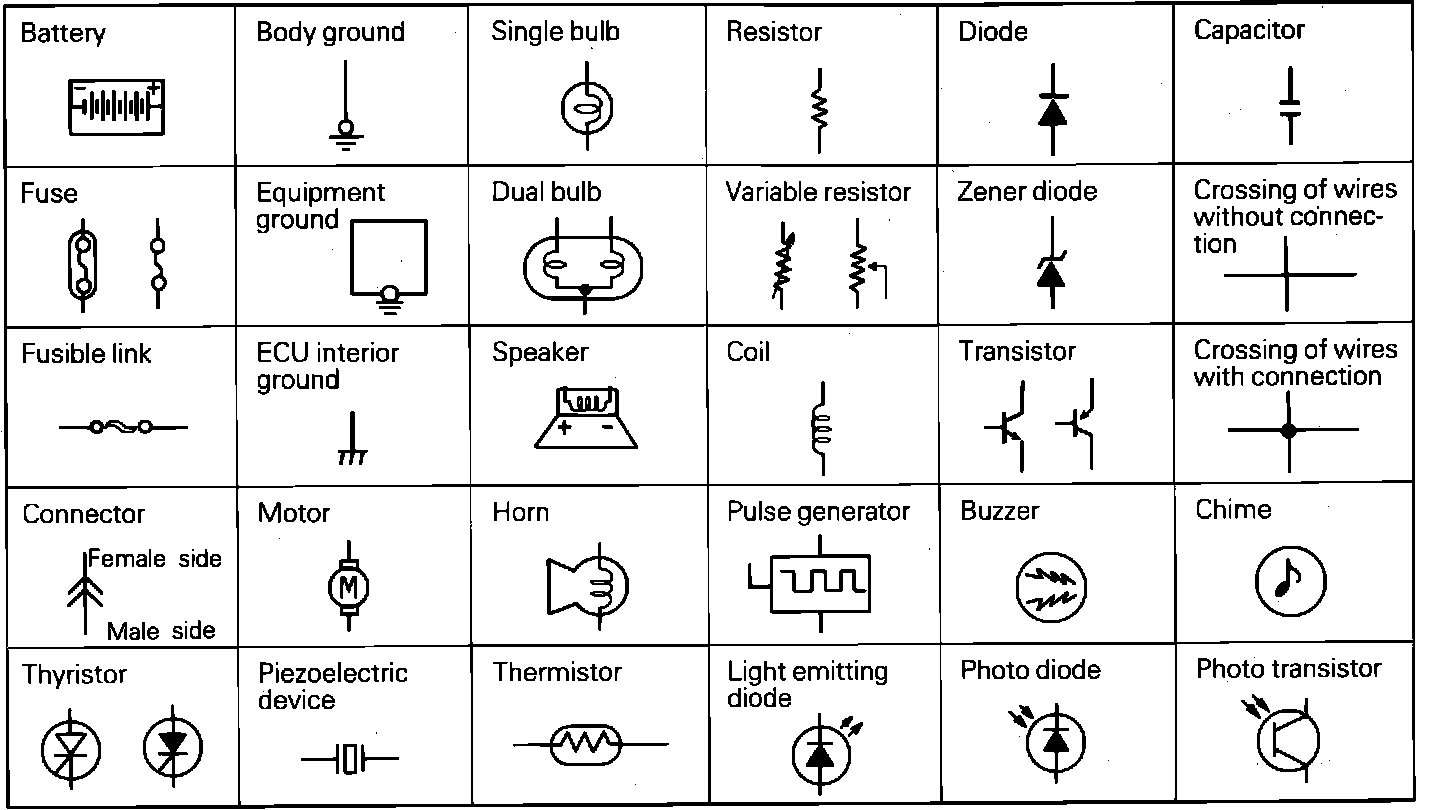

Symbol Identification And Key To Wiring Diagrams:

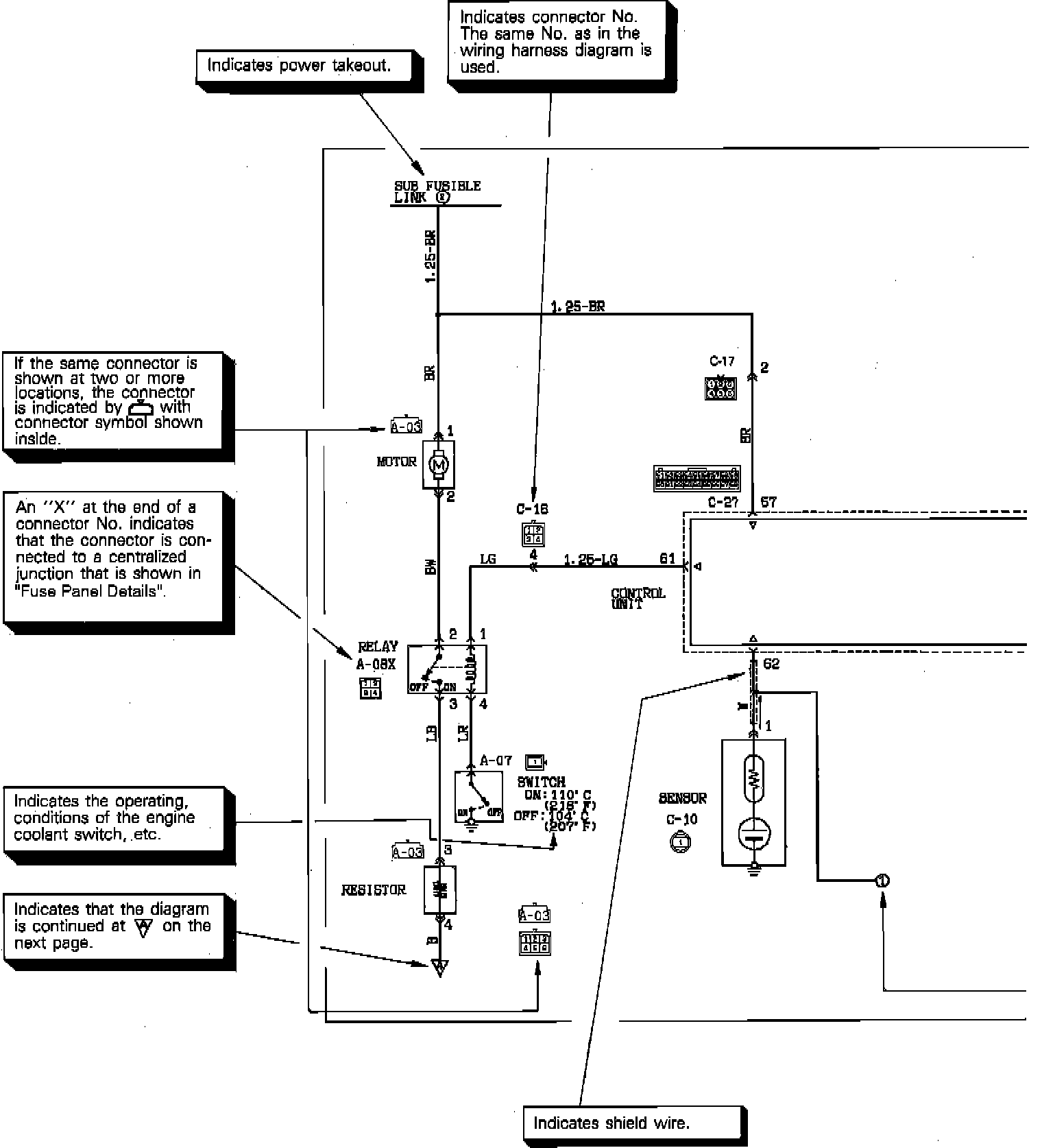

Symbol Identification And Key To Wiring Diagrams:
