Federal Models
Federal Models

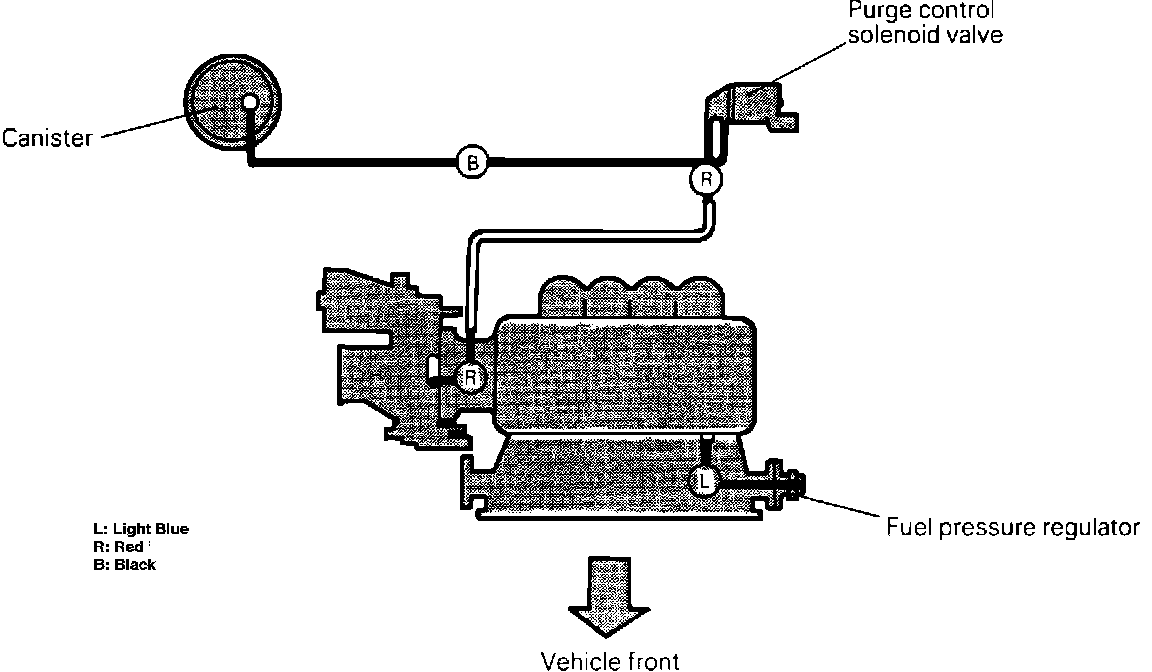

Vacuum Hose Diagram:
Vacuum Hose Diagram:

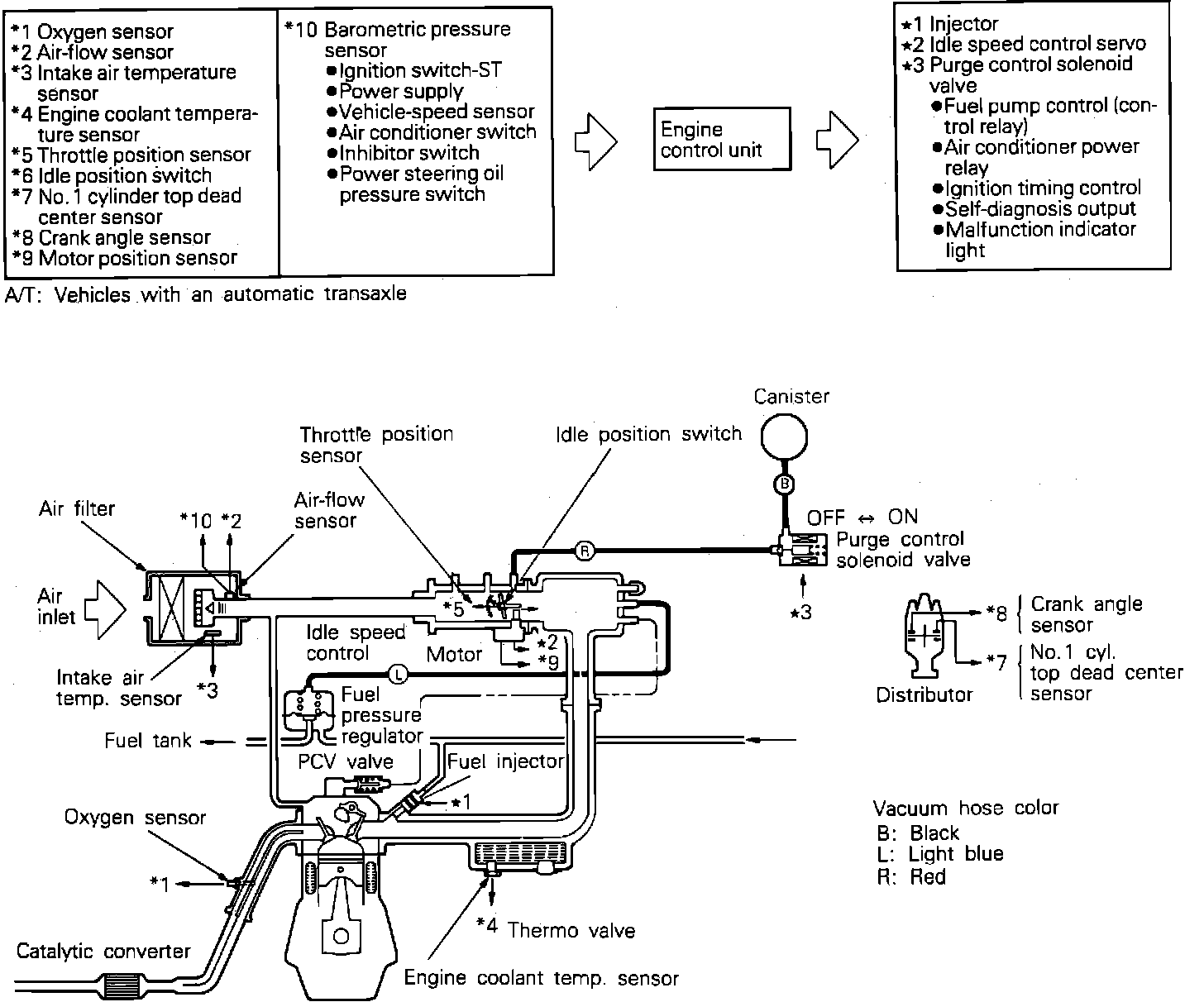

Fuel Control System (Federal):
