Shift Interlock Control Module
>>

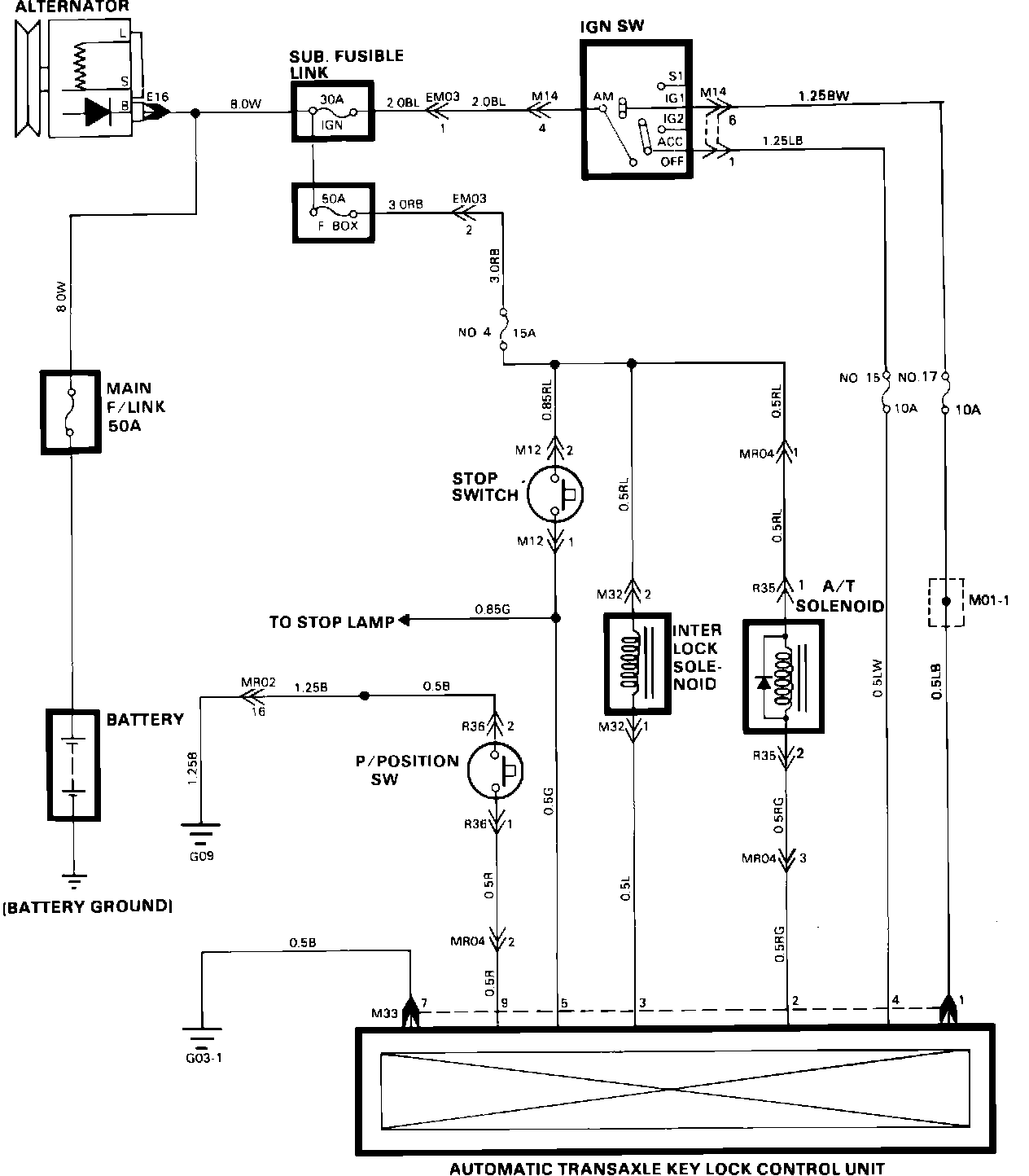

Wiring Diagram
Wiring Diagram
Automatic Transaxle Controls (Transaxle Key Lock):
