Compressor Clutch: Service and Repair

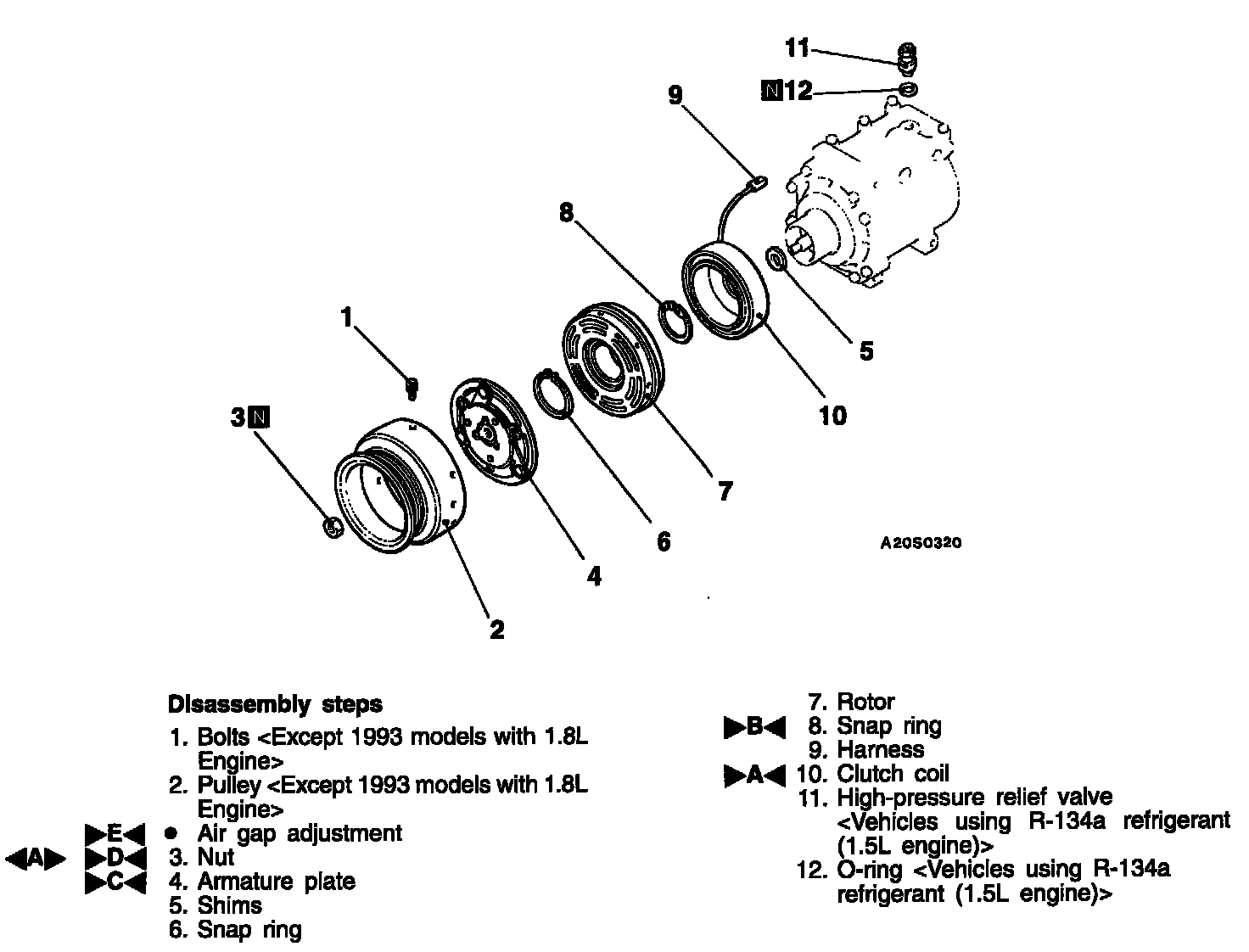

DISASSEMBLY AND REASSEMBLY

DISASSEMBLY SERVICE POINT

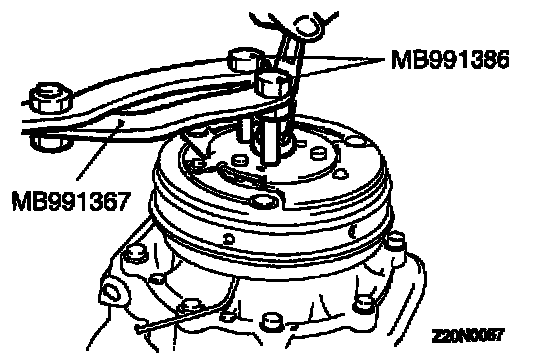

NUT REMOVAL
Using the special tool, remove the nut.

INSPECTION
- Check the surface of the armature for scoring or bluing.
- Check the surface of the rotor for scoring or bluing.
- Check the sealing surfaces for cracks, scratches and deformation.
- Check the front housing for cracks or scoring on the sealing surfaces.
- Check the compressor shaft for scoring.
