Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
1991
>>
Precis L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
General System Schematic
>>
California
California

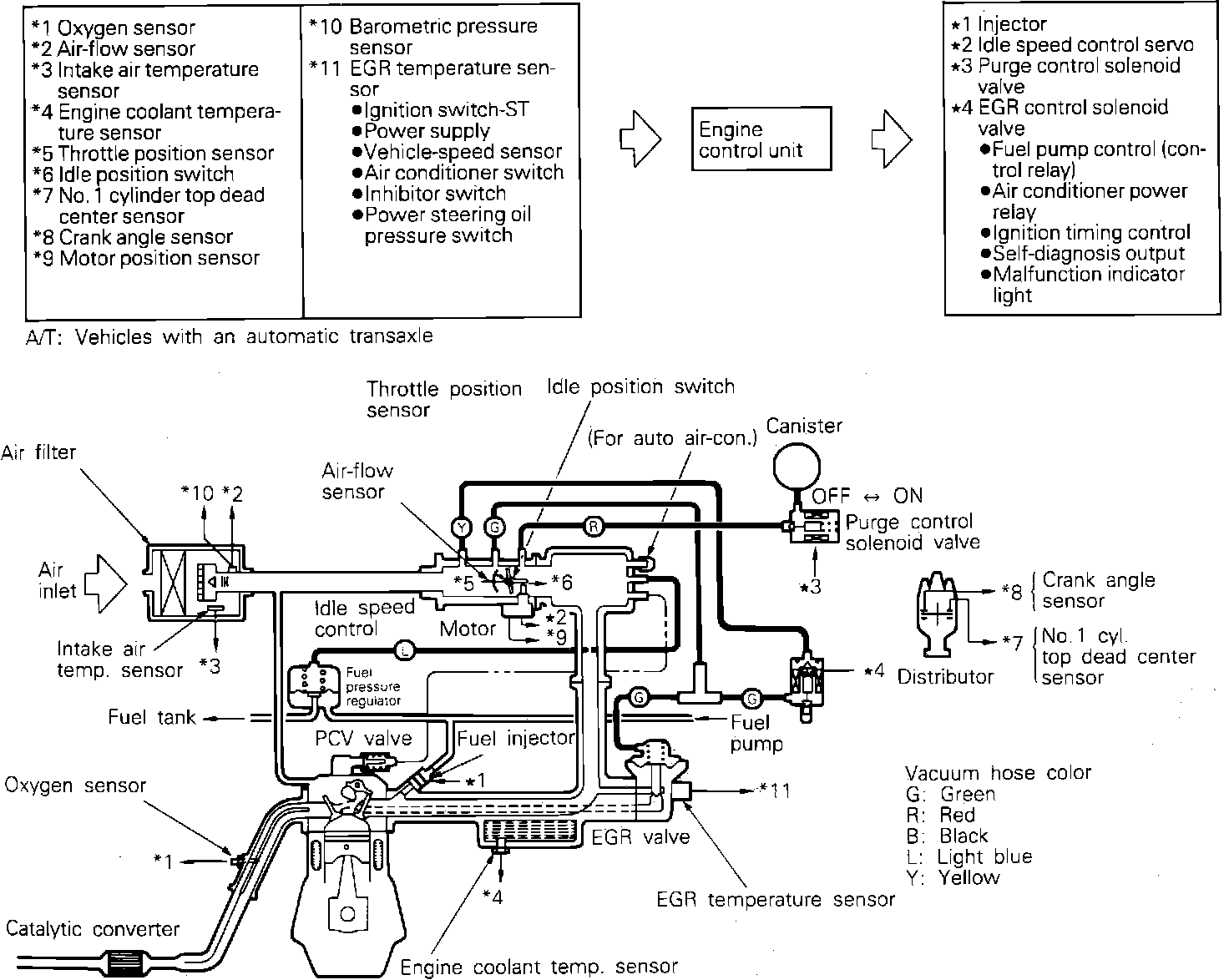

Fuel Control System (California):
