Rear Toe-In

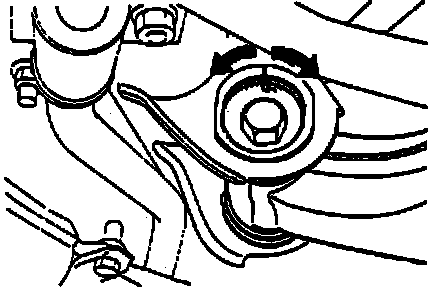

Fig. 2 Rear Toe-In Adjustment:

1. Turn mounting bolts, located inside lower arms, equally to left and right sides. Fig. 2.
2. Toe adjustment changes approximately .08 inch for every scale gradation.
