MPI Circuits

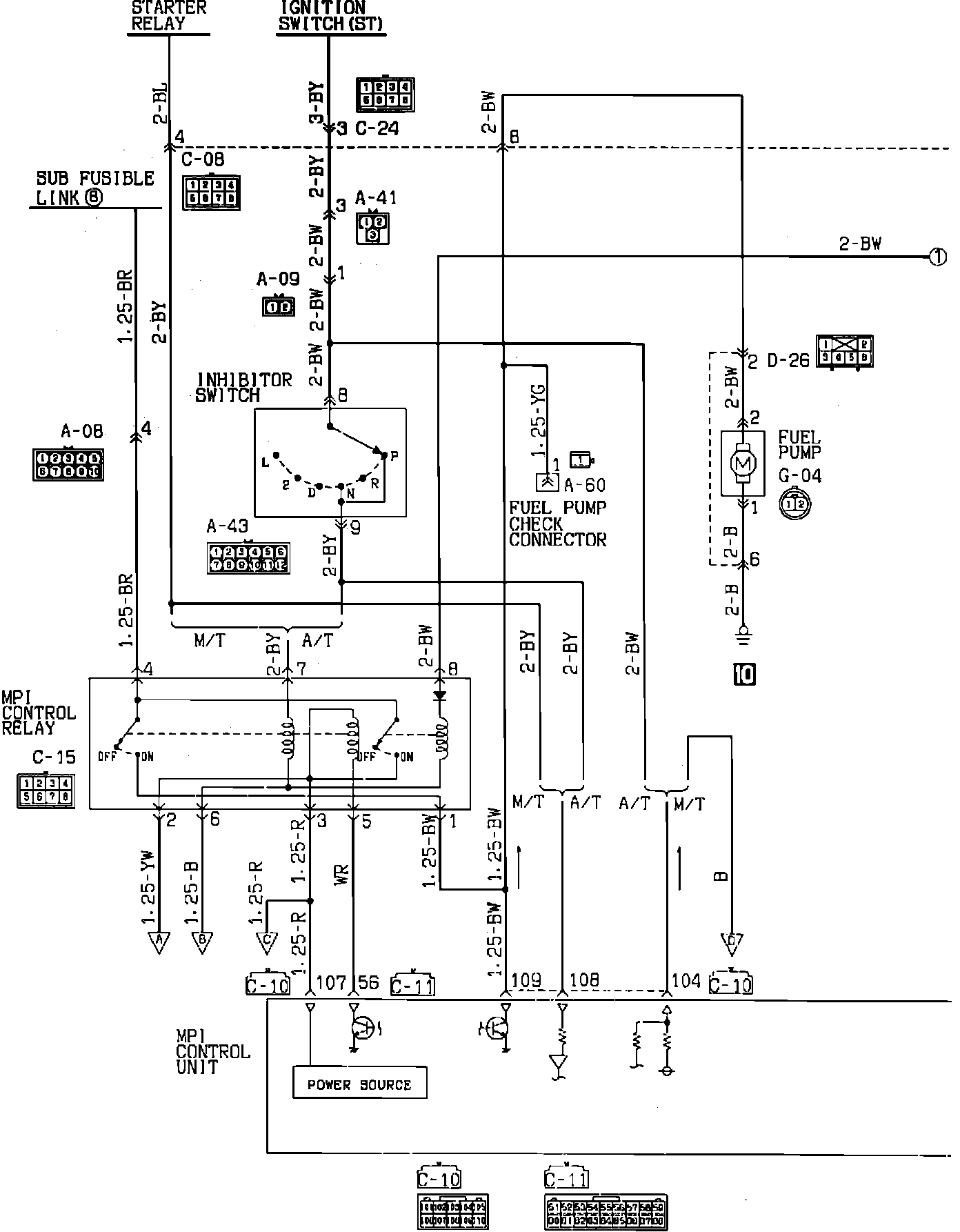

MPI Circuit Diagram 1 Of 4:




1 OF 4

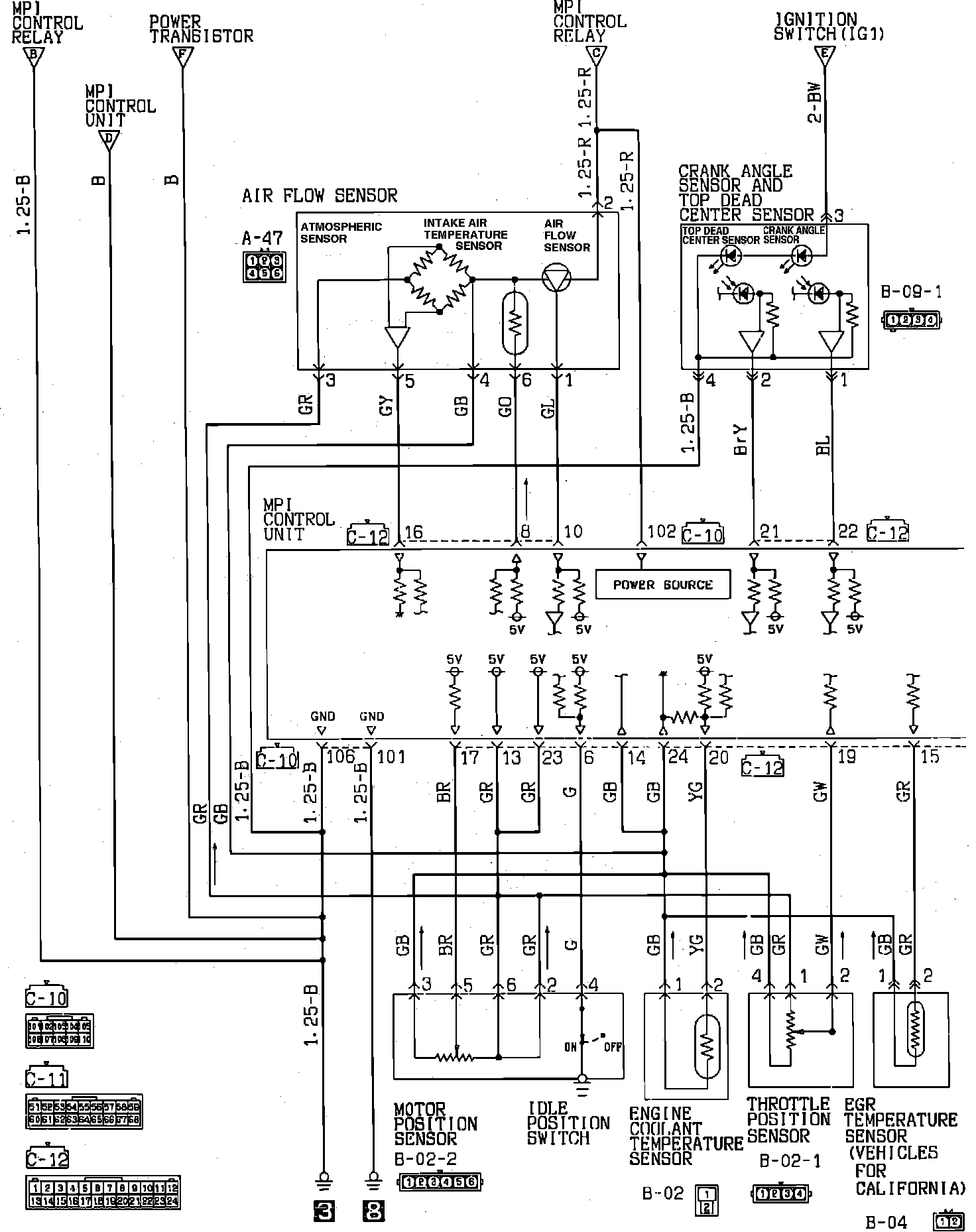

MPI Circuit Diagram 2 Of 4:




2 OF 4

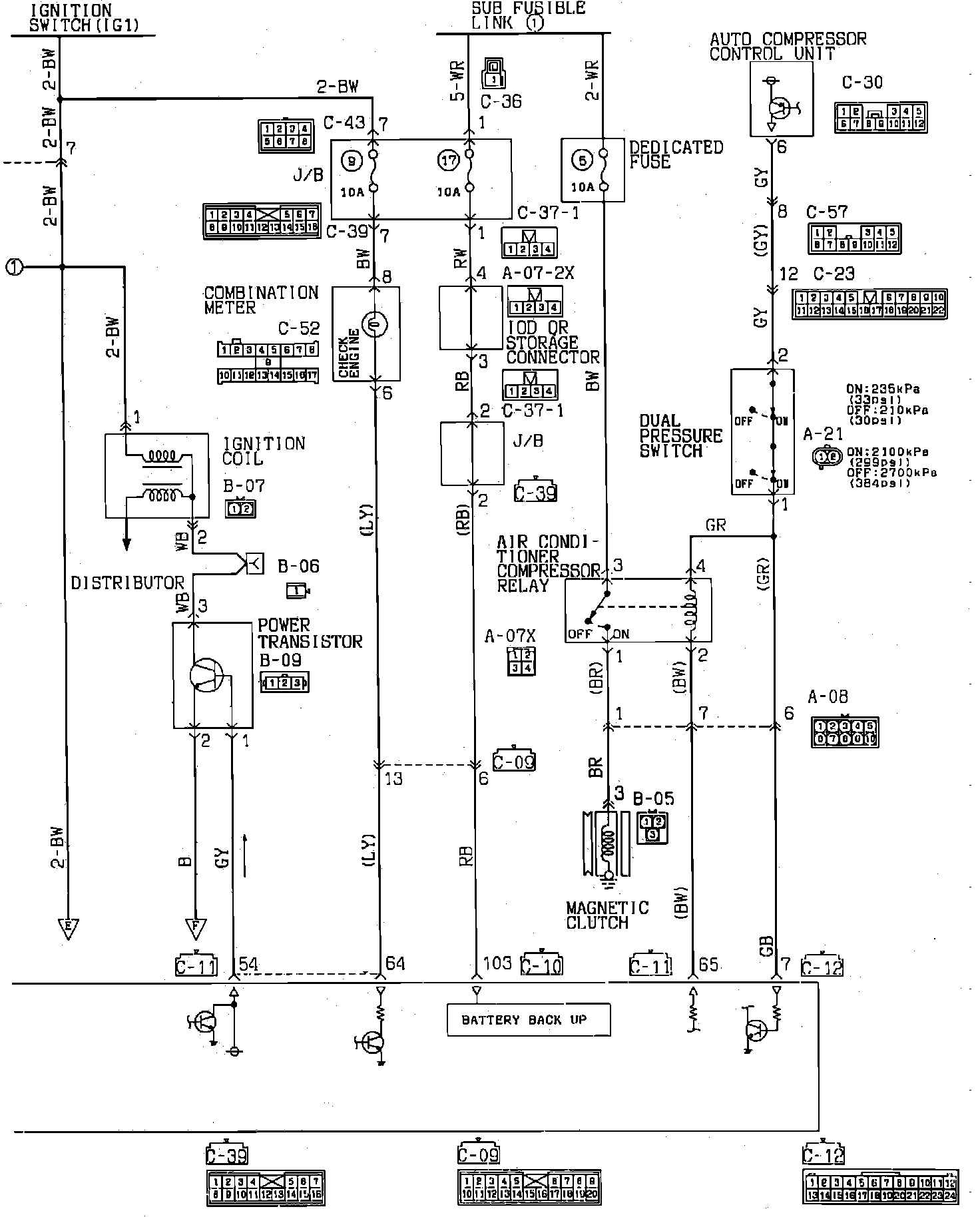

MPI Circuit Diagram 3 Of 4:




3 OF 4

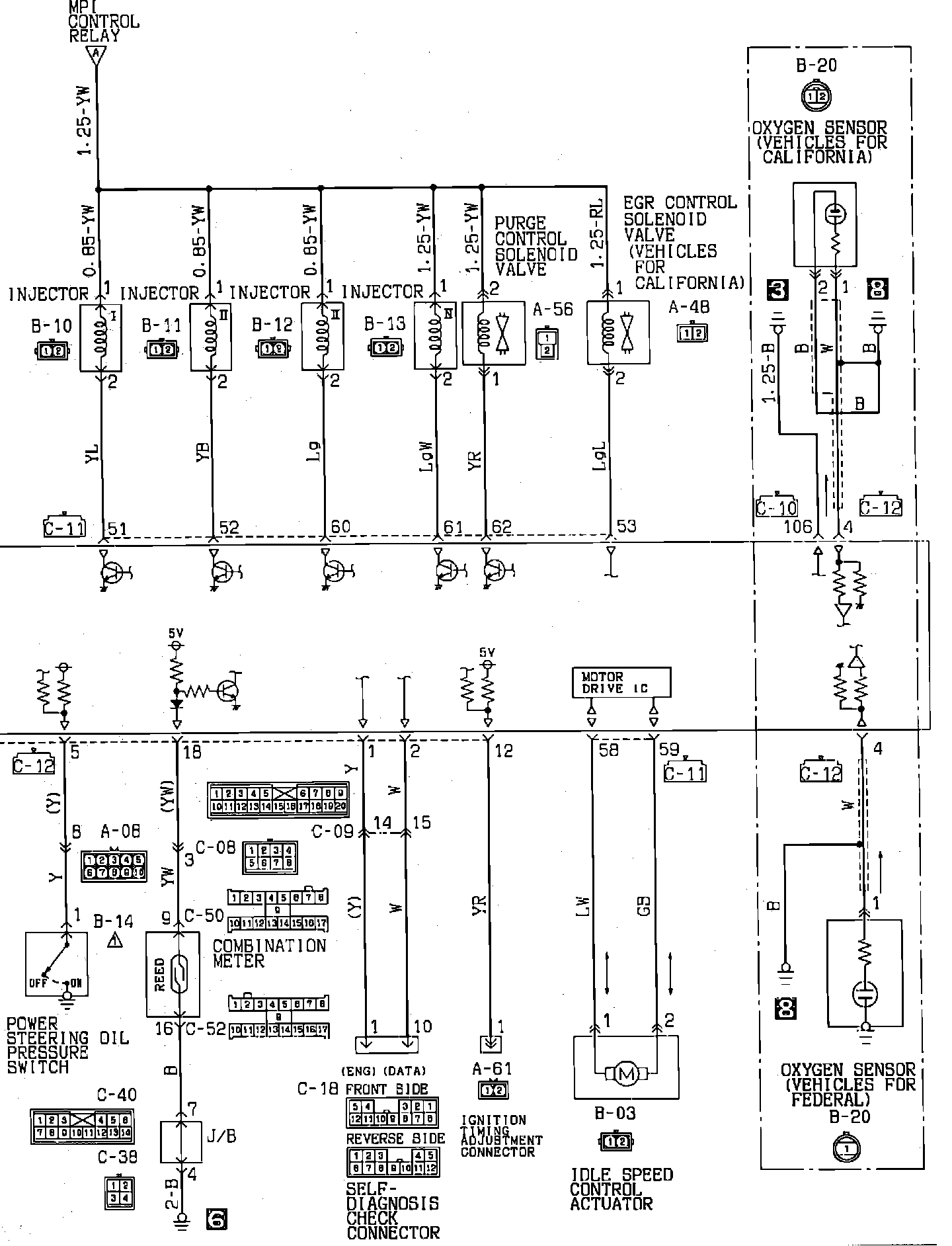

MPI Circuit Diagram 4 Of 4:




4 OF 4
