Idle Speed Control (ISC) Servo
Idle Speed Control (ISC) Servo

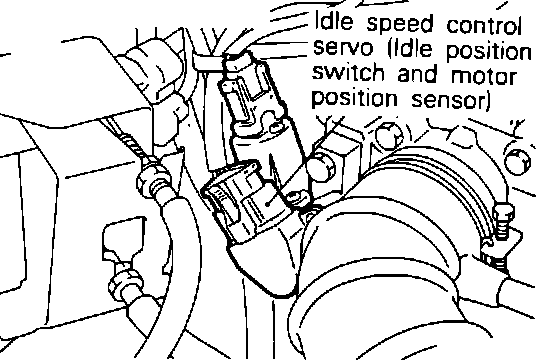

ISC Servo And Motor Position Sensor Location:
Mounted on the throttle chamber, on the firewall side.
