Component Locations

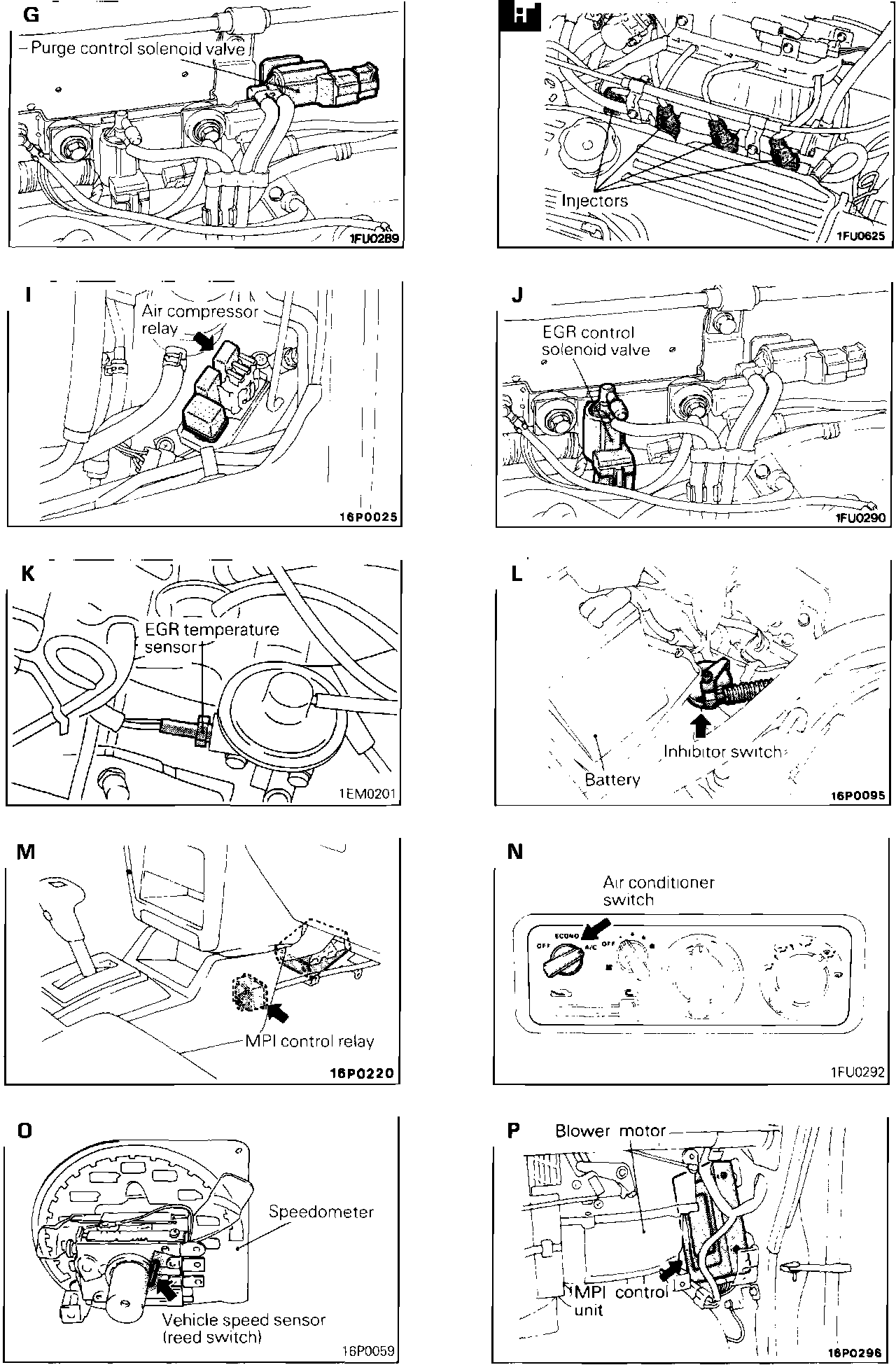

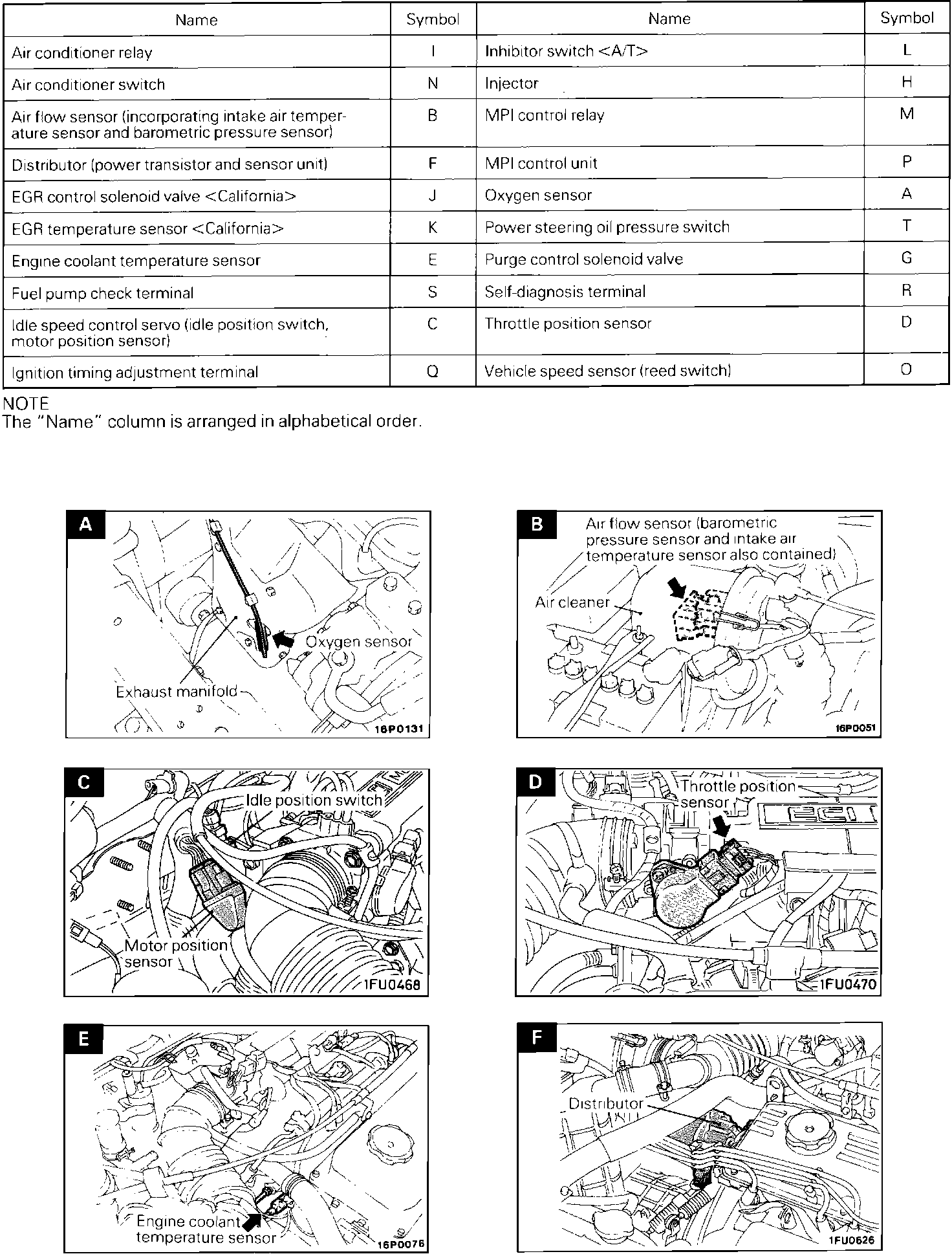

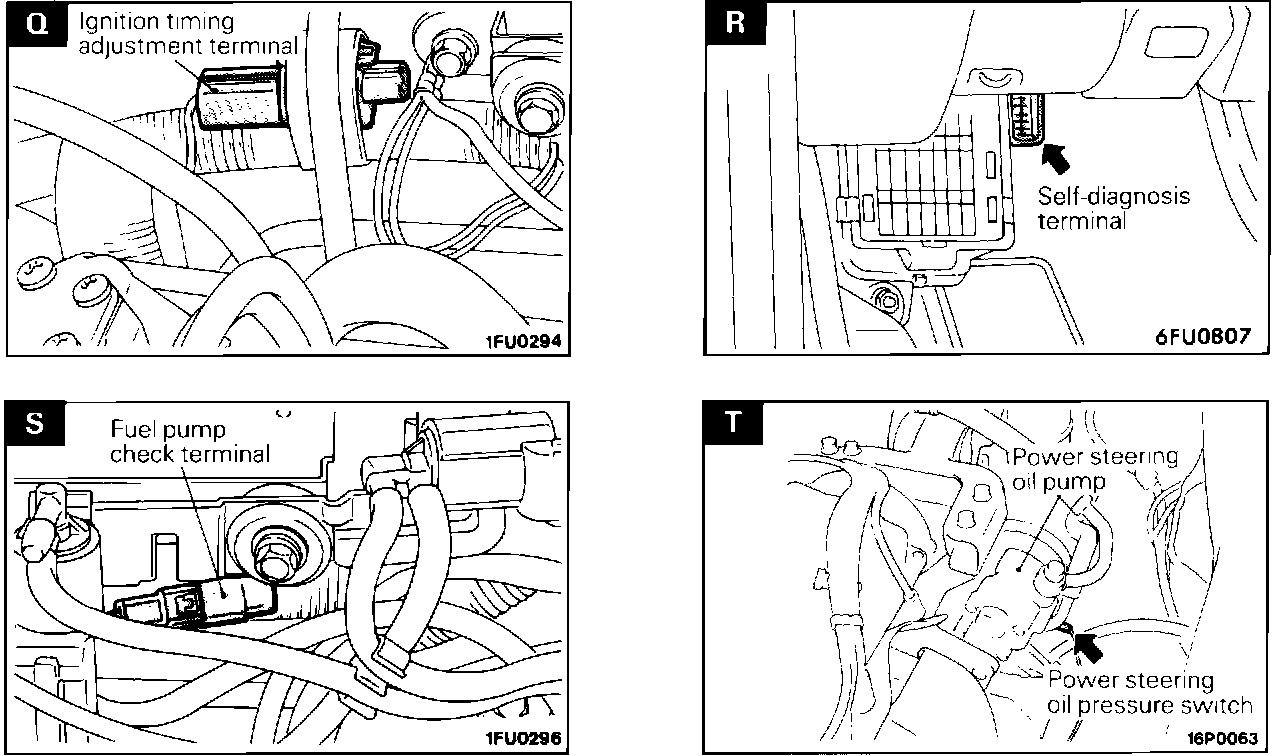

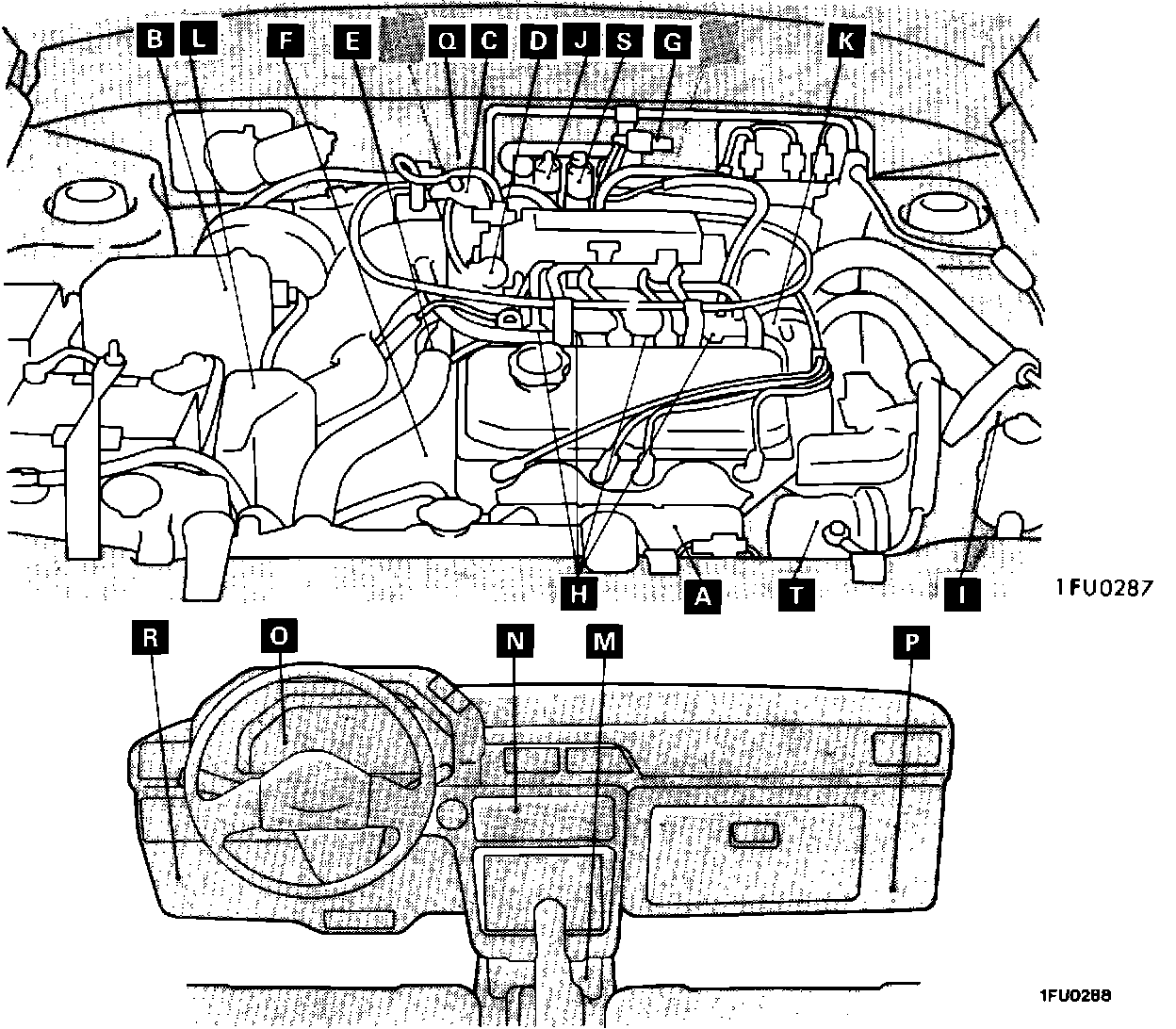

Engine Management: Component Location:



Engine Management: Component Location:



Engine Management: Component Location:



Engine Management: Component Location:
