Fuel Pump Check Terminal

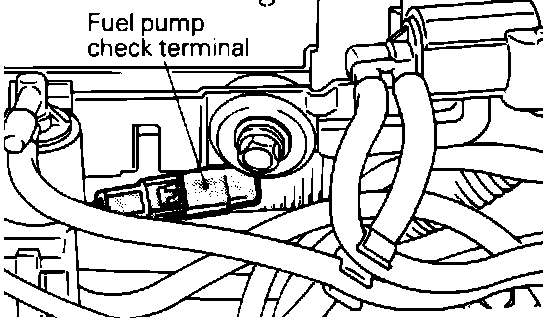

Fuel Pump Check Connector Location:





On the wiring harness at the firewall, near the EGR and purge solenoids.
