3-Speed

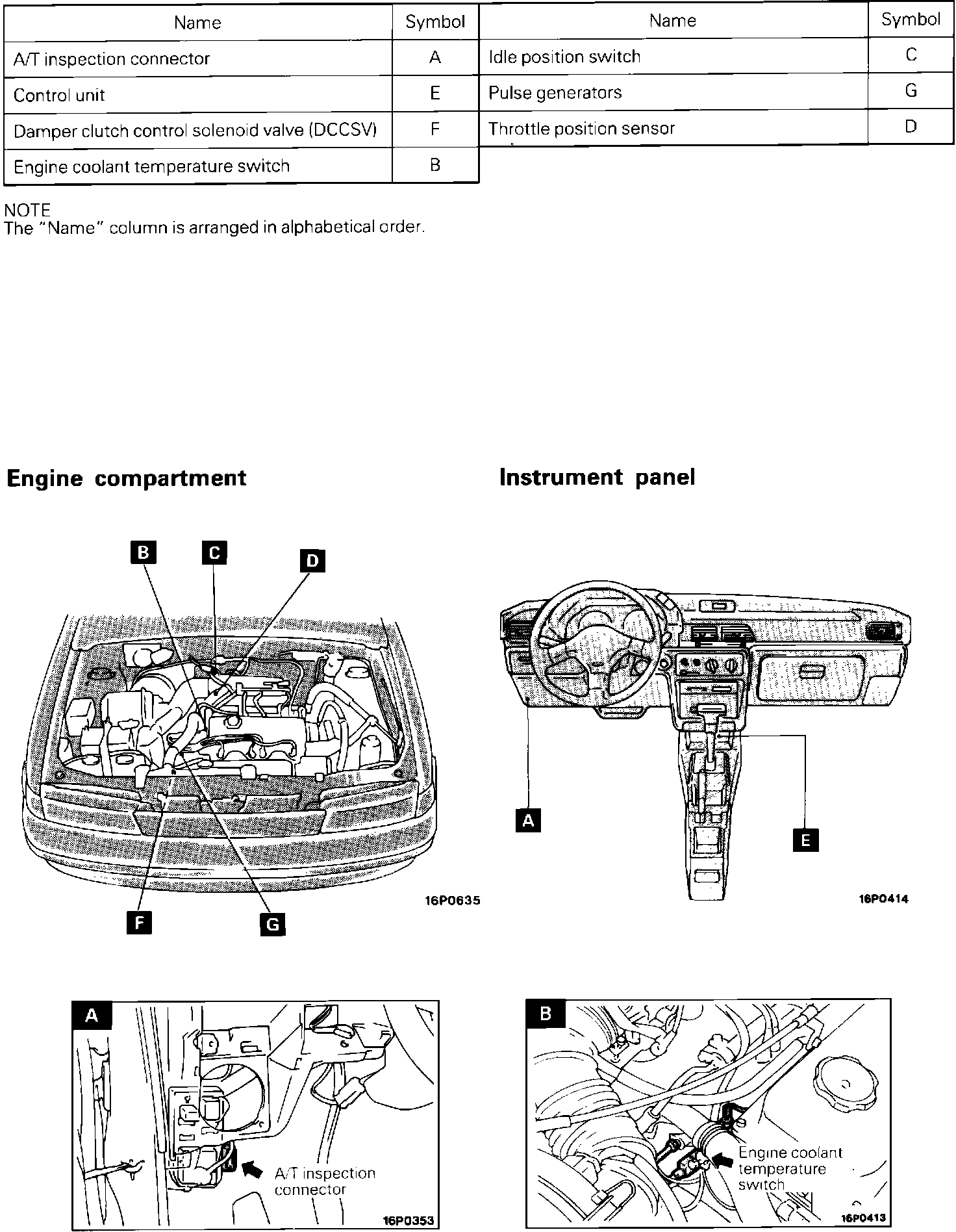

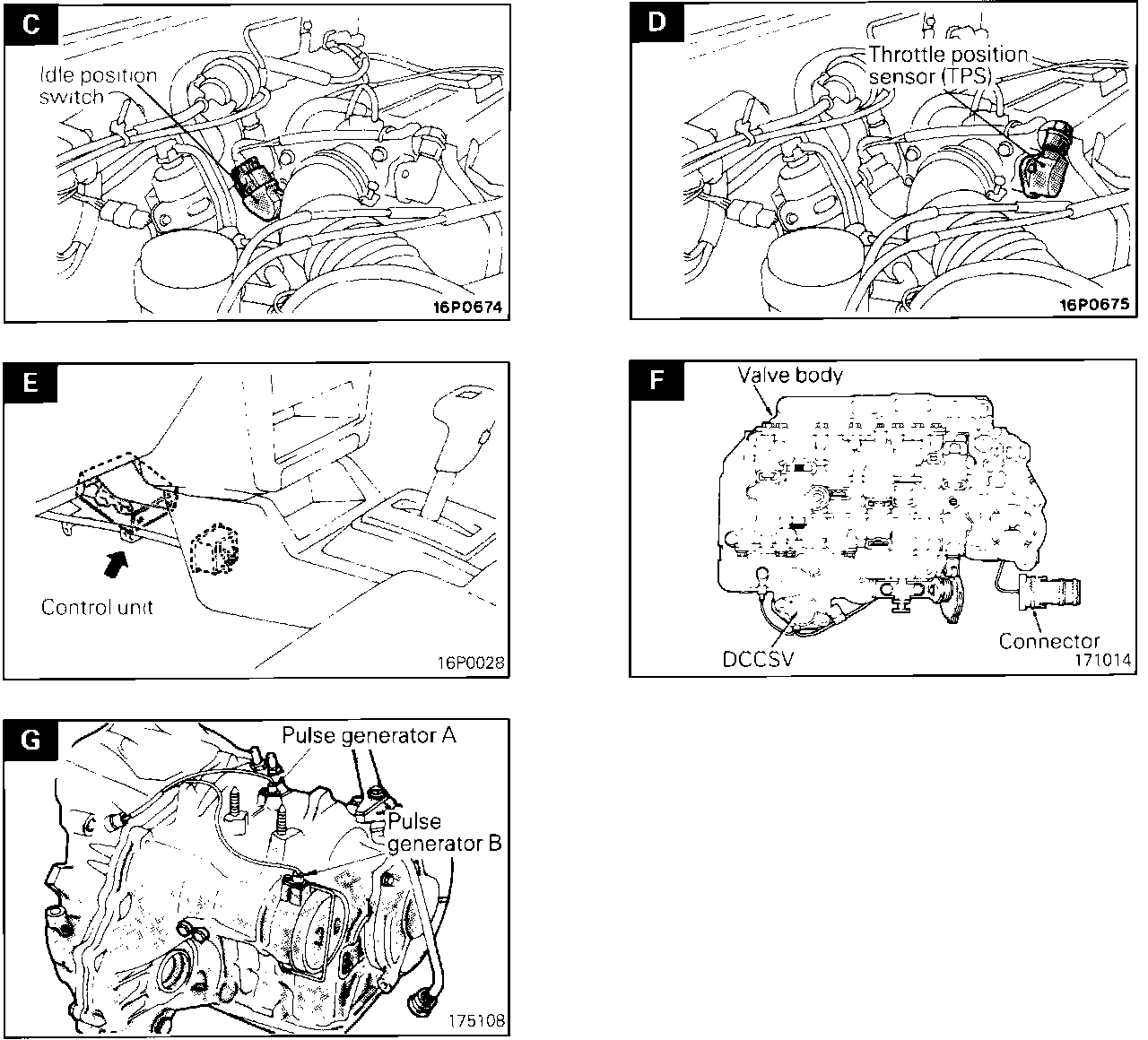

Automatic Transaxle (3-Speed): Component Locations:



Automatic Transaxle (3-Speed): Component Locations:
