Home
>>
Mitsubishi
>>
1992
>>
Mirage L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Locations
>>
4-Speed
4-Speed

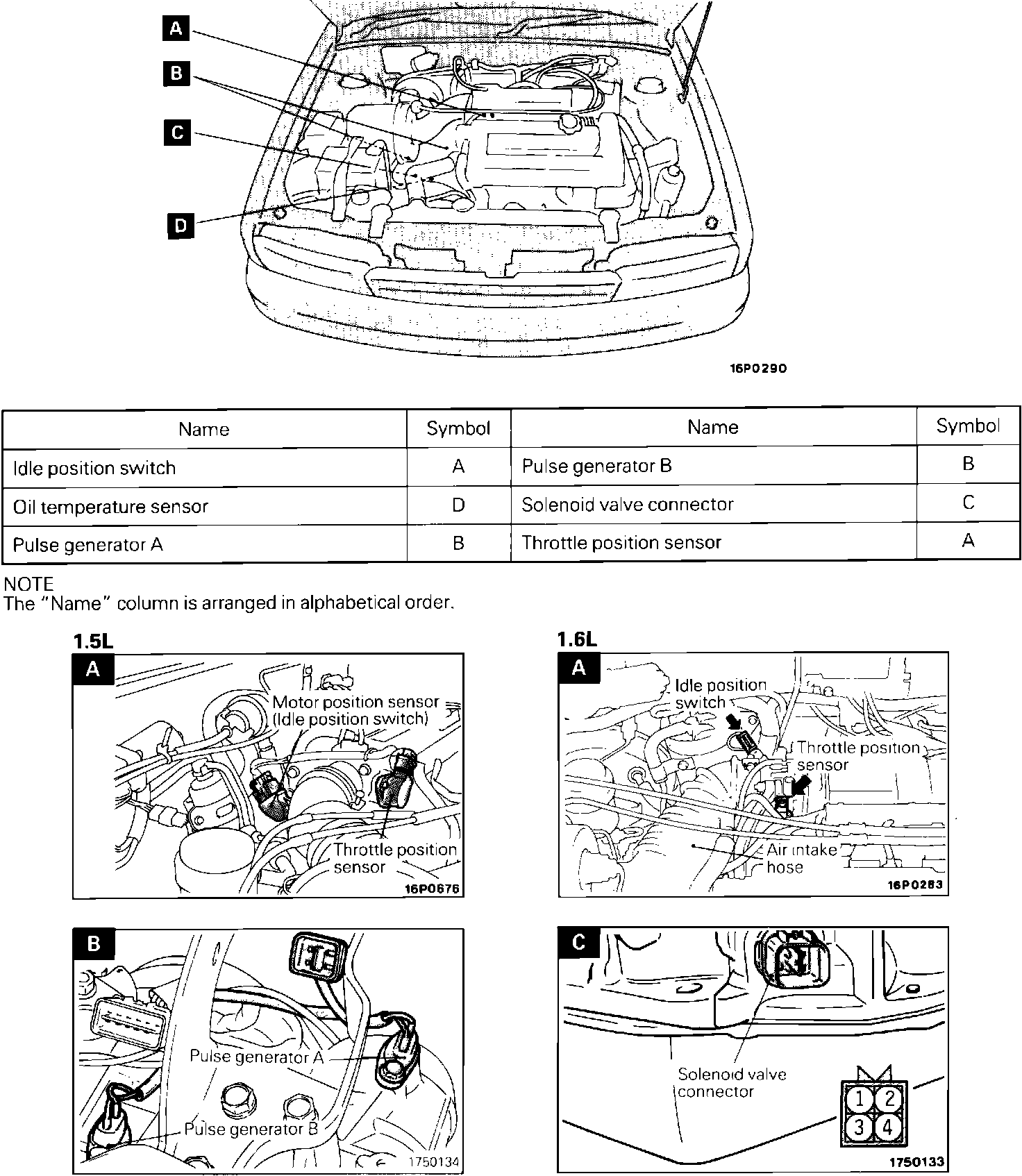

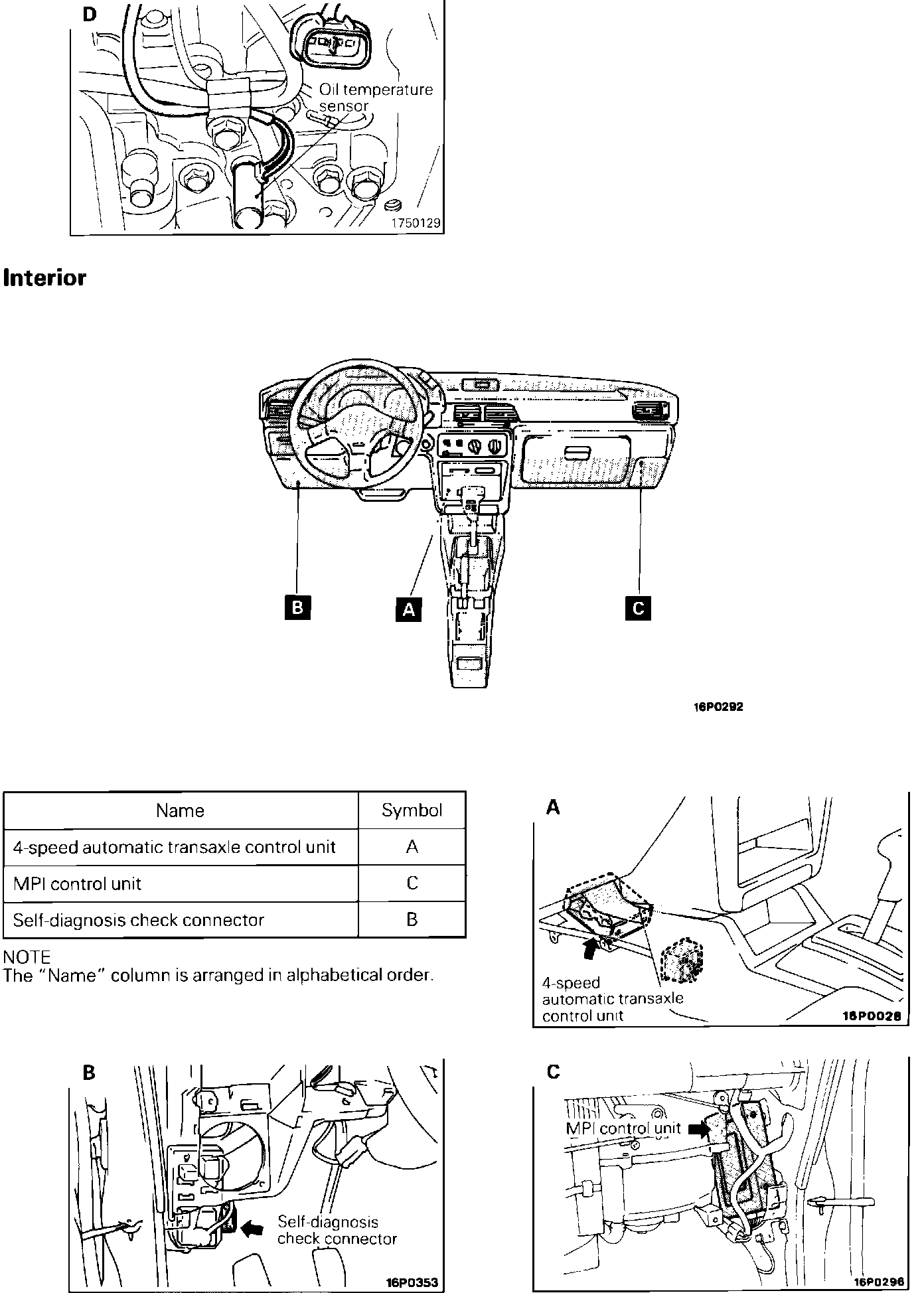

Automatic Transaxle (4-Speed): Component Locations:
Automatic Transaxle (4-Speed): Component Locations:
