Component Replacement

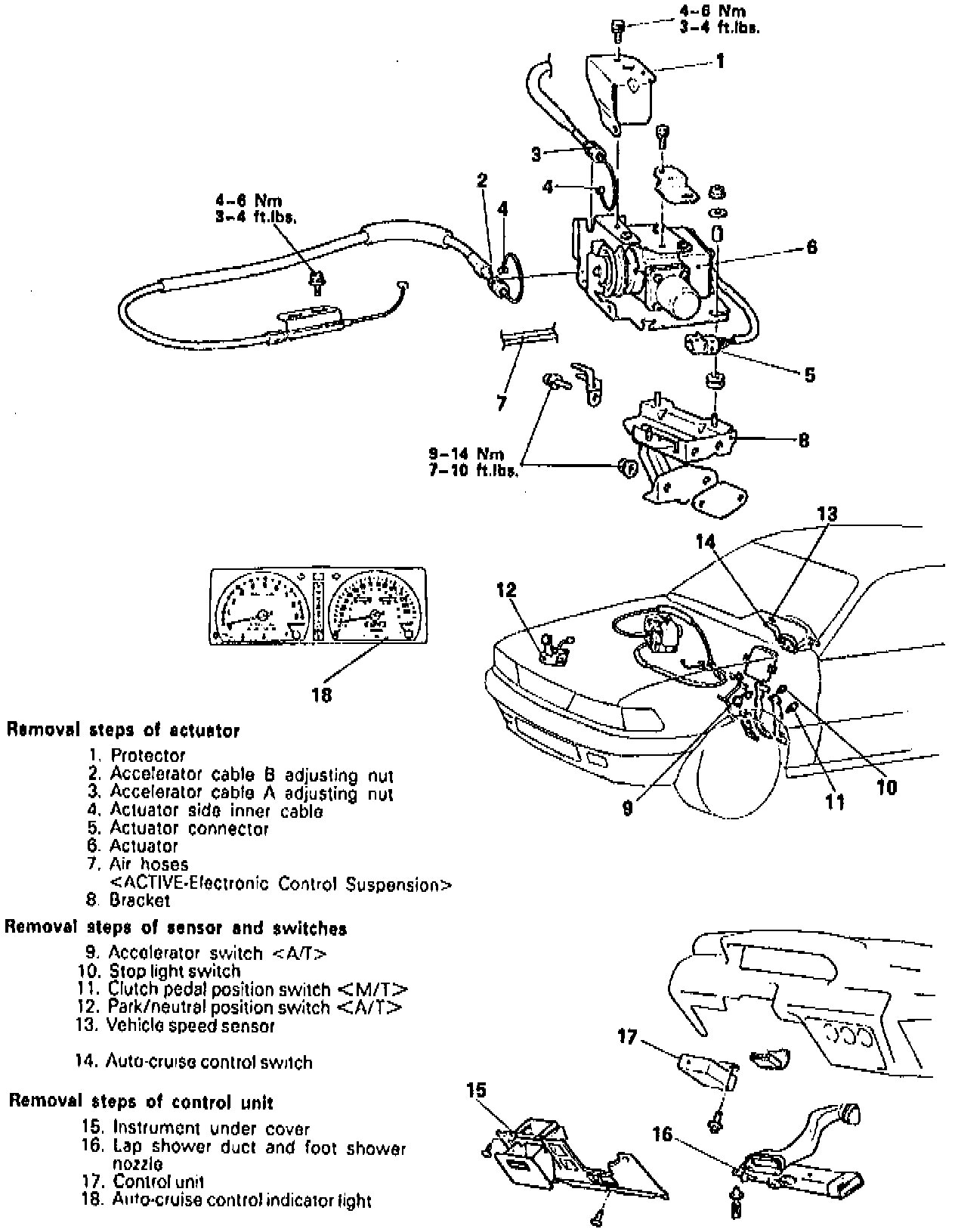

Fig. 47 Speed Control Component Replacement (Electrically Actuated):

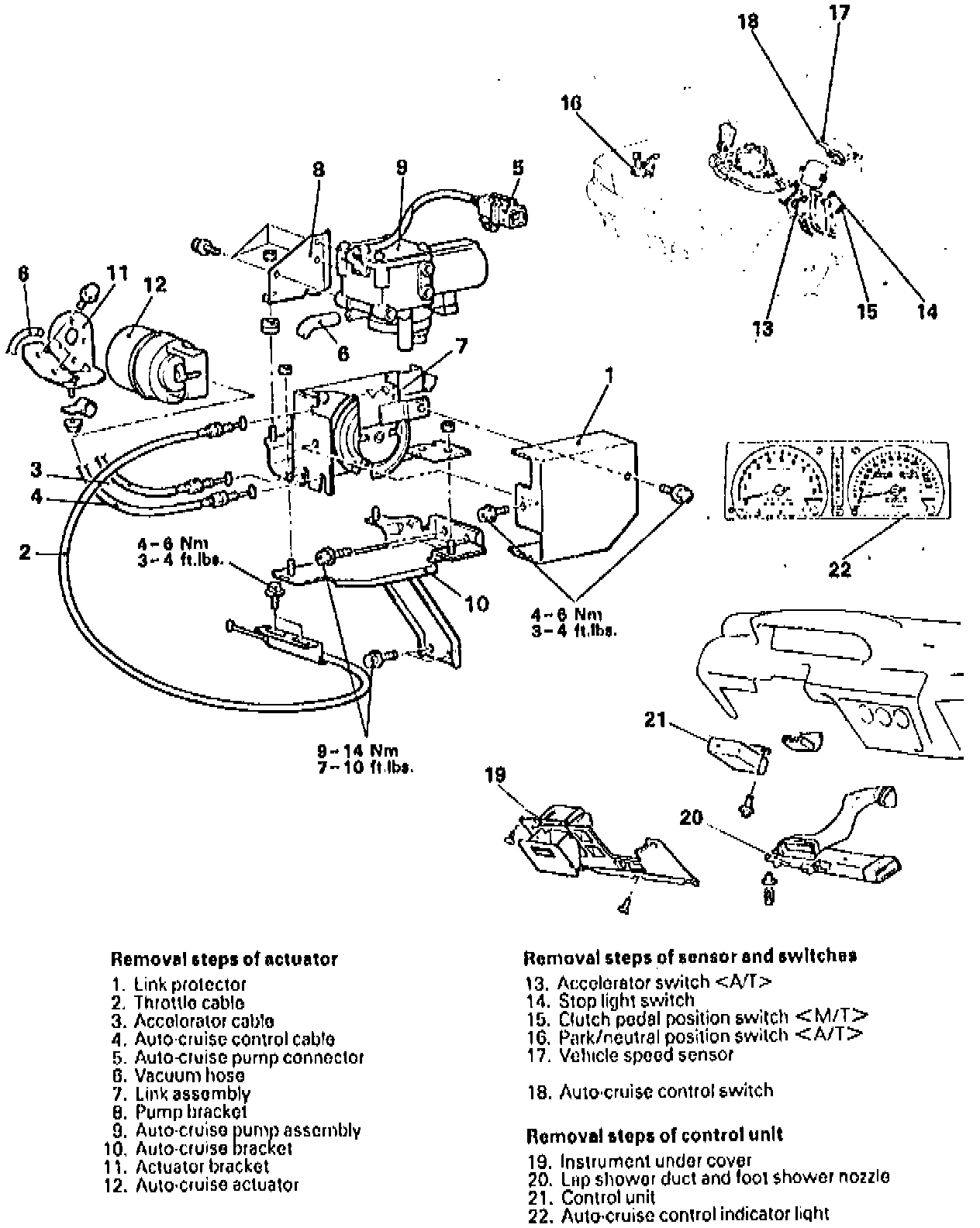

Fig. 48 Speed Control Component Replacement (Vacuum Actuated):

Refer to numbered sequences shown in Fig. 47 and 48 for component replacement.
