Component Replacement

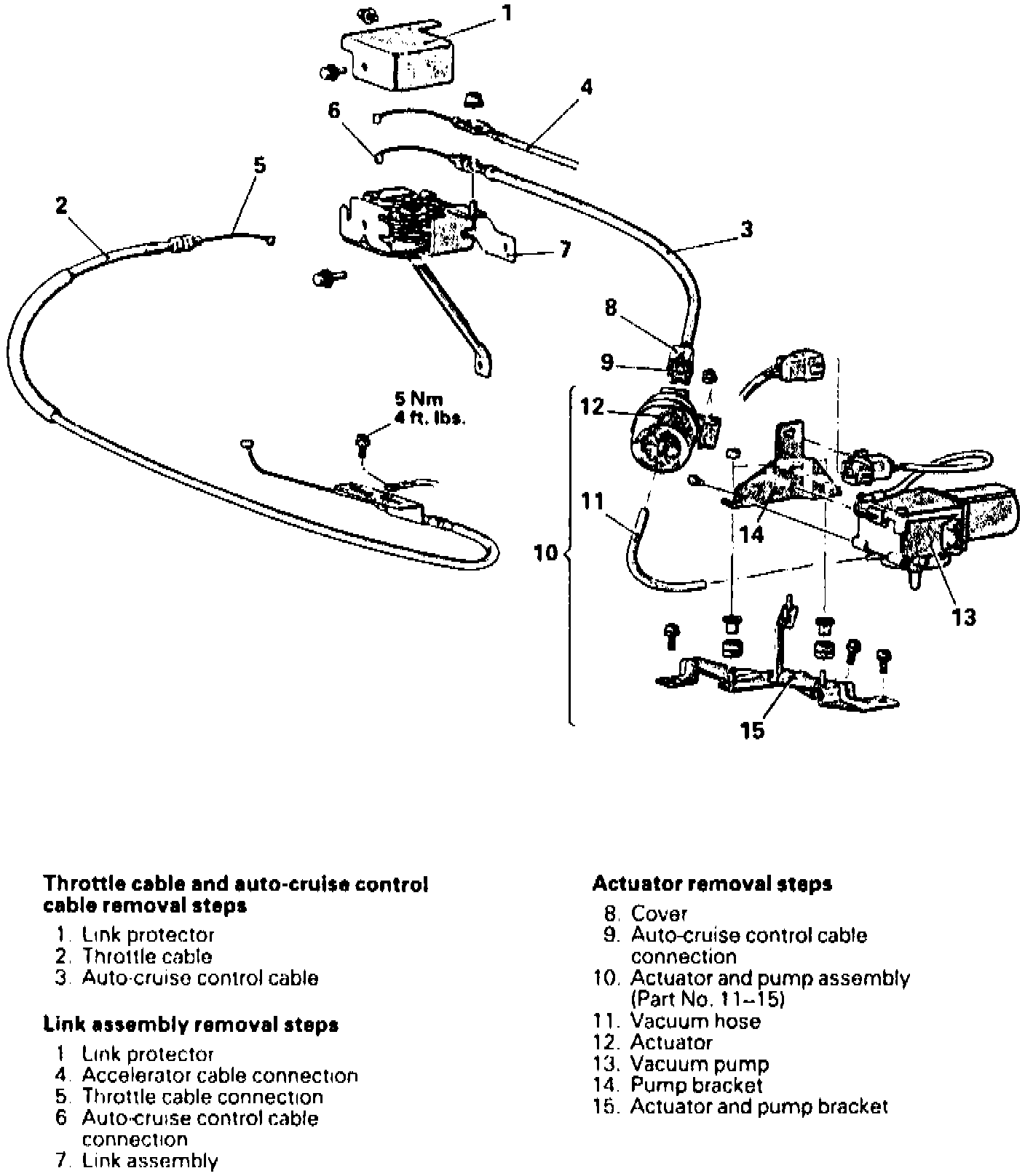

Fig. 46 Speed Control Component Replacement (Part 1 Of 3):

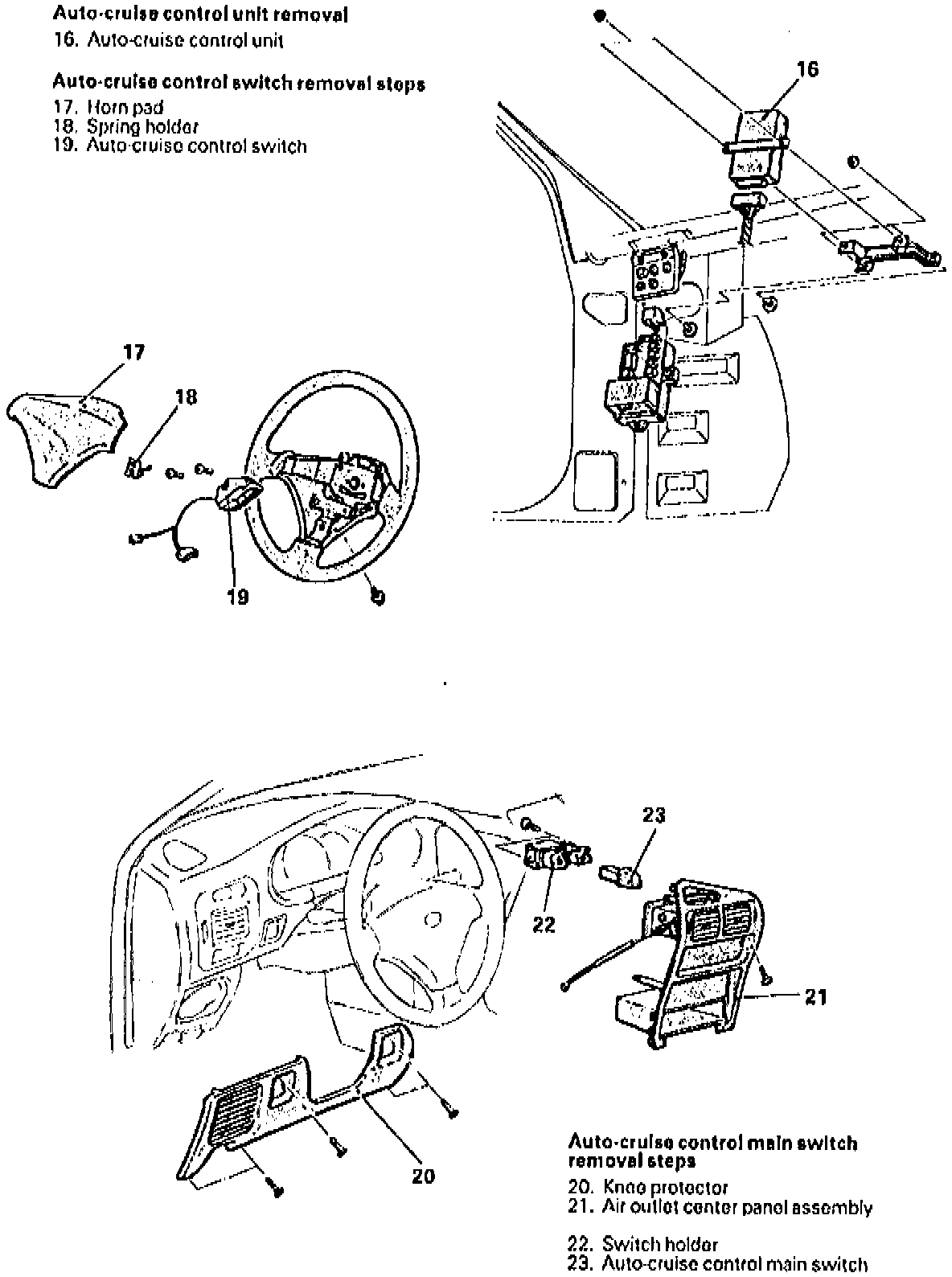

Fig. 46 Speed Control Component Replacement (Part 2 Of 3):

Fig. 46 Speed Control Component Replacement (Part 3 Of 3):

Refer to numbered sequences shown in Fig. 46 for component replacement.
