Engine Controls - Data Link Connector Correction
NO.: TSB-93-13-007DATE: November, 1993
MODEL: 1994 Mirage
SUBJECT:
DATA LINK CONNECTOR TERMINAL NUMBER SERVICE MANUAL CORRECTION
[TSB Revision: TSB-93-13-007]
PURPOSE
This bulletin corrects the terminal number of the (Y) wire leading into the Data Link Connector. The correct terminal number should be designated as # 5.
Please make the indicated service manual revision, and as reference to this TSB, please write this TSB number in the TSB revision box on the affected service manual page.
SERVICE MANUAL REVISION
1993-1994 Mirage, Volume 2, Pages 86, 102

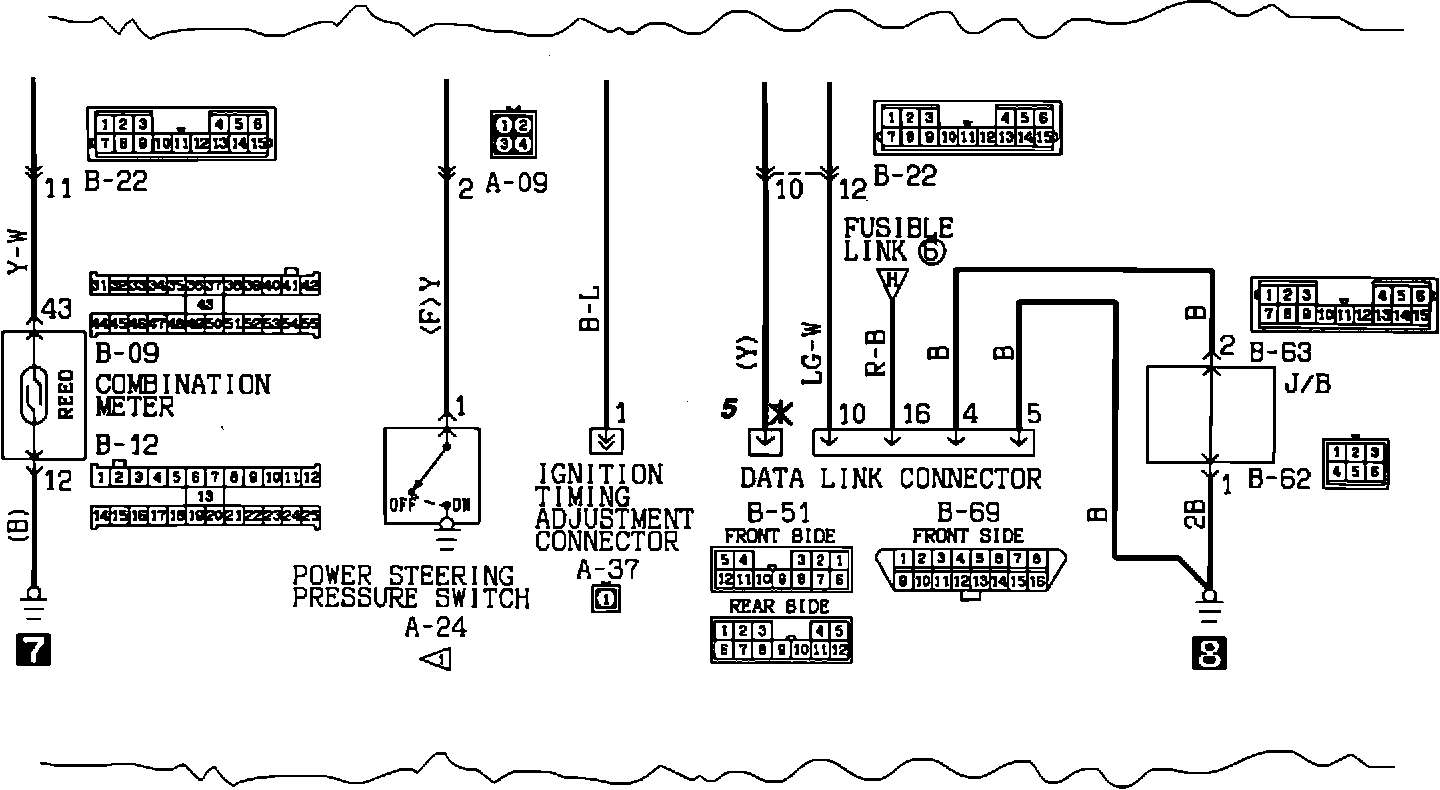

As shown, cross out the existing # 1 and write in # 5.
