Federal Models
Federal Models

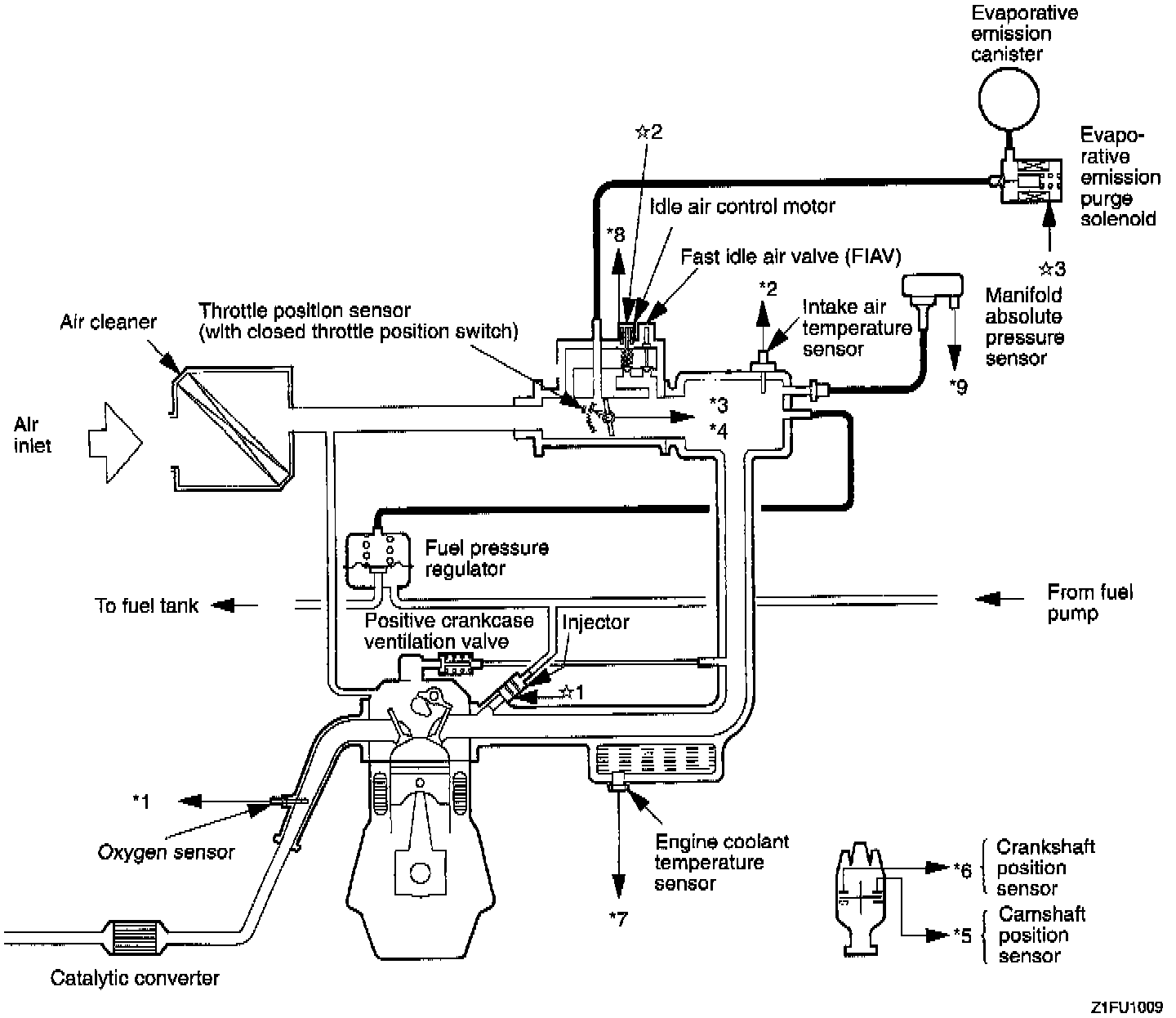

Federal - 93 Models:
Fed: 94 - 95 Models; Ca: 93 - 94 Models:

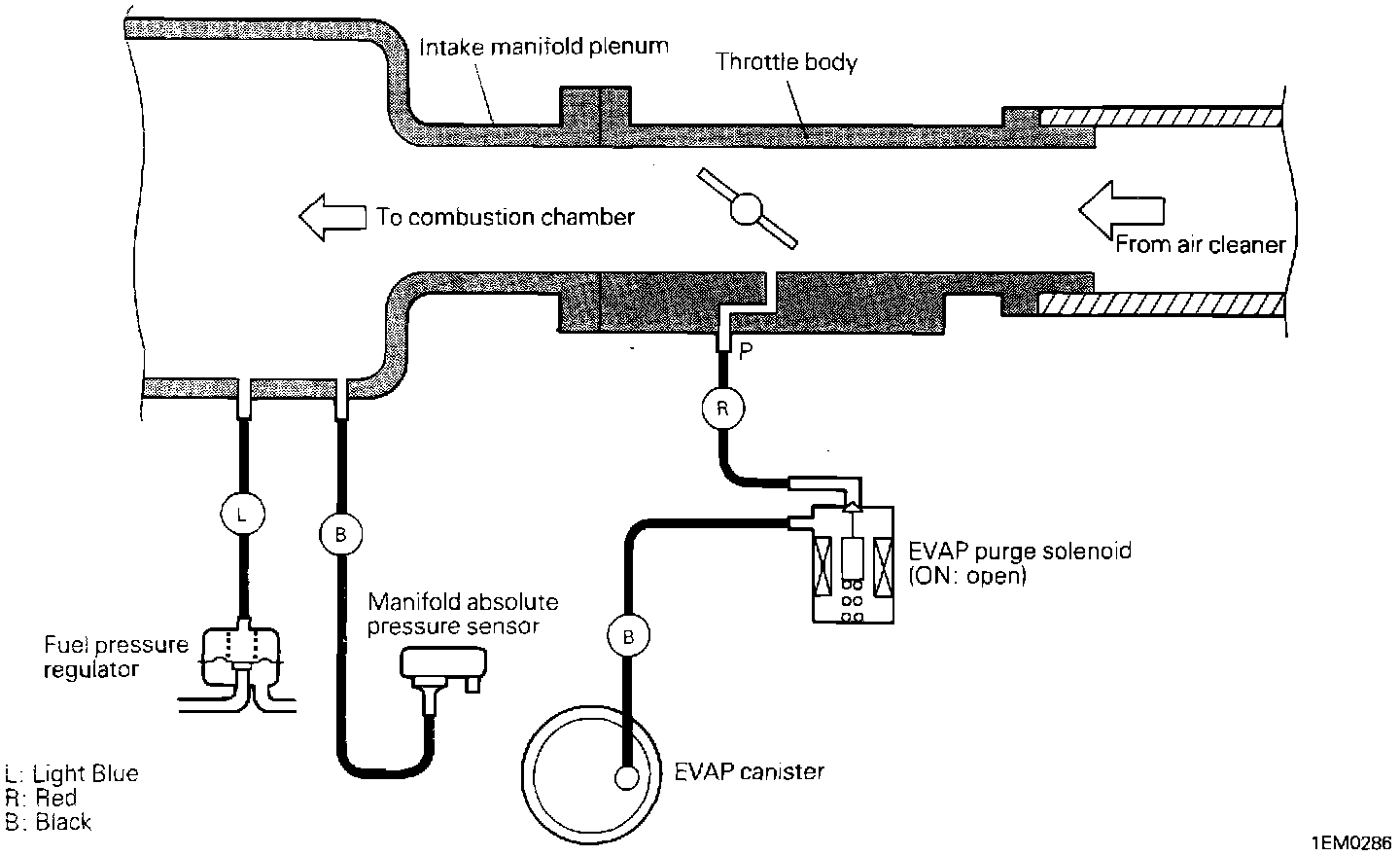

Vacuum Hose Routing:

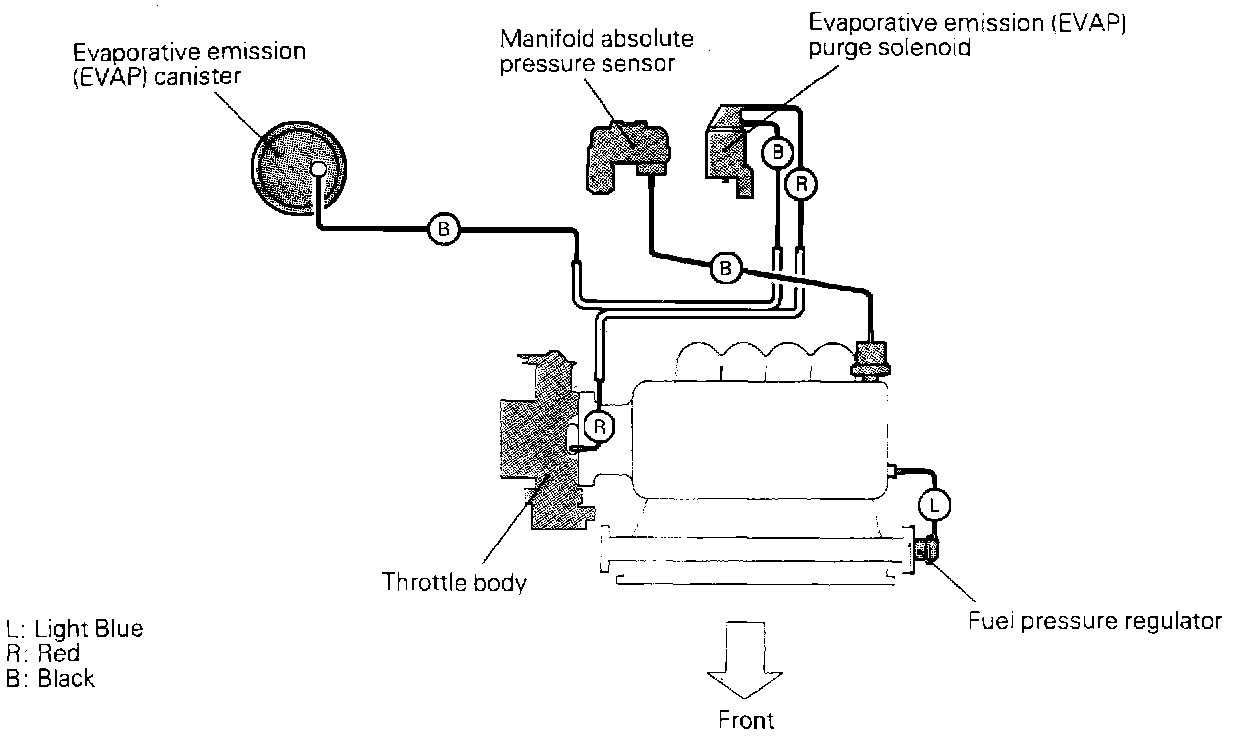

Vacuum Hose Diagram:
