Transmission Control Systems: Locations

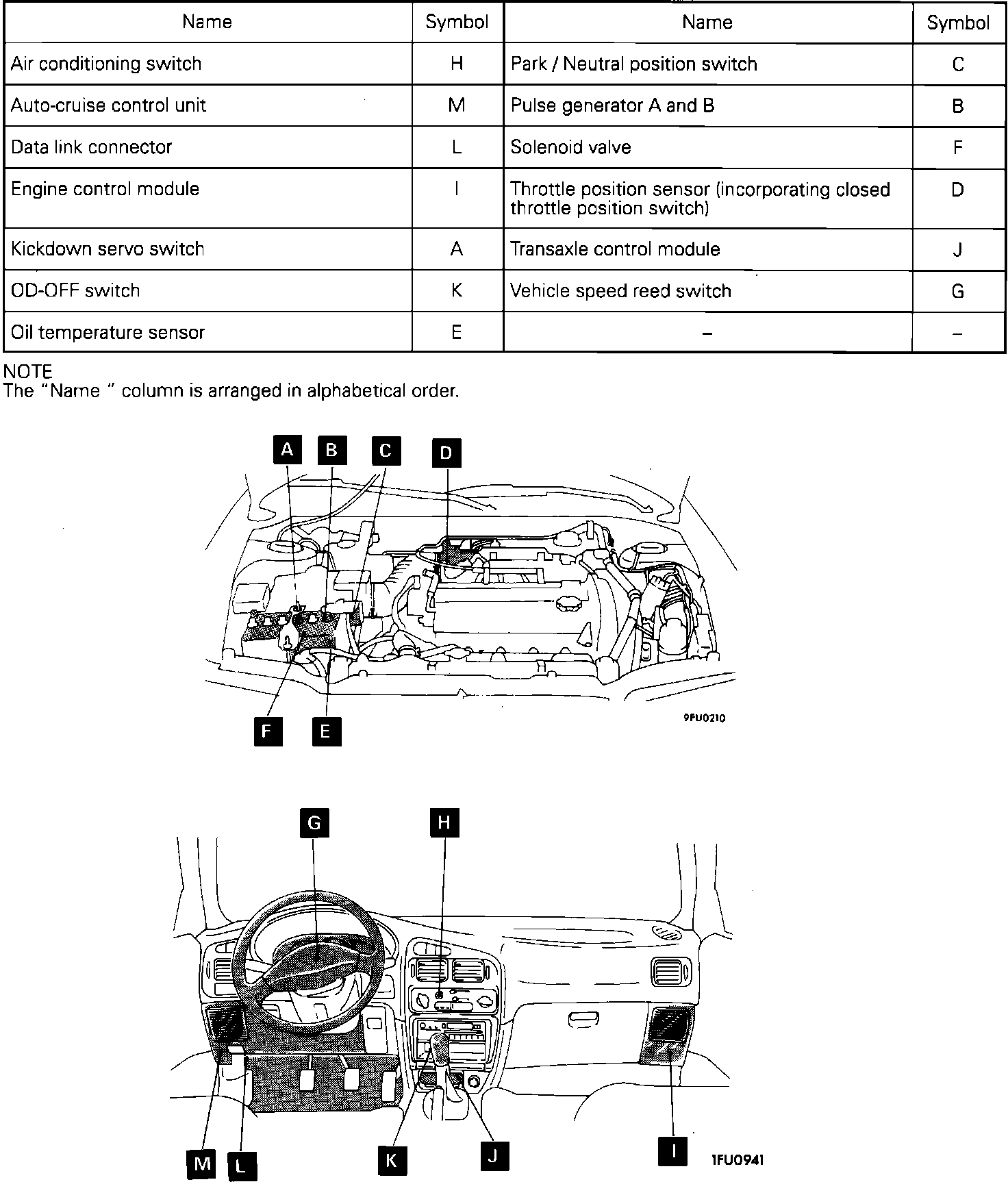

Automatic Transaxle (4-Speed): Component Location:

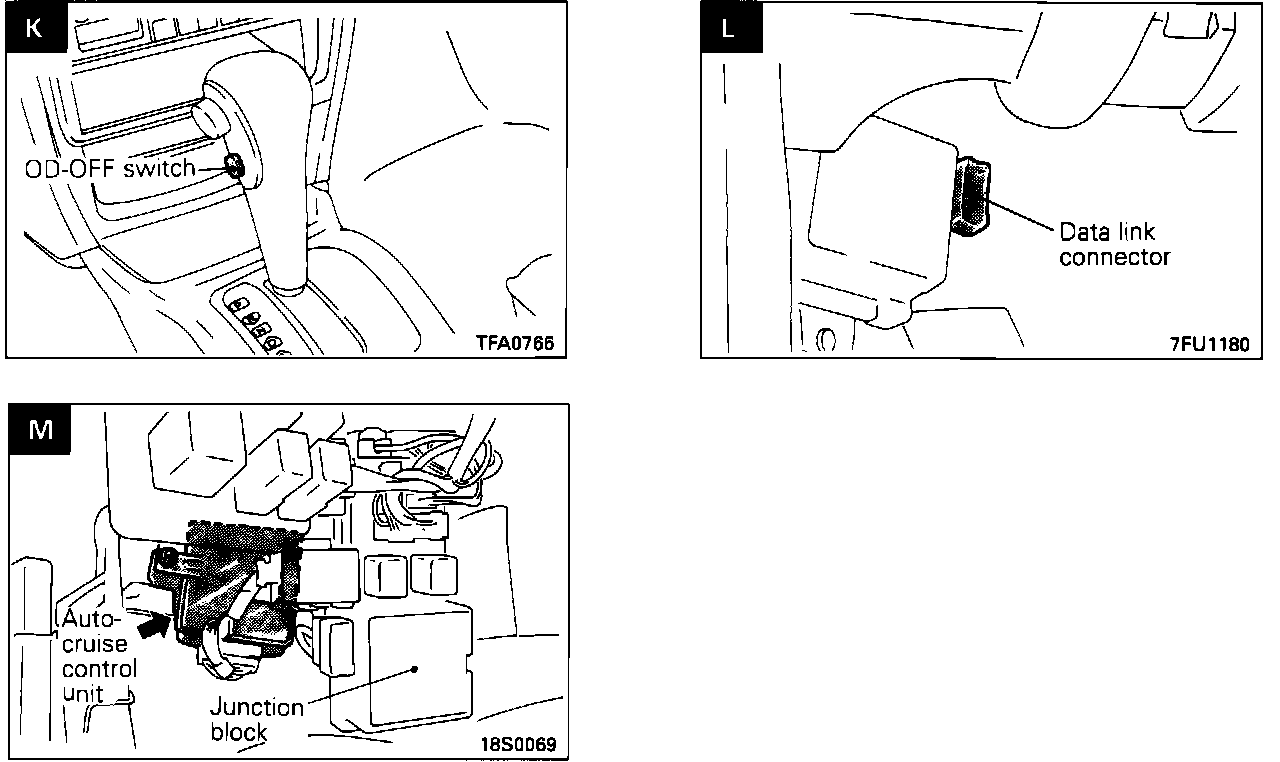

Automatic Transaxle (4-Speed): Component Location:

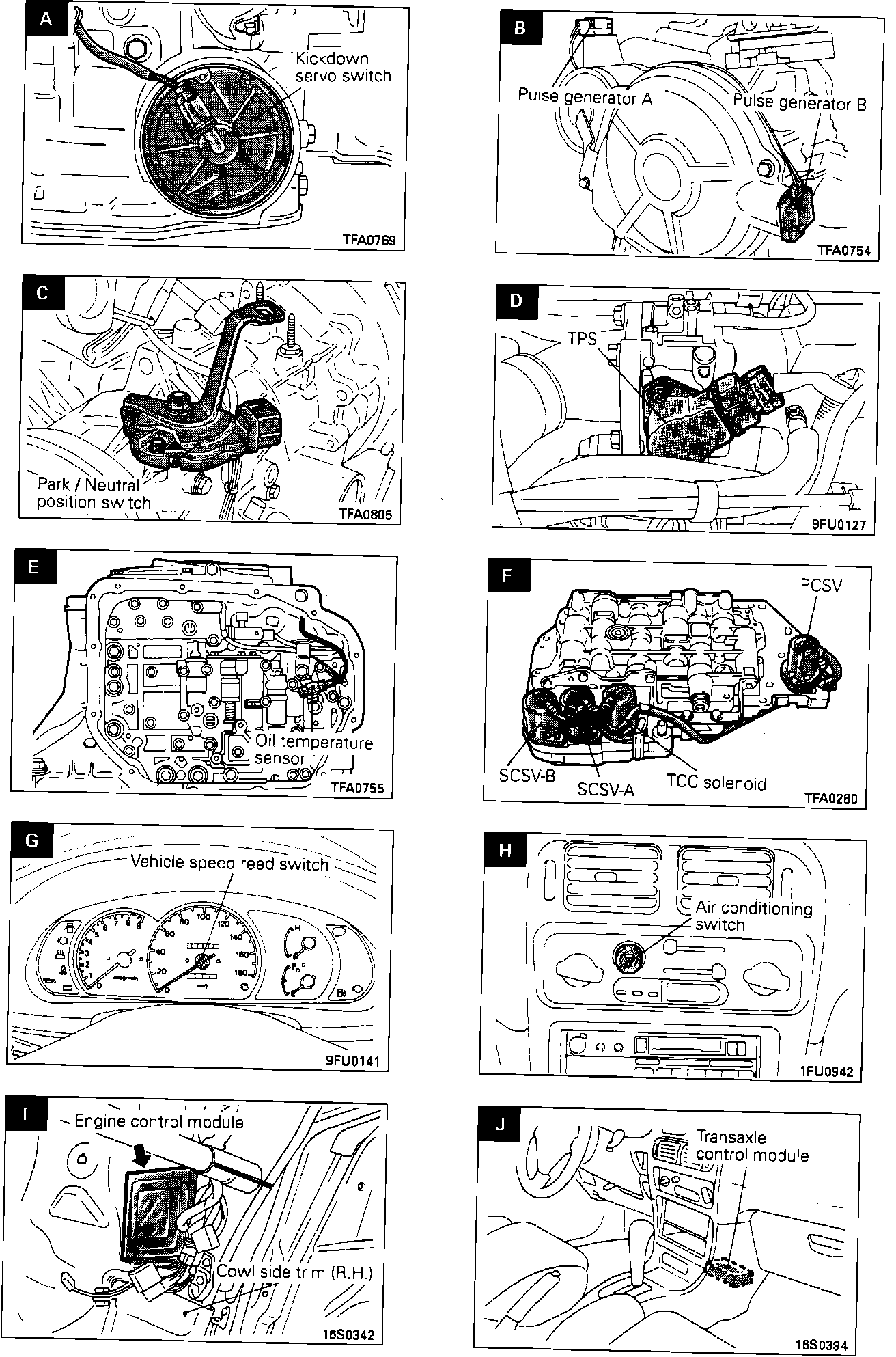

Automatic Transaxle (4-Speed): Component Location:

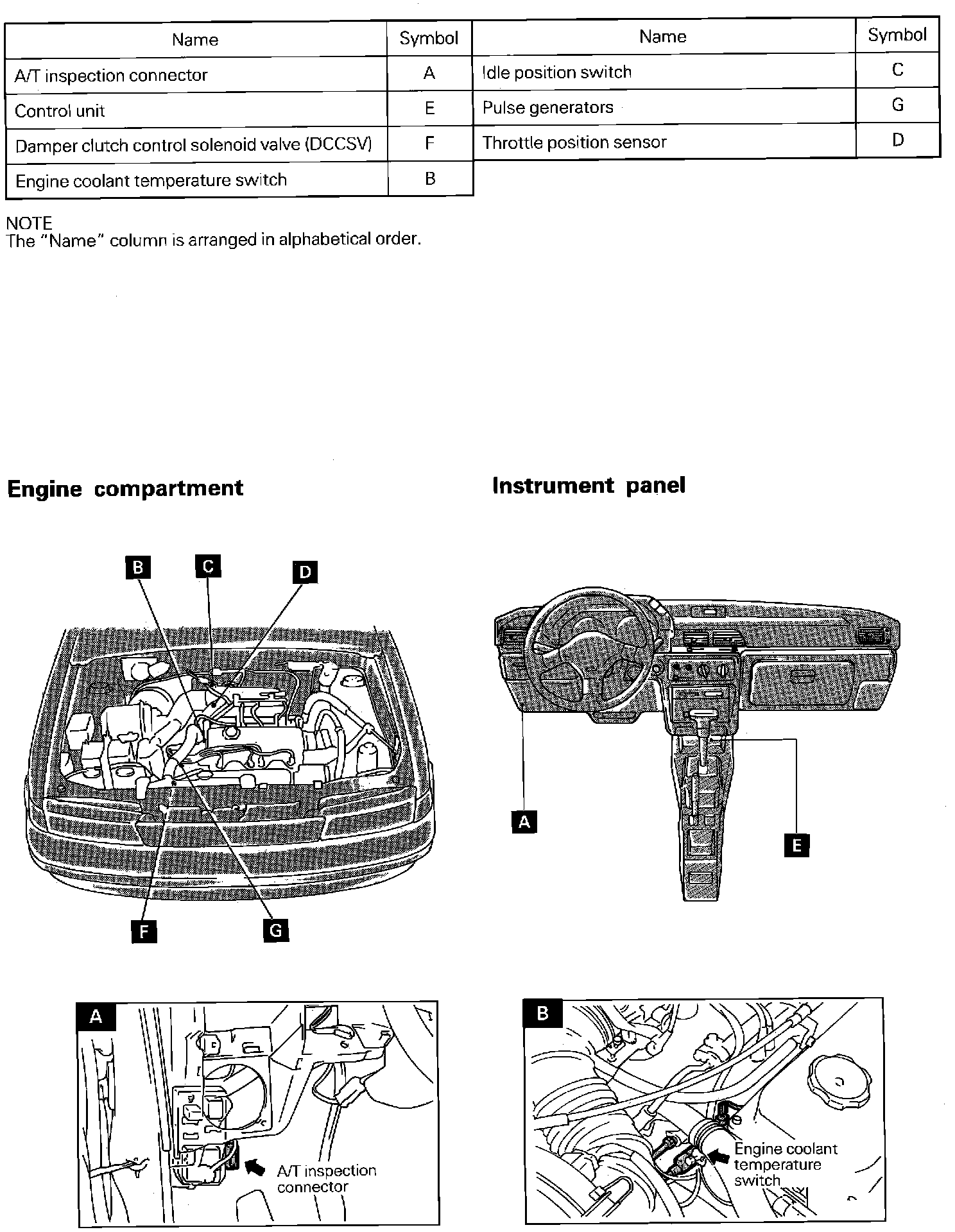

Component/Relay/Switch Locations (Automatic Transaxle, 3-Speed):

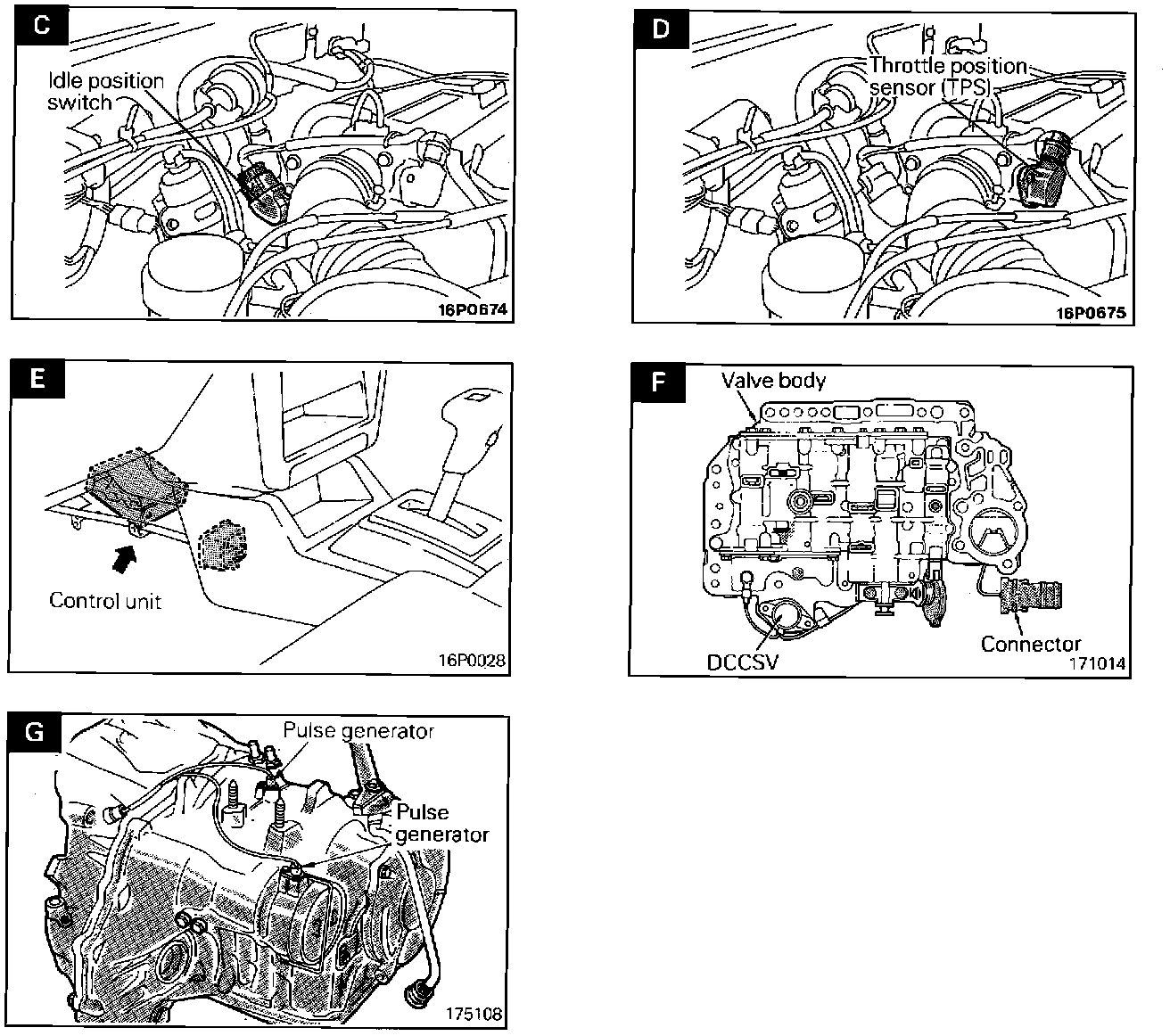

Component/Relay/Switch Locations (Automatic Transaxle, 3-Speed):
