Transmission Control Systems: Locations

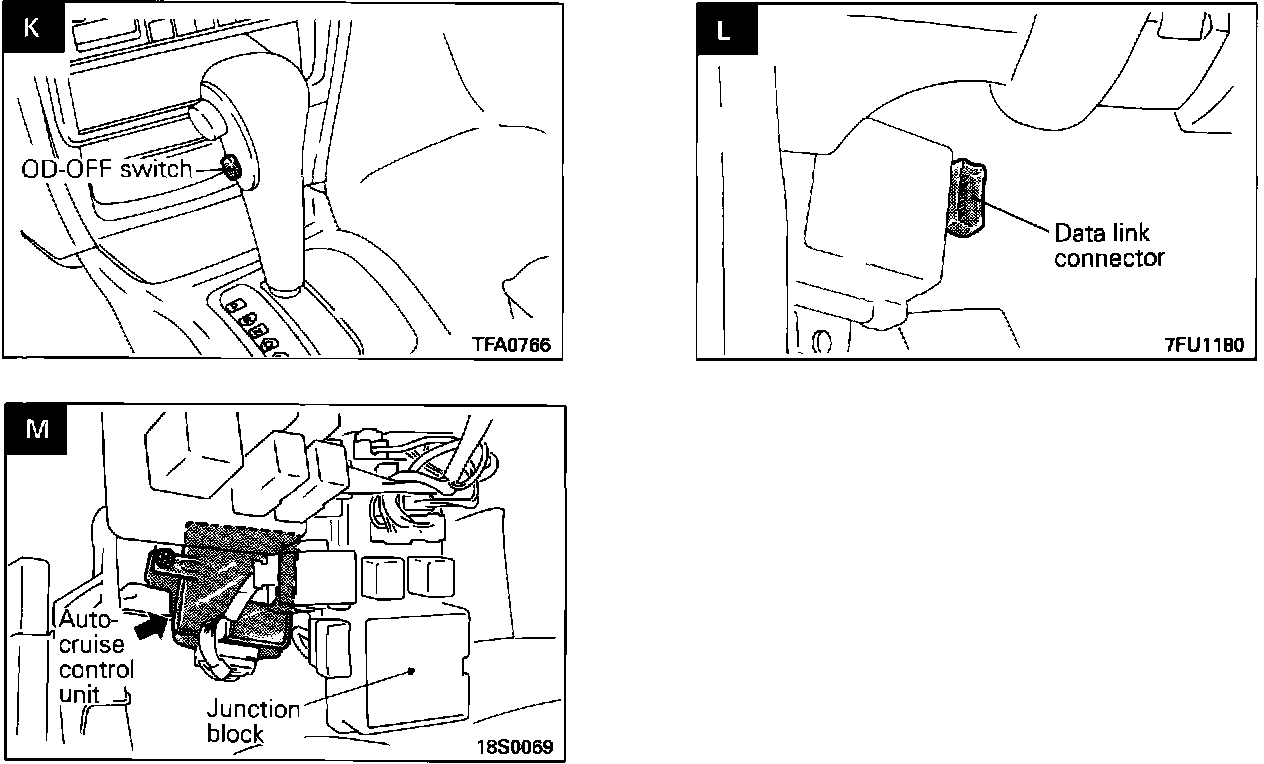

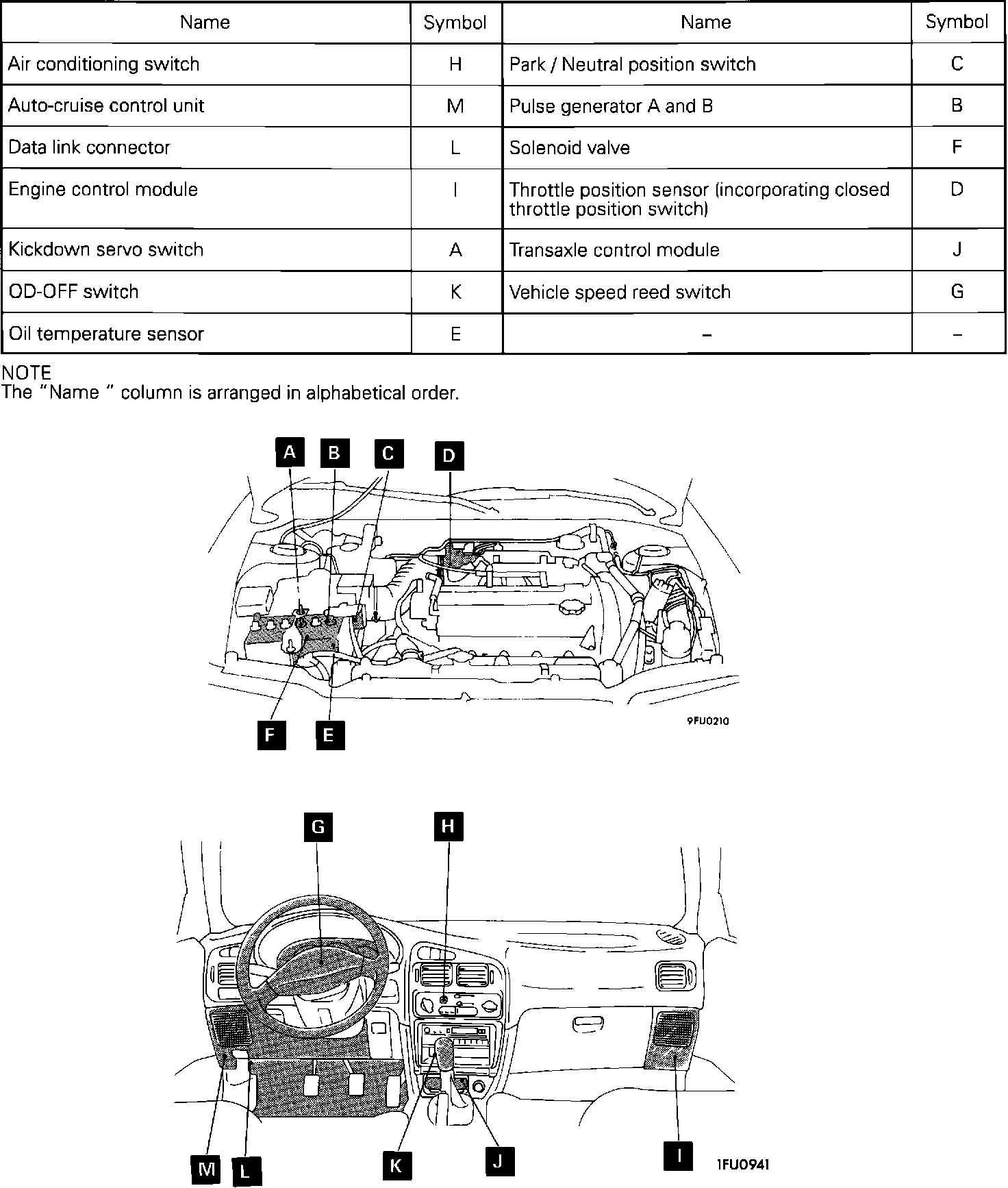

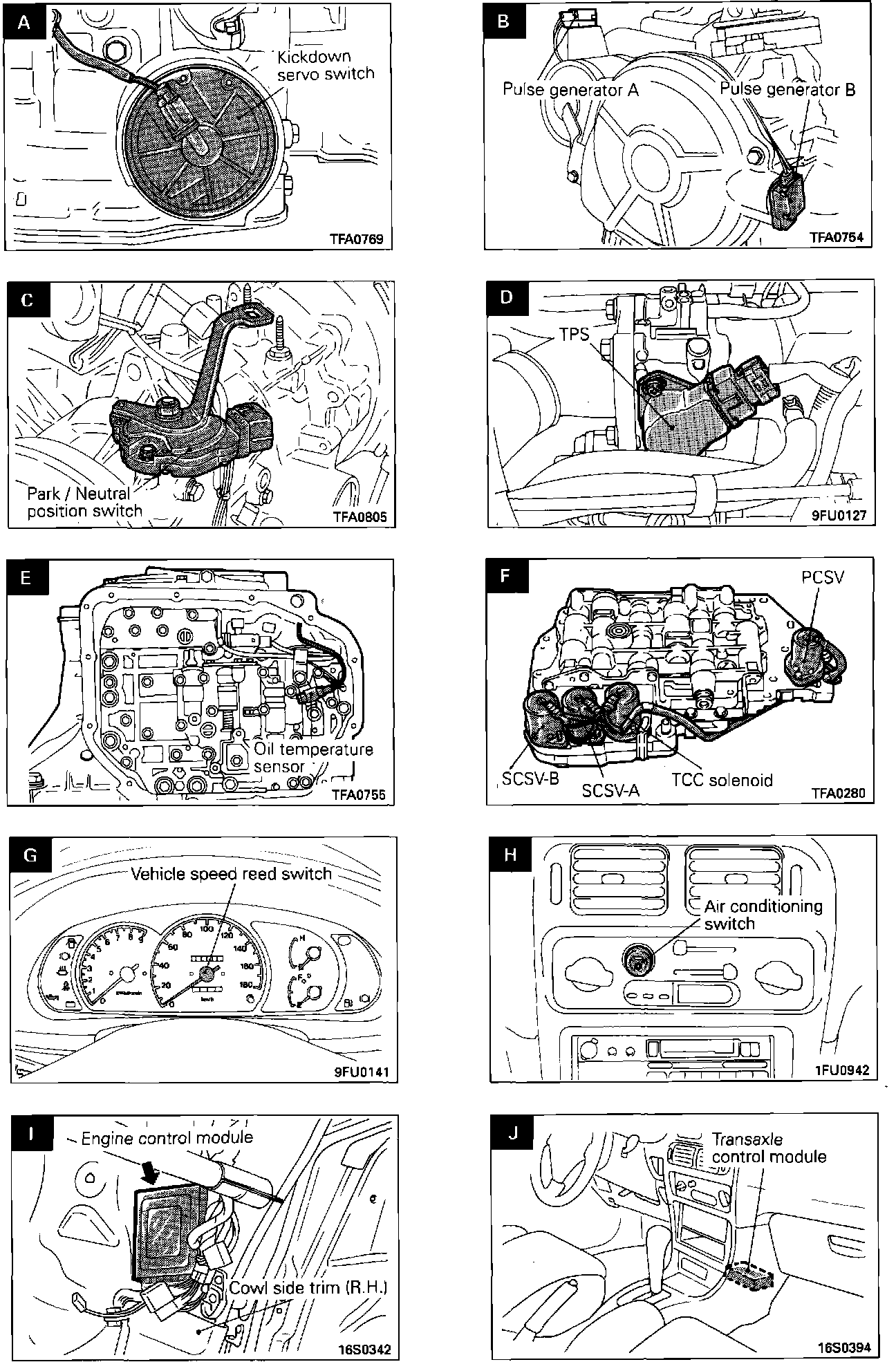

Automatic Transaxle (4-Speed): Component Location:

Automatic Transaxle (4-Speed): Component Location:

Automatic Transaxle (4-Speed): Component Location:

4 Speed Automatic Trans Controls:

4 Speed Automatic Trans Controls:

4 Speed Automatic Trans Controls:
