Toe-In

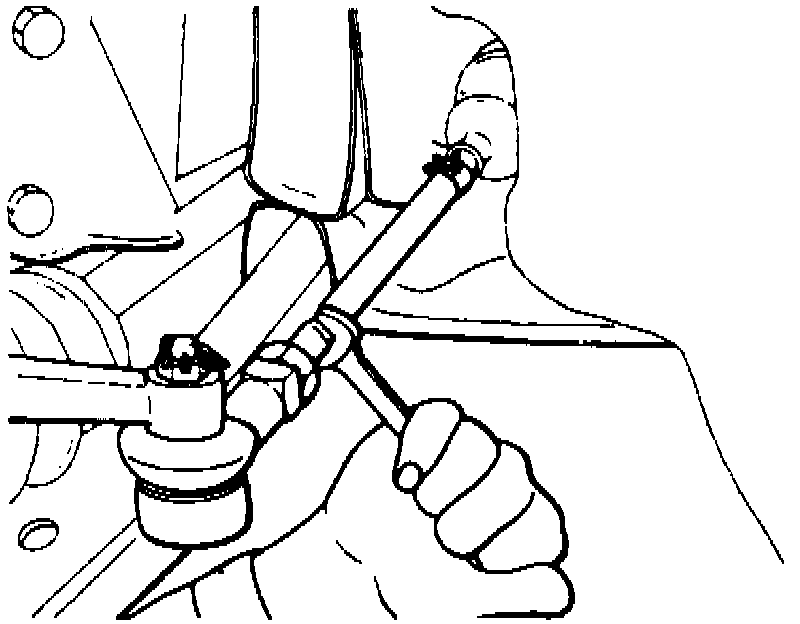

Fig. 1 Front Toe-In Adjustment:

1. Adjust toe-in by undoing clips and turning left and right tie rod turnbuckles by same amount in opposite directions, Fig. 1.
2. To increase toe-out, turn left turnbuckle toward front of vehicle and right turnbuckle toward rear of vehicle. To increase toe-in, turn turnbuckles in other direction. Toe-in is adjusted 0.24 inch for each half turn of left and right tie rods.
3. After adjusting toe-in, check that steering wheel turning angle is within specification.
