Home >> Mitsubishi >> 1994 >> Galant L4-2350cc 2.4L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Diagrams >> Electrical Diagrams

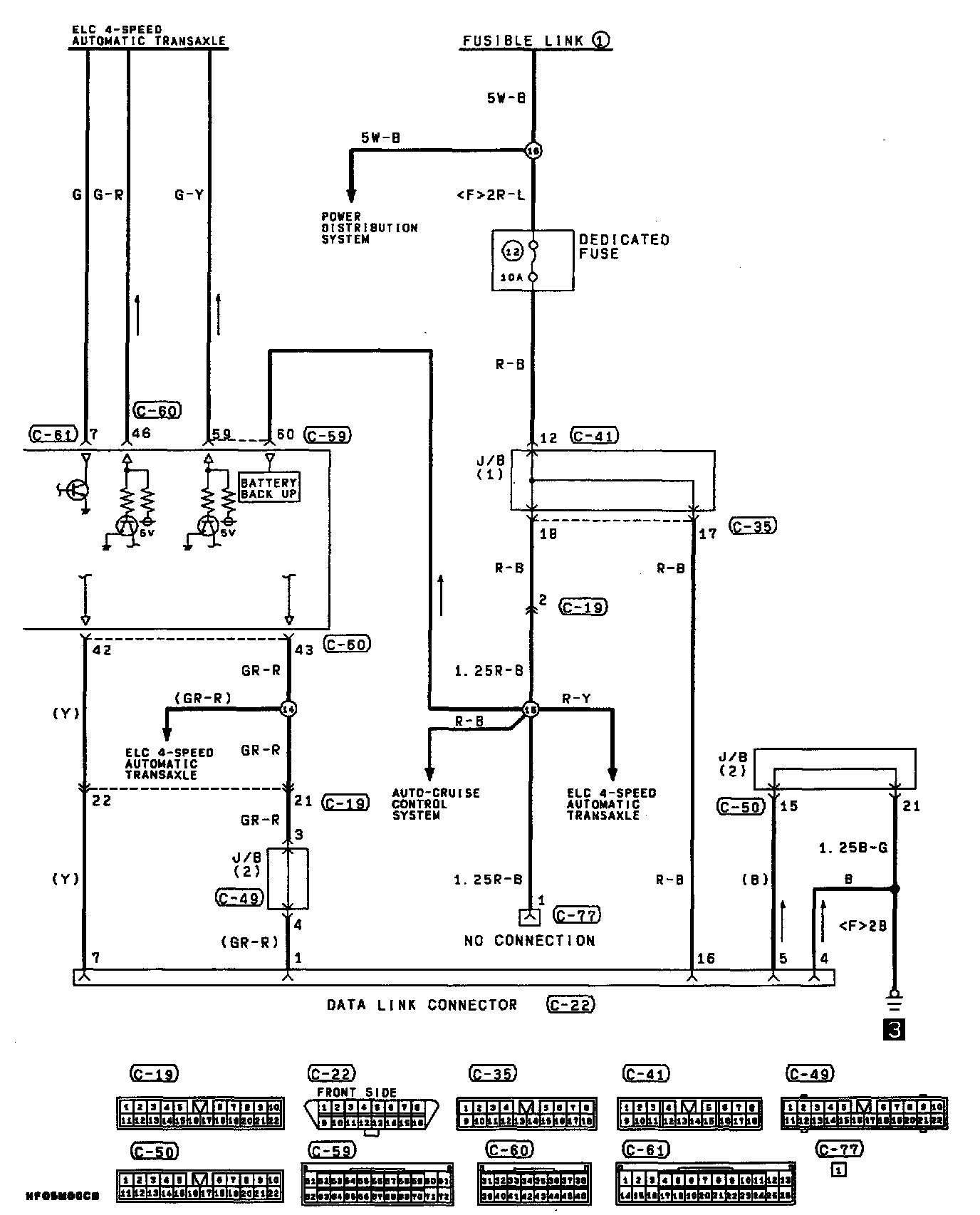

Electrical Diagrams

Part 6 Of 6:
